Features:
Pressure Range 0 to 60 MPa
Construction Stainless Steel Case & Internals, Full Safety Pattern
Function Bar, kPa or MPa
Connection 1/2" NPT Bottom Entry
Design Screw on Bezel

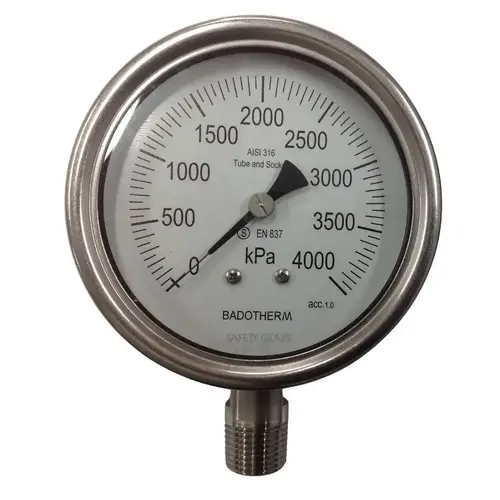

The Safety Patern Series of gauges from Badotherm are designed to withstand the severest of operating conditions created by the ambient environment and the process medium. Designed to highest classes of EN837-1 / 9.7.2 & ANSI B 40.1 for overpressure protection and safety. This all Stainless Steel Pressure Gauge features a solid front baffle wall and a full blow-out back. Typical applications for this gauge are applications in the chemical, petro-chemical, oil & gas industry and where safety is a high priority. These gauges comes with a standard degree of protection of IP65.
The 100mm dial plate is made from a white UV resistant coated aluminium with an internal limit stop fitted on the movement to prevent in the case of an overpressure the pointer from re-entering the scale (engages at approx 130% of full scale). With it's dry case, this gauge is limited to -40°C ~ +60°C for Ambient Conditions and -40°C ~ +200°C for media. Connection is made via the 1/2" NPT threaded process connection on the gauge. Pressure scales of Bar, kPa & MPa are available covering a range from 0~100 kPa to 0~60 MPa. This Gauge can be fitted with a Diaphragm Seal to isolate the gauge from the media whilst still giving an accurate pressure reading.

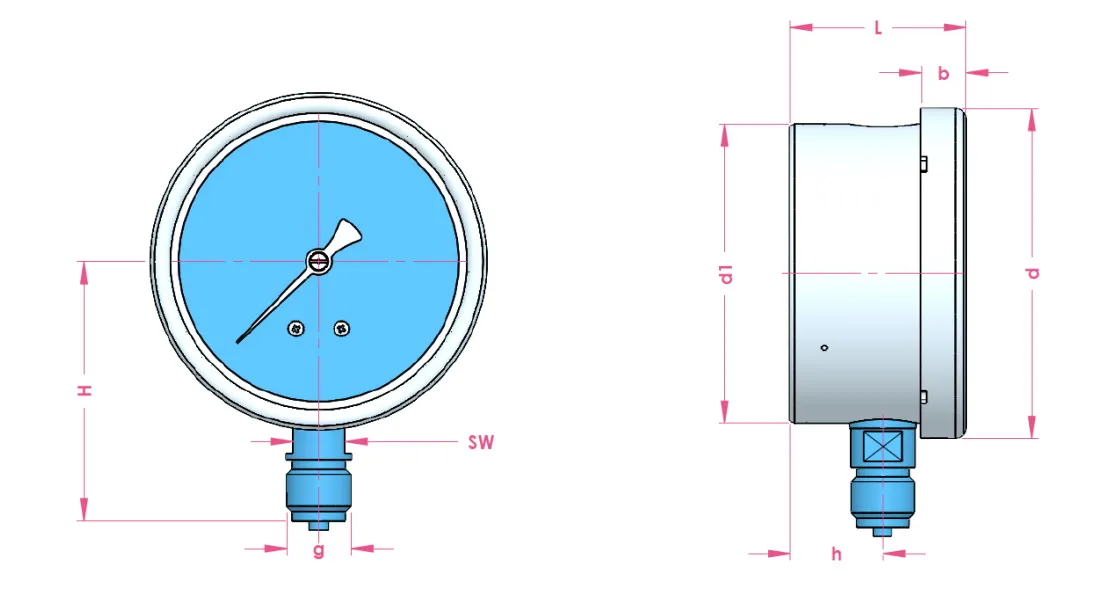

Item | d | d1 | b | L | h | g | SW | H | Weight |
---|---|---|---|---|---|---|---|---|---|
Dimension | 110 | 100 | 15 | 63 | 34.5 | 1/2" NPT | 17 | 85 | 0.5 kg |
Item | Material |
---|---|
Case | AISI 304 |
Bezel | AISI 304 |
Connection1 | AISI 316 |
Sensing Element1 | TP316 |
Movement | Stainless Steel |
Pointer | Aluminium |
Dial | Aluminium |
Window Gasket | NBR |
Blow Out | AISI 304 with NBR compensation |
Fill Plug | NBR |
Window Gasket | Laminated Safety Glass |
*1 refers to the wetted materials
