SKU: SC-N14.5

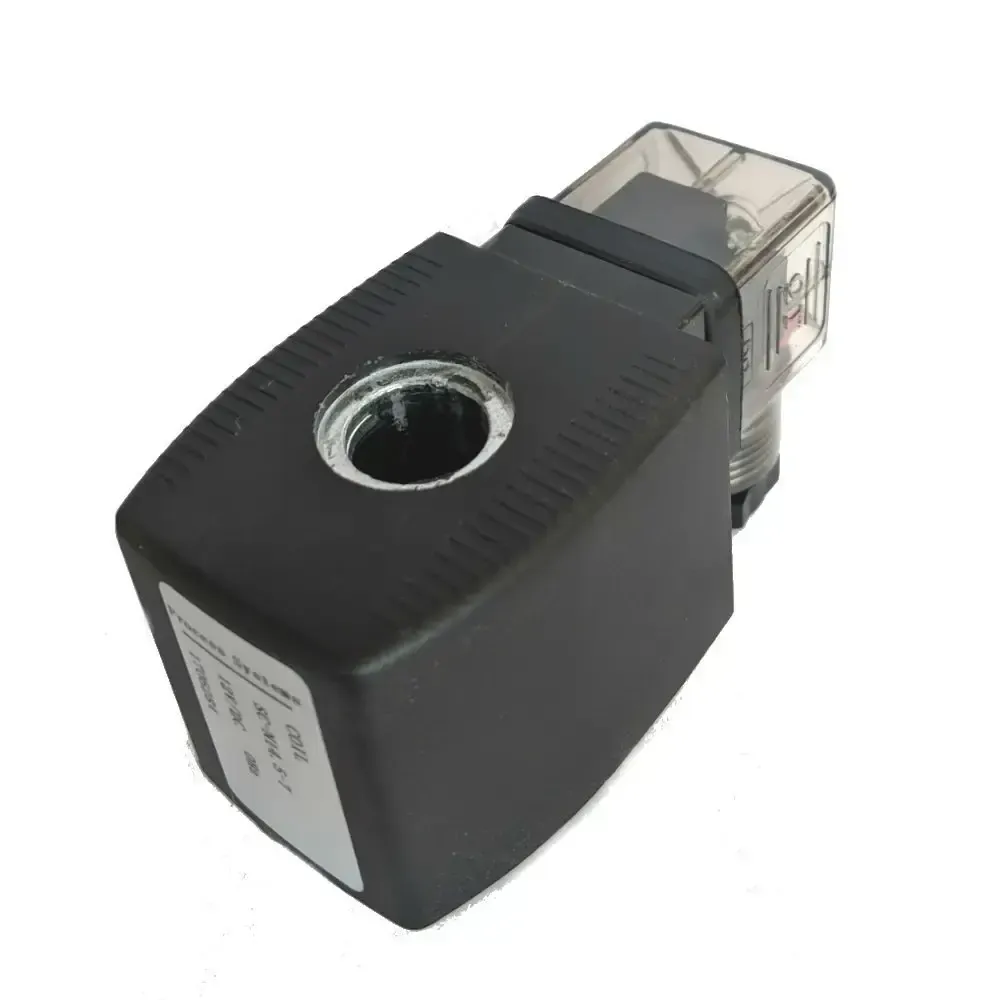

14.5mm Solenoid Coil

From $55.00

Inc GST
In Stock
Make an Enquiry

Class H closed wound insulation which results in a maximum operating temperature of 180°C and max ambient temperature of 50°C.

Model Voltage Resistance (Ω) Amps Power Operating Temperature (℃)
SC-N14.5 DC12V 7.65 1.490 18W 85
DC24V 30 0.780 18.5W 85
AC24V 4.95 0.710 17VA 80
AC110V 118 0.155 17VA 80
AC240V 400 0.105 25VA 75





12mm Solenoid Valve Coil

Dimension Measurement (mm)
Shaft Diameter (Ø) 14.5
Height (H) 40
Width (B) 43
Length to Centre (L1) 25
Length Overall (L2) 59

Operator Size 14.5mm
Watts 18
Volt Amps 20
Voltage All
Insulation Class H

Rating IP65

.
.
