SKU: ICS3

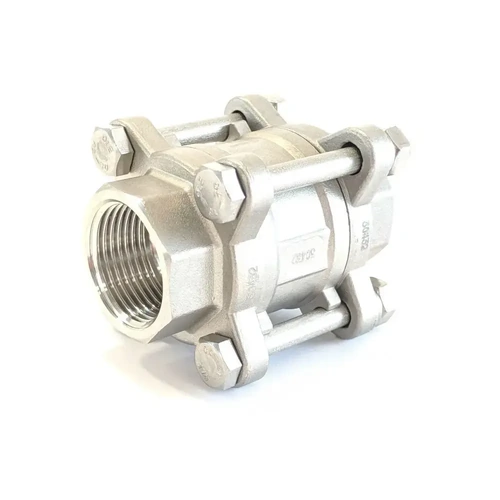

3 piece Stainless Steel Check Valve

From $44.00

Inc GST
In Stock
Make an Enquiry
  • BSP Threaded in line 316 Stainless Steel 3 piece Check Valve
  • Metal to Metal Seat
  • 0 to 63 Bar Pressure Range
  • -20°C to 180°C temperature range
  • Installed in any orientation
Model Size (BSP) DN Pressure Range Temperature Weight (KG) CV Cracking Pressure (kPa)
ICS3-04 1/2" 15 0 to 63 BAR -20°C to 180°C 0.37 13 4 ~ 6
ICS3-05 3/4" 20 0 to 63 BAR -20°C to 180°C 0.69 32 3 ~ 5
ICS3-06 1" 25 0 to 63 BAR -20°C to 180°C 0.75 67 3 ~ 5
ICS3-07 1 1/4" 32 0 to 63 BAR -20°C to 180°C 1.15 115 2.8 ~ 3.5
ICS3-08 1 1/2" 40 0 to 63 BAR -20°C to 180°C 1.51 183 2.5 ~ 3.5
ICS3-09 2" 50 0 to 63 BAR -20°C to 180°C 2.23 365 2.5 ~ 3

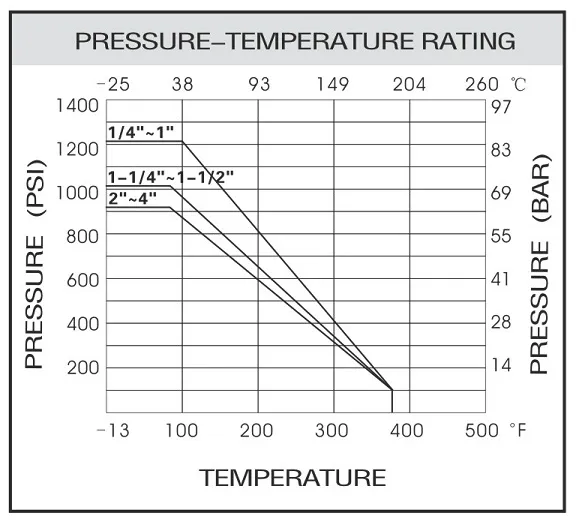

3 piece inline check valve temperature vs temperature

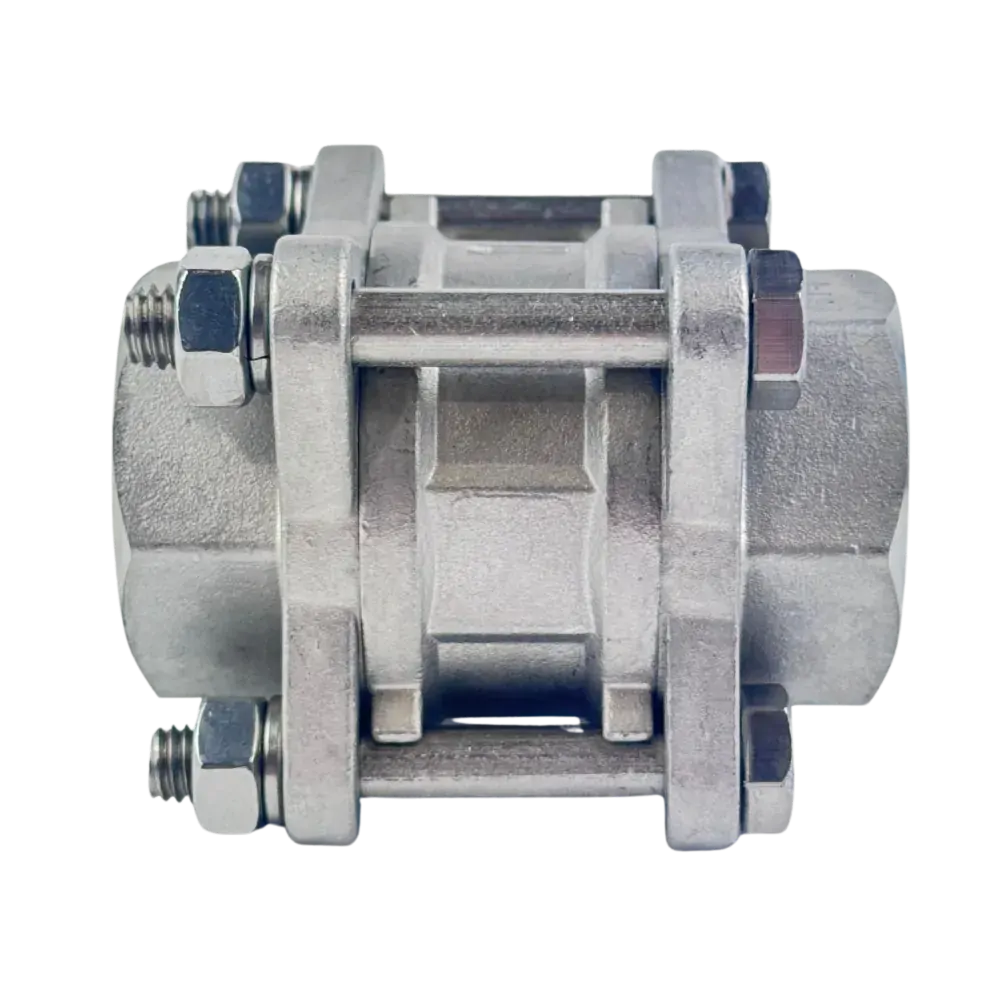

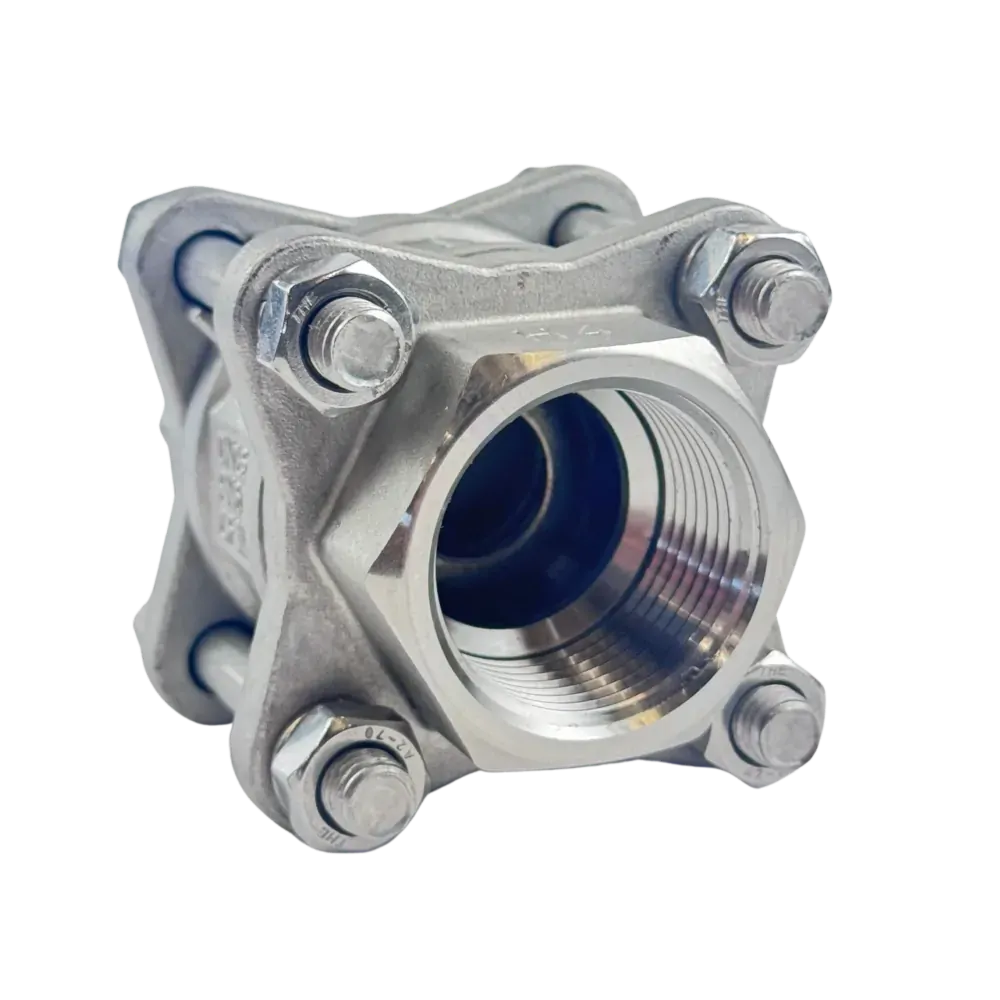

3 piece in line stainless steel check valve

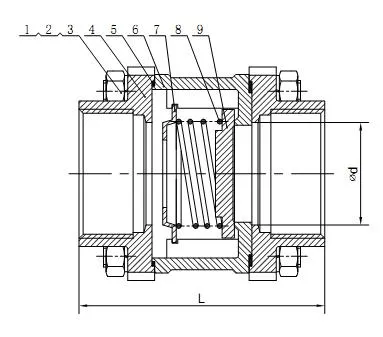

Model Size DN d L CV
ICS3-04 1/2" 15 14 56.5 13
ICS3-05 3/4" 20 18.5 77 32
ICS3-06 1" 25 24 74 67
ICS3-07 1 1/4" 32 32 83 115
ICS3-08 1 1/2" 40 38 92 183
ICS3-09 2" 50 49 110 365

3 piece in line stainless steel check valve

Number Part Material
1 Bolt 304 SS
2 Spring Washer 304SS
3 Nut 304SS
4 Cap ASTM A351 CF8M
5 Gasket PTFE
6 Body ASTM A351 CF8M
7 Insert ASTM A276 304
8 Spring ASTM A276 304
9 Disc ASTM A351 CF8M

Size 1/2" to 2" BSP
Body 3 piece 316 Stainless Steel
Seat Metal
Pressure Range 0 to 63 BAR
Temperature -20°C to 180°C
