SKU: PBL32

3 Way 2 position Palm Button Latching Valve

From $66.00

Inc GST
In Stock
Make an Enquiry

This 3 way 2 position palm button latching valve is also commonly known as an emergency stop or e stop valve. This is because when it is pressed down it will remain there until it is twisted to be released. This is ideal for situations where you want the valve to stay in that position when pressed until the user resets it.

3 way 2 position palm button spring valve

Specification PBL32-01 PBL32-02
Port Size G1/8” G1/4”
Button Colour Red Red
Pressure Range 0 to 10 BAR (147 psi)
Max Inlet Pressure 10 BAR (147 psi)
Medium Temperature -5 to 60°C
Body Die Cast Aluminium
End Caps Reinforced Plastic
Button Thermoplastic
Lubrication Not Required
Applicable Medium Air

1/8" 3 way 2 position palm latching valve1/4" 3 way 2 position palm latching valve

Size 1/8" to 1/4" BSP
Function 3 way 2 position palm button latching
Body Aluminium
Pressure Range 0 to 10 BAR
Media Air

PBL32

3 Way 2 position Palm Button Latching Valve

Features:

Size 1/8" to 1/4" BSP
Function 3 way 2 position palm button latching
Body Aluminium
Pressure Range 0 to 10 BAR
Media Air

Description:

This 3 way 2 position palm button latching valve is also commonly known as an emergency stop or e stop valve. This is because when it is pressed down it will remain there until it is twisted to be released. This is ideal for situations where you want the valve to stay in that position when pressed until the user resets it.

3 way 2 position palm button spring valve

Specification PBL32-01 PBL32-02
Port Size G1/8” G1/4”
Button Colour Red Red
Pressure Range 0 to 10 BAR (147 psi)
Max Inlet Pressure 10 BAR (147 psi)
Medium Temperature -5 to 60°C
Body Die Cast Aluminium
End Caps Reinforced Plastic
Button Thermoplastic
Lubrication Not Required
Applicable Medium Air
.

3 Way 2 position Palm Button Latching Valve

PBL32

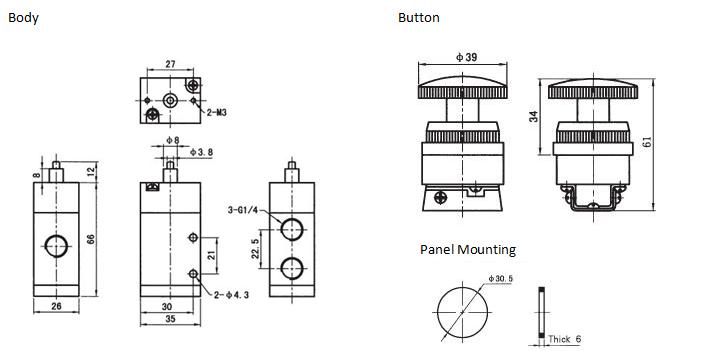

Dimensions:

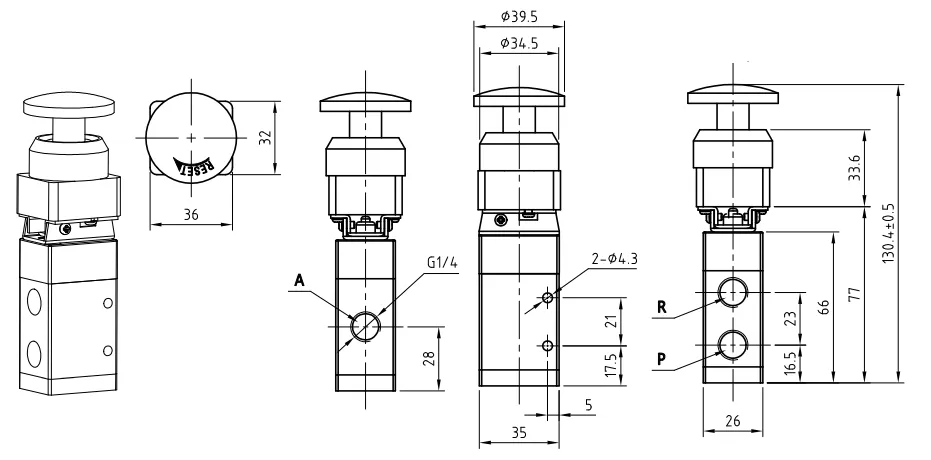

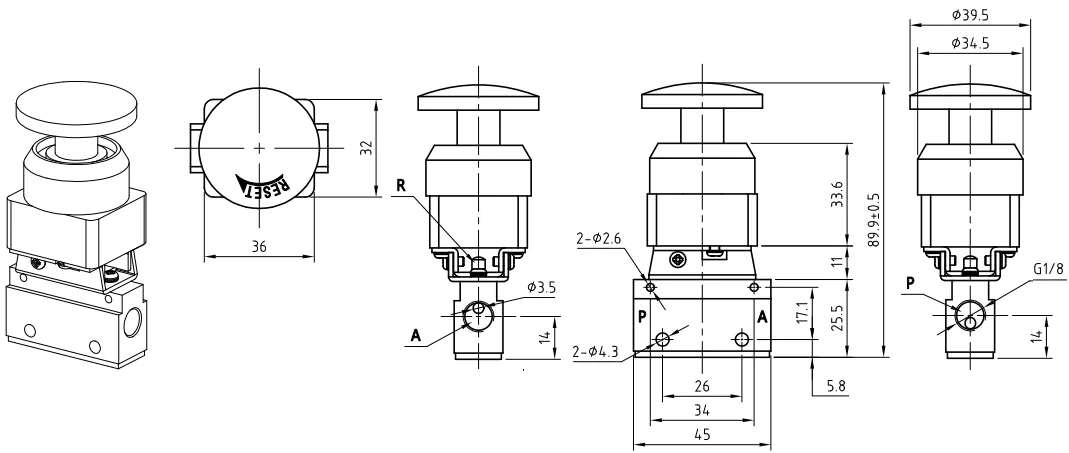

1/8" 3 way 2 position palm latching valve1/4" 3 way 2 position palm latching valve
