SKU: PBS32

3 Way 2 position Palm Button Spring Return Valve

From $27.50

Inc GST
In Stock
Make an Enquiry

This 3 way 2 position palm button spring return valve is operated by pushing down on the conical button on the top (it is wide so it can be pressed by the user's palm). When it is released it will spring back to its original position.

3 way 2 position palm button spring return valve

Specification PBS32-01-B PBS32-01-G PBS32-01-R PBS32-02-B PBS32-02-G PBS32-02-R
Port Size G1/8” G1/8” G1/8” G1/4” G1/4” G1/4”
Button Colour Black Green Red Black Green Red
Pressure Range 0 to 10 BAR (147 psi)
Max Inlet Pressure 10 BAR (147 psi)
Medium Temperature -5 to 60°C
Body Die Cast Aluminium
Button Thermoplastic
Lubrication Not Required
Applicable Medium Air

3 way 2 position palm button spring return valve

Size 1/8" to 1/4" BSP
Function 3 way 2 position palm button
Body Aluminium
Pressure Range 0 to 10 BAR
Media Air

PBS32

3 Way 2 position Palm Button Spring Return Valve

Features:

Size 1/8" to 1/4" BSP
Function 3 way 2 position palm button
Body Aluminium
Pressure Range 0 to 10 BAR
Media Air

Description:

This 3 way 2 position palm button spring return valve is operated by pushing down on the conical button on the top (it is wide so it can be pressed by the user's palm). When it is released it will spring back to its original position.

3 way 2 position palm button spring return valve

Specification PBS32-01-B PBS32-01-G PBS32-01-R PBS32-02-B PBS32-02-G PBS32-02-R
Port Size G1/8” G1/8” G1/8” G1/4” G1/4” G1/4”
Button Colour Black Green Red Black Green Red
Pressure Range 0 to 10 BAR (147 psi)
Max Inlet Pressure 10 BAR (147 psi)
Medium Temperature -5 to 60°C
Body Die Cast Aluminium
Button Thermoplastic
Lubrication Not Required
Applicable Medium Air
.

3 Way 2 position Palm Button Spring Return Valve

PBS32

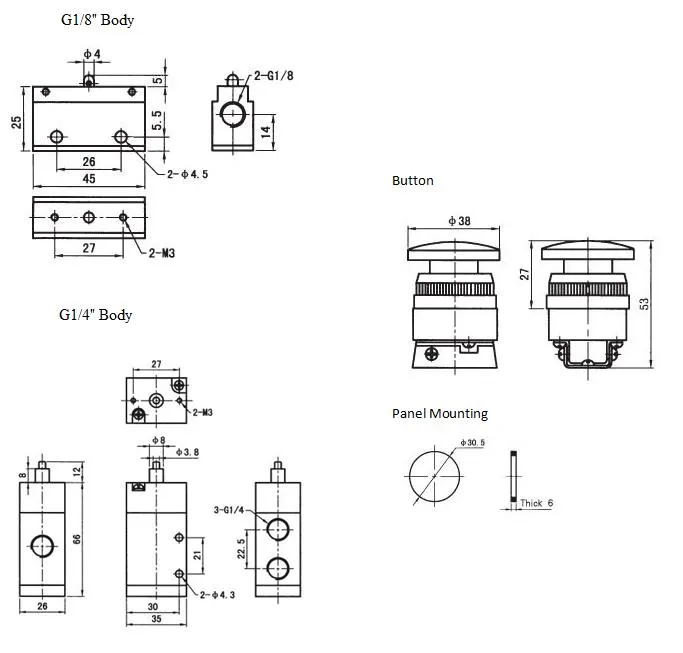

Dimensions:

3 way 2 position palm button spring return valve
