SKU: TOG32

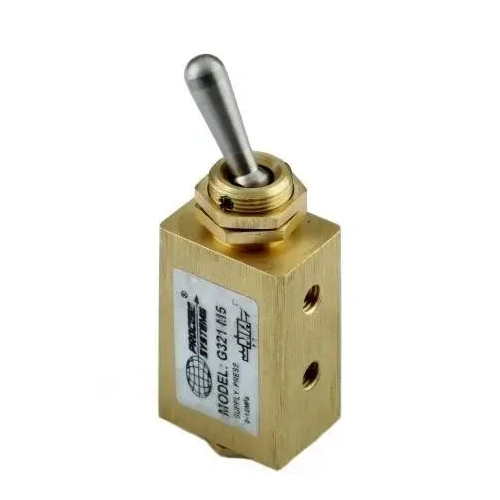

3 Way 2 Position Toggle Valve

From $19.25

Inc GST
In Stock
Make an Enquiry

Three way two position toggle valve. These are operated by switching the toggle to one side which it will stay until it is switched back. Very common for operating pilot valves or spring return actuators/air rams.

Specification TOG32-M5 TOG32-01
Port Size M5 1/8" BSP
Pressure Range 0 to 10 BAR 0 to 10 BAR
Max Inlet Pressure 10 BAR 10 BAR
Medium Temperature 10 to 60°C 10 to 60°C
Body Brass Aluminium
Lubrication Not Required Not Required
Applicable Medium Air Air



M5 1/8" BSP

Size M5 to 1/8" BSP
Function 3 way 2 position toggle
Body Brass
Pressure Range 0 to 10 BAR
Media Air
