SKU: BASM3

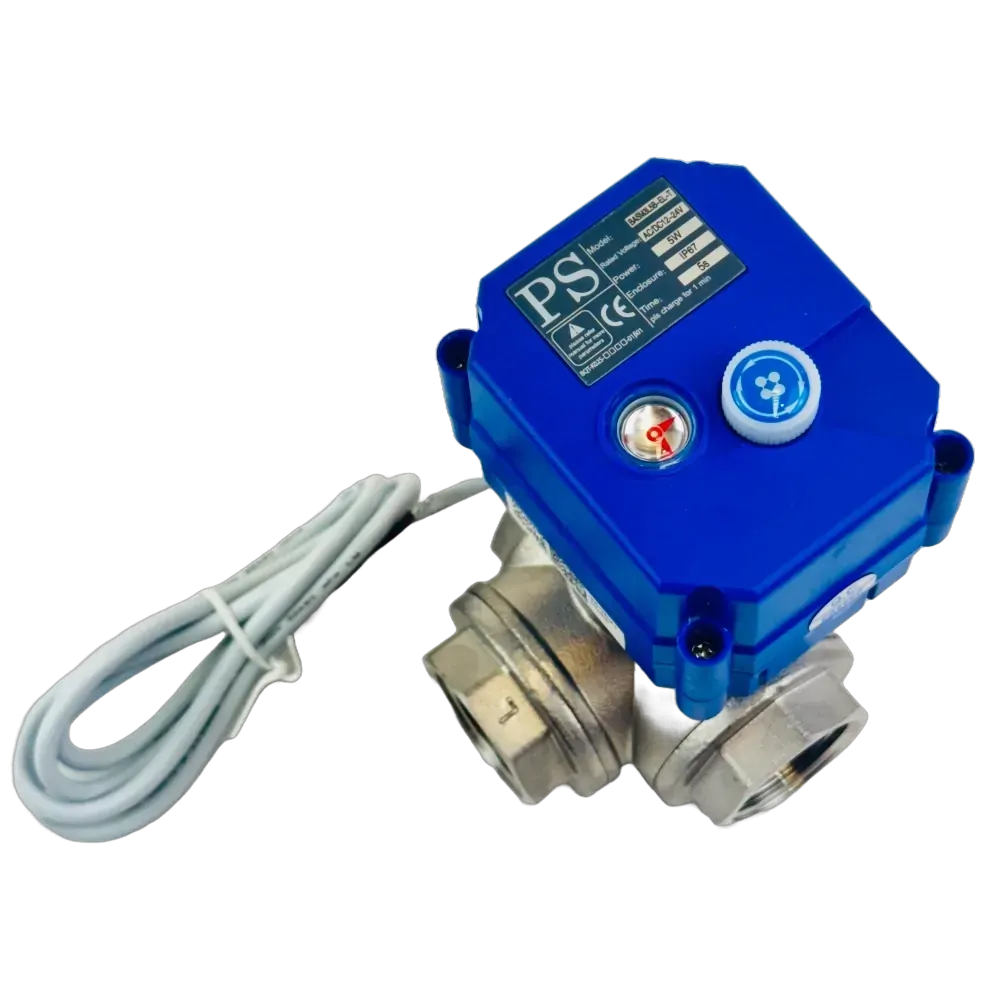

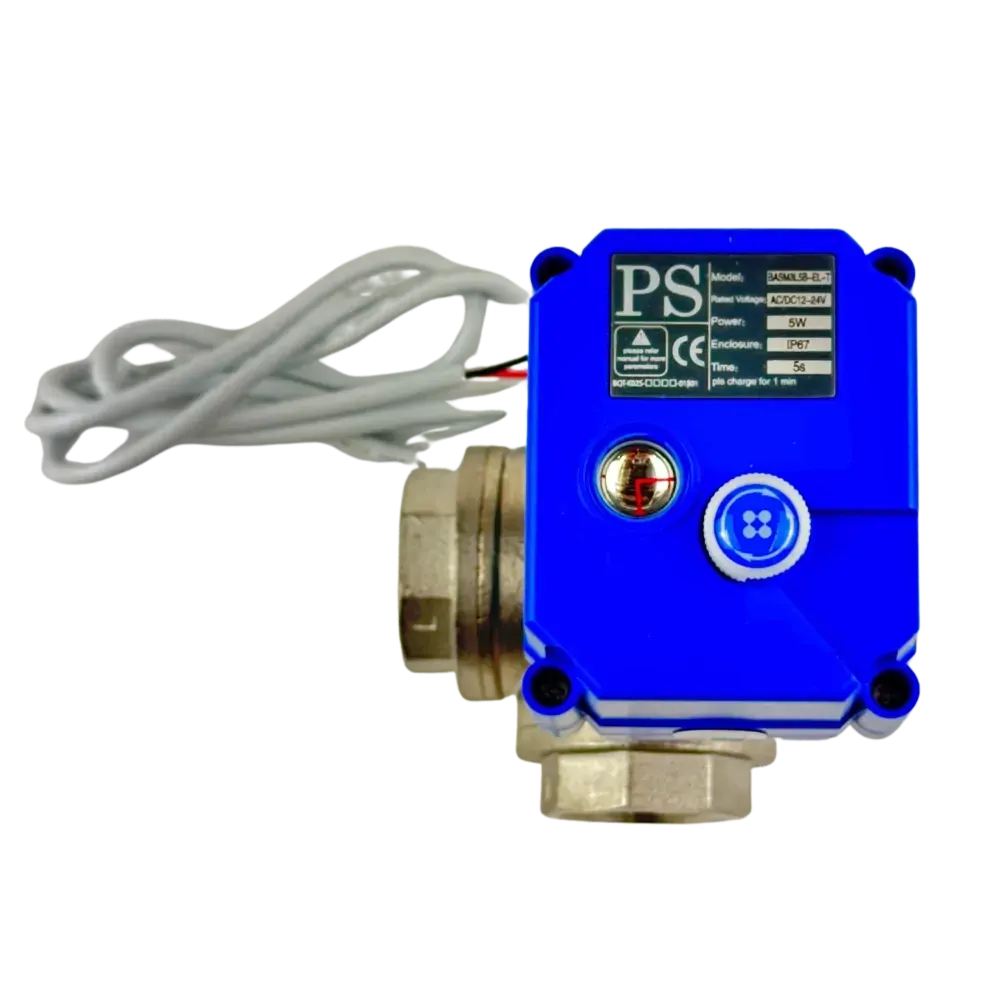

3 Way Auto Return Electric Ball Valve

From $253.00

Inc GST
In Stock
Make an Enquiry
  • Three way Stainless Steel Capacitor Return Ball Valve
  • L port configuration
  • Automatically return to original position when power is removed
  • Capacitor needs approximately 30 seconds to charge
  • IP67
  • Two wire operation
Model Size (BSP) Size (mm) Media Pressure Media Temperature
BASM3L4B-EL-T 1/2" 12 0 to 10 Bar 2°C to 90°C
BASM3L5B-EL-T 3/4" 15 0 to 10 Bar 2°C to 90°C

Body Material 316 S.S
Ball Material 316 S.S
Seat Material PTFE with Viton O’Ring
Enclosure Thermoplastic IP65
Current 5 Watt Max (45 ~ 100 mA)
Current Draw at rest (open or close position) 20 Milli Amp
Capacitor Charge Time 60 Seconds
Open/Close Time 5 Seconds
Mounting Any Attitude

3 way capacitor return electric ball valve dimensions

DN D1/D2 d L1/L2 L3 L4/L5/L6 L H1 H2 F Weight (kg)
15 G1/2” 12 33.5 54.5 15 67 20.3 21.25 27 0.37
20 G3/4” 15 38.5 64 15 77 20.3 23.25 31 0.52

All dimensions in mm unless shown otherwise.



Part Material
Actuator Housing ABS
Valve Body 316 Stainless Steel
Valve Ball 316 Stainless Steel
Stem 403 Stainless Steel
Seat PTFE
Seal Viton

Size 1/2" to 3/4" BSP
Body 316 Stainless Steel
Seat PTFE
Pressure  10 BAR
Temperature 0°C to 90°C
Actuation Capacitor Return Low voltage
