SKU: BLS3E

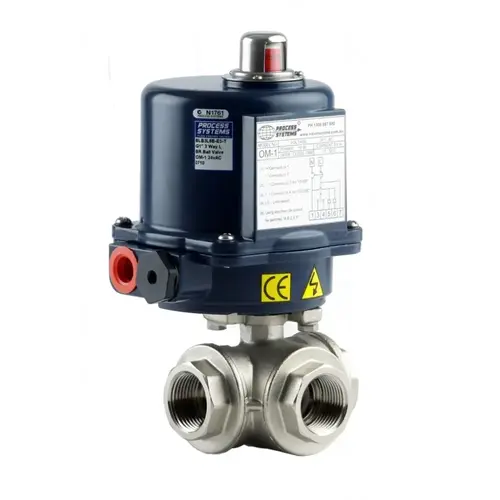

3 Way Stainless Steel Electric Ball Valve

From $616.00

Inc GST
In Stock
Make an Enquiry
  • 3 way 316 Stainless Steel Ball Valve with Electric Actuator
  • Available in L or T Port configurations
  • Live Loaded Packings, FKM Stem Seal, Belleville washers & Reinforced PTFE seats
  • IP67 Electric Actuator with extra limit swithces & visual indicator
  • BSP Threaded Female Ends to ISO7.1
  • Watermark Approved License Number WMK26529 to WMTS 012:2018
  • Extended neck to reduce Thermal Transfer
Model Size(BSP) Orifice (mm) Actuator Media Pressure Media Temperature
BLS3L2B-E*-RT 1/4 8 0M-1 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C
BLS3L3B-E*-RT 3/8 10 0M-1 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C
BLS3L4B-E*-RT 1/2 12 0M-1 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C
BLS3L5B-E*-RT 3/4 15 0M-1 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C
BLS3L6B-E*-RT 1 20 0M-1 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C
BLS3L7B-E*-RT 1 1/4 25 0M-1 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C
BLS3L8B-E*-RT 1 ½ 32 0M-A Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C
BLS3L9B-E*-RT 2 43 0M-2 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C
BLS3L10B-E*-RT 2 ½ 55 0M-2 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C
BLS3L11B-E*-RT 3 66 0M-3 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC.

 For T port change the ‘L’ to a ‘T’.

3 way stainless steel ball valve electrically actuated

3 way Stainless Steel Electric Ball Valve Pressure vs Temperature

L Port T Port

3 way stainless steel ball valve electrically actuated

Model Size Actuator d L h F A B C
BLS3L2B-E*-RT 1/4" 0M-1 9.5 75 36.8 37.5 5.5 108 155
BLS3L3B-E*-RT 3/8" 0M-1 11 75 36.8 37.5 57.5 108 155
BLS3L4B-E*-RT 1/2" 0M-1 12 75 36.8 37.5 57.5 108 155
BLS3L5B-E*-RT 3/4" 0M-1 15 85 41.2 42.5 65.5 108 155
BLS3L6B-E*-RT 1" 0M-1 20 100 46.5 50 79 108 155
BLS3L7B-E*-RT 1-1/4" 0M-1 25 122 56 61 97 108 155
BLS3L8B-E*-RT 1-1/2" 0M-A 32 131 60 65.5 106.5 130 200
BLS3L9B-E*-RT 2" 0M-2 40 158 70.5 79 129 200 290
BLS3L10B-E*-RT 2-1/2" 0M-2 49 178 95.5 89 145 200 290
BLS3L11B-E*-RT 3" 0M-3 60 202 106 101 167 200 290

All dimensions in mm unless shown otherwise. Please note 0M-2 models and higher have a hand wheel not taken into account here. Please see actuator details.

3 way stainless steel ball valve electrically actuated

Item Part Material Qty
1 Cap CF8M 3
2 Gasket PTFE 3
3 Ball Seat 15%R-PTFE 4
4 Ball 316SS 1
5 Body CF8M 1
6 Stem 316SS 1
7 Thrust Washer PTFE 1
8 O-Ring Viton 1
9 Stem Packing PTFE 1
10 Stem Ring 316SS 1
11 Bellevlle Washer 304(301) 1
12 Nut 304SS 2
13 Plate Washer 304SS 1
14 Nut Stopper 304SS 1
15 Actuator Powder Coated Die Cast Aluminium 1

Size 1/4" to 3" BSP
Body 316 Stainless Steel
Seat Reinfoced PTFE
Pressure  63 BAR
Temperature -20°C to 180°C
Actuation Electric

BLS3E

3 Way Stainless Steel Electric Ball Valve

Features:

Size 1/4" to 3" BSP
Body 316 Stainless Steel
Seat Reinfoced PTFE
Pressure  63 BAR
Temperature -20°C to 180°C
Actuation Electric

Description:

  • 3 way 316 Stainless Steel Ball Valve with Electric Actuator
  • Available in L or T Port configurations
  • Live Loaded Packings, FKM Stem Seal, Belleville washers & Reinforced PTFE seats
  • IP67 Electric Actuator with extra limit swithces & visual indicator
  • BSP Threaded Female Ends to ISO7.1
  • Watermark Approved License Number WMK26529 to WMTS 012:2018
  • Extended neck to reduce Thermal Transfer
Model Size(BSP) Orifice (mm) Actuator Media Pressure Media Temperature
BLS3L2B-E*-RT 1/4 8 0M-1 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C
BLS3L3B-E*-RT 3/8 10 0M-1 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C
BLS3L4B-E*-RT 1/2 12 0M-1 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C
BLS3L5B-E*-RT 3/4 15 0M-1 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C
BLS3L6B-E*-RT 1 20 0M-1 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C
BLS3L7B-E*-RT 1 1/4 25 0M-1 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C
BLS3L8B-E*-RT 1 ½ 32 0M-A Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C
BLS3L9B-E*-RT 2 43 0M-2 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C
BLS3L10B-E*-RT 2 ½ 55 0M-2 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C
BLS3L11B-E*-RT 3 66 0M-3 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC.

 For T port change the ‘L’ to a ‘T’.

3 way stainless steel ball valve electrically actuated

3 way Stainless Steel Electric Ball Valve Pressure vs Temperature

L Port T Port
.

3 Way Stainless Steel Electric Ball Valve

BLS3E

Dimensions:

3 way stainless steel ball valve electrically actuated

Model Size Actuator d L h F A B C
BLS3L2B-E*-RT 1/4" 0M-1 9.5 75 36.8 37.5 5.5 108 155
BLS3L3B-E*-RT 3/8" 0M-1 11 75 36.8 37.5 57.5 108 155
BLS3L4B-E*-RT 1/2" 0M-1 12 75 36.8 37.5 57.5 108 155
BLS3L5B-E*-RT 3/4" 0M-1 15 85 41.2 42.5 65.5 108 155
BLS3L6B-E*-RT 1" 0M-1 20 100 46.5 50 79 108 155
BLS3L7B-E*-RT 1-1/4" 0M-1 25 122 56 61 97 108 155
BLS3L8B-E*-RT 1-1/2" 0M-A 32 131 60 65.5 106.5 130 200
BLS3L9B-E*-RT 2" 0M-2 40 158 70.5 79 129 200 290
BLS3L10B-E*-RT 2-1/2" 0M-2 49 178 95.5 89 145 200 290
BLS3L11B-E*-RT 3" 0M-3 60 202 106 101 167 200 290

All dimensions in mm unless shown otherwise. Please note 0M-2 models and higher have a hand wheel not taken into account here. Please see actuator details.

.

3 Way Stainless Steel Electric Ball Valve

BLS3E

Construction:

3 way stainless steel ball valve electrically actuated

Item Part Material Qty
1 Cap CF8M 3
2 Gasket PTFE 3
3 Ball Seat 15%R-PTFE 4
4 Ball 316SS 1
5 Body CF8M 1
6 Stem 316SS 1
7 Thrust Washer PTFE 1
8 O-Ring Viton 1
9 Stem Packing PTFE 1
10 Stem Ring 316SS 1
11 Bellevlle Washer 304(301) 1
12 Nut 304SS 2
13 Plate Washer 304SS 1
14 Nut Stopper 304SS 1
15 Actuator Powder Coated Die Cast Aluminium 1

WARNING

These products are intended for use in industrial applications only. Do not use these products where pressures and temperatures can exceed those listed under ‘Technical Data’ and in our individual ‘Series’ data sheets. Before using these products with fluids other than these specified, for non-industrial applications, life-support systems, or other applications not within published specifications, consult PCIPro Through misuse, age, or malfunction, components used in industrial valve applications can fail in various modes. The system designer is warned to consider the failure modes of all component parts used in industrial valve applications and to provide adequate safeguards to prevent personal injury or damage to equipment in the event of such failure. System designers must provide a warning to the user in the system instructional manual if protection against a failure mode cannot be adequately provided. System designers and end users are cautioned to review specific warnings or specifications found in instruction sheets or labels packed or attached and shipped with the products. Our policy is one of continuous research and development. We therefore reserve the right to amend without notice the specifications given in this document or our individual ‘Series’ data sheets.

WARRANTY INFORMATION

All valve series and other products manufactured or distributed by PCIPro are warranted by PCIPro to be free of defects in material and workmanship for a period of 1 year from the date of purchase or as the manufacturer warrants. PCIPro obligation under this warranty is limited to repair or replacement of the defec1ive product or refund of the purchase price paid solely at the discretion of PCIPro and provided such defective product is returned to PCIPro freight prepaid and upon examination by PCIPro such product is found defective. This warranty shall be void in the event that the product has been subject to misuse, misapplication, improper maintenance, modification or tampering. This warranty is expressed in lieu of all other warranties, expressed or implied from PCIPro representatives or employees. PCIPro reserves the right to change Valve and Brochure specifications without notice.
