SKU: ALS600M2EX

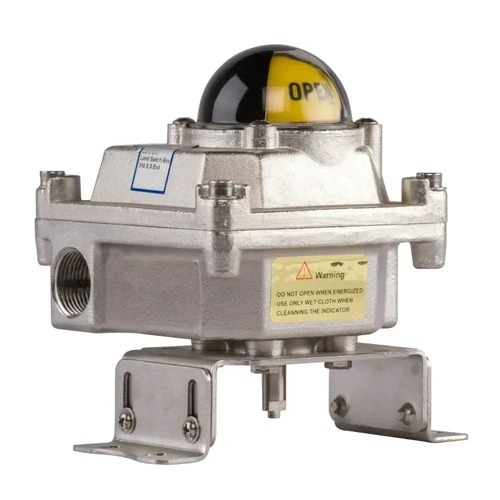

316 SS Limit Switch Box for Pneumatic Actuator IECEx

$1,166.00

Inc GST
In Stock
Make an Enquiry

These limit switch boxes are not only 316 Stianless Steel but also are hazardous area approved. This is ideal for corrosvie hazardous environments where normal limit switch boxes cant be used. They are designed to interface onto the top of pneumatic actuators to give an end of position feedback (open & close). They feature a raised visual feedback dome, two micro switches and two conduit entries.

Enclosure 316 Stainless Steel
O-Rings NBR
Environment IP66
Fasteners Stainless Steel
Shaft Stainless Steel
Conduit Entries Two M20 x 1.5
Terminal Strip Contacts 8

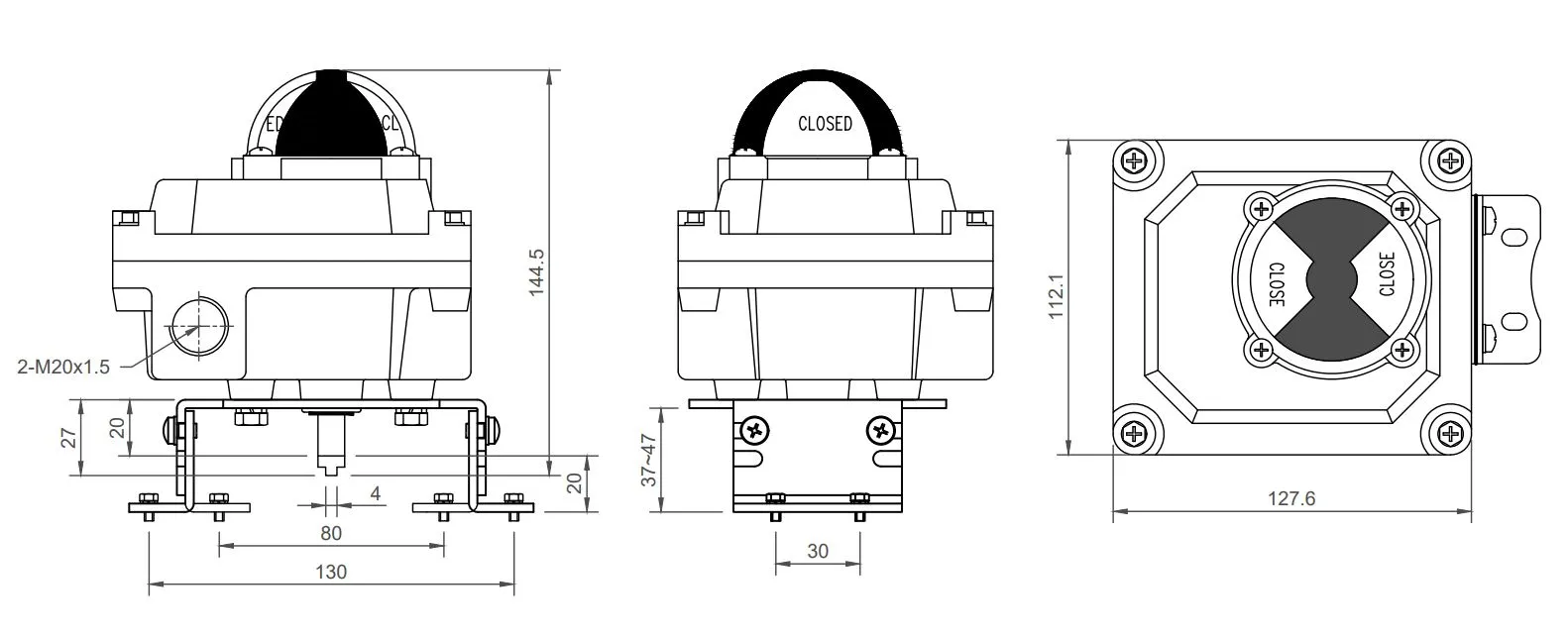

Mounting Bracket MB- 3.4:30 x 80, 130 H:20, 30 carbon steel or 316 SS
Temperature Rating -20°C to 85°C
Operating Voltage Max 15A
Certifications IECEx Cert No. IECEx CQM 12.0047X  (Ex db IIB T4/T6 Gb IP66), NEPSI Cert No. GYB19.2069X (Ex tD A21 IP67 T80°C)

Limit Switch Box for Pneumatic Actuator IECEx

Stainless Steel body limit switch box.
Two M20x1.5 cable entry. High visability dome indicator.
2 x SPDT 15A 125-250vAC Honywell limit switches for Open/Close indication
Ex d IIC T6 IP66. M20x1.5 connection. -20 to+50deg.C IECEx CQM 12.0047

ALS Limit Switch Box Wiring Diagram

Function IECex Limit Switch Box
Switches 2 x SPDT
Body 316 Stainless Steel
IP Rating IP66
