Features:
Tube Size 4mm to 16mm
Function Bulkhead Union Push Fit
Cert FDA Compliant
This Push Bulkhead Connector Joiner is made of 316 Stainless Steel making it ideal for corrosive environments or where you require a longer lasting/higher pressure push fit when compared to plastic. It has a metric tube connector push fit at both ends of an a bulkhead connector. The two opposing nuts can be removed from the thread and then clamped either side of a bulkhead. Simply push the tube in to seal and then press down on the collet while pulling the tube to release.

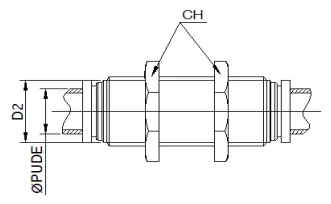

Model | Tube | Thread | L1 | D2 | CH |
---|---|---|---|---|---|
SPM04 | 4 | M11x1 | 32 | 12 | 17 |
SPM06 | 6 | M13x1 | 34 | 13 | 17 |
SPM08 | 8 | M15x1 | 36 | 15 | 19 |
SPM10 | 10 | M17x1 | 38 | 17 | 22 |
SPM12 | 12 | M22x1 | 40 | 19 | 24 |
All dimensions in mm unless shown otherwise.
