SKU: SPV

316 Stainless Steel Push Fit Elbow Joiner

From $13.20

Inc GST
In Stock
Make an Enquiry

This Push Fit Tube Joiner is made of 316 Stainless Steel making it ideal for corrosive environments or where you require a longer lasting/higher pressure push fit when compared to plastic. It has a metric tube connector push fit at both ends of an elbow. Simply push the tube in to seal and then press down on the collet while pulling the tube to release.

Material 316L Stainless Steel Body, FKM O-ring
Pressure Range 0 to 20 BAR
Temperature Range -10℃ to 120℃

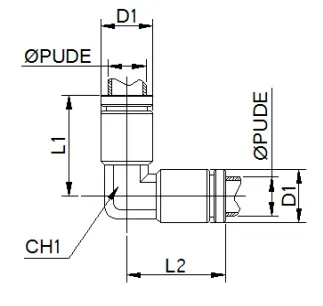

Stainless Steel Elbow Joiner Push Fit

Model Tube L1 L2 D1 CH
SPV04 4 17 17 9 9.2
SPV06 6 19 19 11 9.2
SPV08 8 22 22 13.6 11.2
SPV10 10 26 26 15.6 13.2
SPV12 12 29 29 18.6 15.5

All dimensions in mm unless shown otherwise.

Tube Size 4mm to 16mm
Function Elbow Union Push Fit
Cert FDA Compliant
