SKU: SPS

316 Stainless Steel Push Fit Straight Joiner

From $14.30

Inc GST
In Stock
Make an Enquiry

316 Stainless Steel Straight Joiner Push Fit Fitting. This has a metric tube connector push fit at both ends of the straight. Ideal for corrosive environments or where you require a longer lasting/higher pressure push fit when compared to plastic. Simply push the tube in to seal and then press down on the collet while pulling the tube to release.

Material 316L Stainless Steel Body, FKM O-ring
Pressure Range 0 to 20 BAR
Temperature Range -10℃ to 120℃

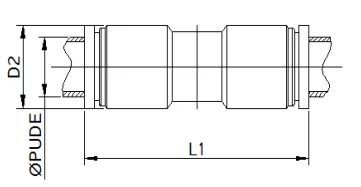

Stainless Steel Straight Joiner Push Fit Fitting

Model Tube L1 D2
SPS04 4 32 10
SPS06 6 34 12
SPS08 8 36 14
SPS10 10 38 16
SPS12 12 40 19

All dimensions in mm unless shown otherwise.

Tube Size 4mm to 16mm
Function Straight Joiner Push Fit
Cert FDA Compliant
