Features:
Tube Size 4mm to 16mm
Thread Size M5 to 3/4"
Function Male Straight Connector Push Fit
Cert FDA Compliant
Threaded 316 Stainless Steel Straight Push Fit Connector. This unit has a male threaded connection on one end to a metric tube push fit connector on the other end. Having a stainless steel construction makes it great for corrosive environments or where a longer life/higher pressure than plastic is required. Simply push the tube in to seal and then press down on the collet while pulling the tube to release. This unit is FDA approved.

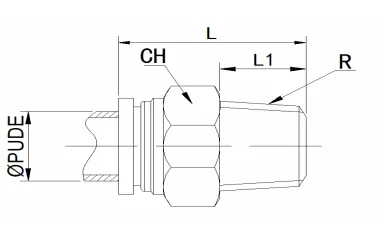

Model | Tube | L1 | L | CH |
---|---|---|---|---|
SPC04-M5 | 4 | 4 | 22 | 11 |
SPC04-01 | 4 | 8 | 20 | 11 |
SPC04-02 | 4 | 11 | 24 | 14 |
SPC04-03 | 4 | 11 | 24 | 17 |
SPC06-M5 | 6 | 5 | 24 | 11 |
SPC06-01 | 6 | 8 | 23 | 11 |
SPC06-02 | 6 | 11 | 23 | 14 |
SPC06-03 | 6 | 11 | 23 | 17 |
SPC08-01 | 8 | 8 | 25 | 14 |
SPC08-02 | 8 | 11 | 24 | 14 |
SPC08-03 | 8 | 11 | 24 | 17 |
SPC10-02 | 10 | 11 | 30 | 17 |
SPC10-03 | 10 | 11 | 24 | 17 |
SPC10-04 | 10 | 15 | 28 | 22 |
SPC12-03 | 12 | 11 | 28 | 19 |
SPC12-04 | 12 | 15 | 28 | 22 |
All dimensions in mm unless shown otherwise.
