316 Stainless Steel Push Fit Swivel Elbow

From $17.60

Inc GST
In Stock
Make an Enquiry

Threaded 316 Stainless Steel Male Swivel Elbow Push Fit Connector. This unit has a male threaded connection on one end to a metric tube push fit connector on the other end of a swivel elbow. The elbow can be adjusted to any angle even when engaged on the thread so the right direction of the tube end can be achieved. Having a stainless steel construction makes it great for corrosive environments or where a longer life/higher pressure than plastic is required. Simply push the tube in to seal and then press down on the collet while pulling the tube to release. This unit is FDA approved.

Material 316L Stainless Steel Body, FKM O-ring
Pressure Range 0 to 20 BAR
Temperature Range -10℃ to 120℃

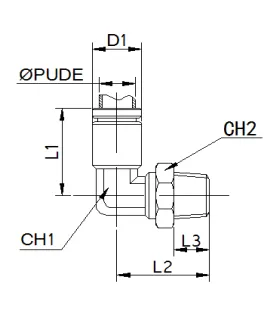

Stainless Steel Male Swivel Elbow Push Fit FItting

Model Tube L1 L2 L3 D2 CH1 CH2
SPL04-M5 4 17 19 4 10.5 9.2 11
SPL04-01 4 17 23 8 10.5 9.2 11
SPL04-02 4 24 25 11 10.5 9.2 14
SPL06-M5 6 24 25 4 12.5 9.2 11
SPL06-01 6 24 25 8 12.5 9.2 11
SPL06-02 6 24 27 11 12.5 9.2 14
SPL06-03 6 24 28 11 12.5 9.2 17
SPL08-01 8 27 25 8 14.5 11.2 14
SPL08-02 8 27 27 11 14.5 11.2 14
SPL08-03 8 27 28 11 14.5 11.2 17
SPL10-02 10 30.5 38 11 17.5 13.2 17
SPL10-03 10 30.5 29 11 17.5 13.2 17
SPL10-04 10 30.5 31 14 17.5 13.2 22
SPL12-03 12 34 31.5 11 20.5 20.5 19
SPL12-04 12 34 33.5 14 20.5 20.5 22

All dimensions in mm unless shown otherwise.

Tube Size 4mm to 16mm
Thread Size M5 to 3/4"
Function Male Swivel Elbow Push Fit
Cert FDA Compliant

Others Also Bought

SPL

316 Stainless Steel Push Fit Swivel Elbow

Features:

Tube Size 4mm to 16mm
Thread Size M5 to 3/4"
Function Male Swivel Elbow Push Fit
Cert FDA Compliant

Description:

Threaded 316 Stainless Steel Male Swivel Elbow Push Fit Connector. This unit has a male threaded connection on one end to a metric tube push fit connector on the other end of a swivel elbow. The elbow can be adjusted to any angle even when engaged on the thread so the right direction of the tube end can be achieved. Having a stainless steel construction makes it great for corrosive environments or where a longer life/higher pressure than plastic is required. Simply push the tube in to seal and then press down on the collet while pulling the tube to release. This unit is FDA approved.

Material 316L Stainless Steel Body, FKM O-ring
Pressure Range 0 to 20 BAR
Temperature Range -10℃ to 120℃
.

316 Stainless Steel Push Fit Swivel Elbow

SPL

Dimensions:

Stainless Steel Male Swivel Elbow Push Fit FItting

Model Tube L1 L2 L3 D2 CH1 CH2
SPL04-M5 4 17 19 4 10.5 9.2 11
SPL04-01 4 17 23 8 10.5 9.2 11
SPL04-02 4 24 25 11 10.5 9.2 14
SPL06-M5 6 24 25 4 12.5 9.2 11
SPL06-01 6 24 25 8 12.5 9.2 11
SPL06-02 6 24 27 11 12.5 9.2 14
SPL06-03 6 24 28 11 12.5 9.2 17
SPL08-01 8 27 25 8 14.5 11.2 14
SPL08-02 8 27 27 11 14.5 11.2 14
SPL08-03 8 27 28 11 14.5 11.2 17
SPL10-02 10 30.5 38 11 17.5 13.2 17
SPL10-03 10 30.5 29 11 17.5 13.2 17
SPL10-04 10 30.5 31 14 17.5 13.2 22
SPL12-03 12 34 31.5 11 20.5 20.5 19
SPL12-04 12 34 33.5 14 20.5 20.5 22

All dimensions in mm unless shown otherwise.
