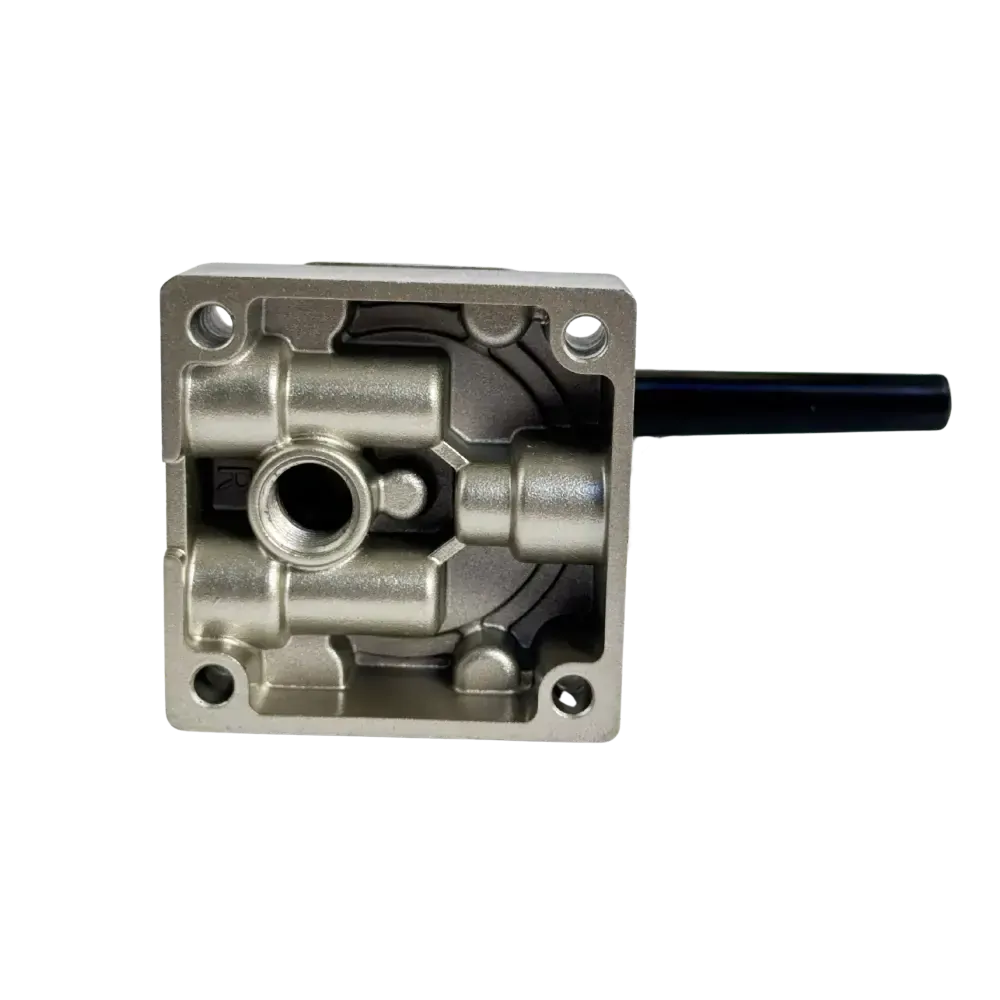

4 Way 3 position Rotary Lever Valve

From $46.75

Inc GST
In Stock
Make an Enquiry

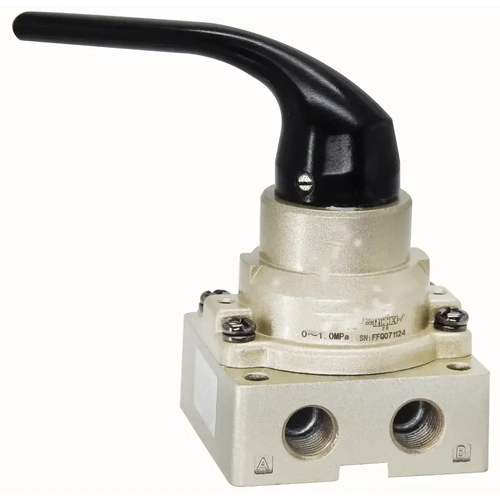

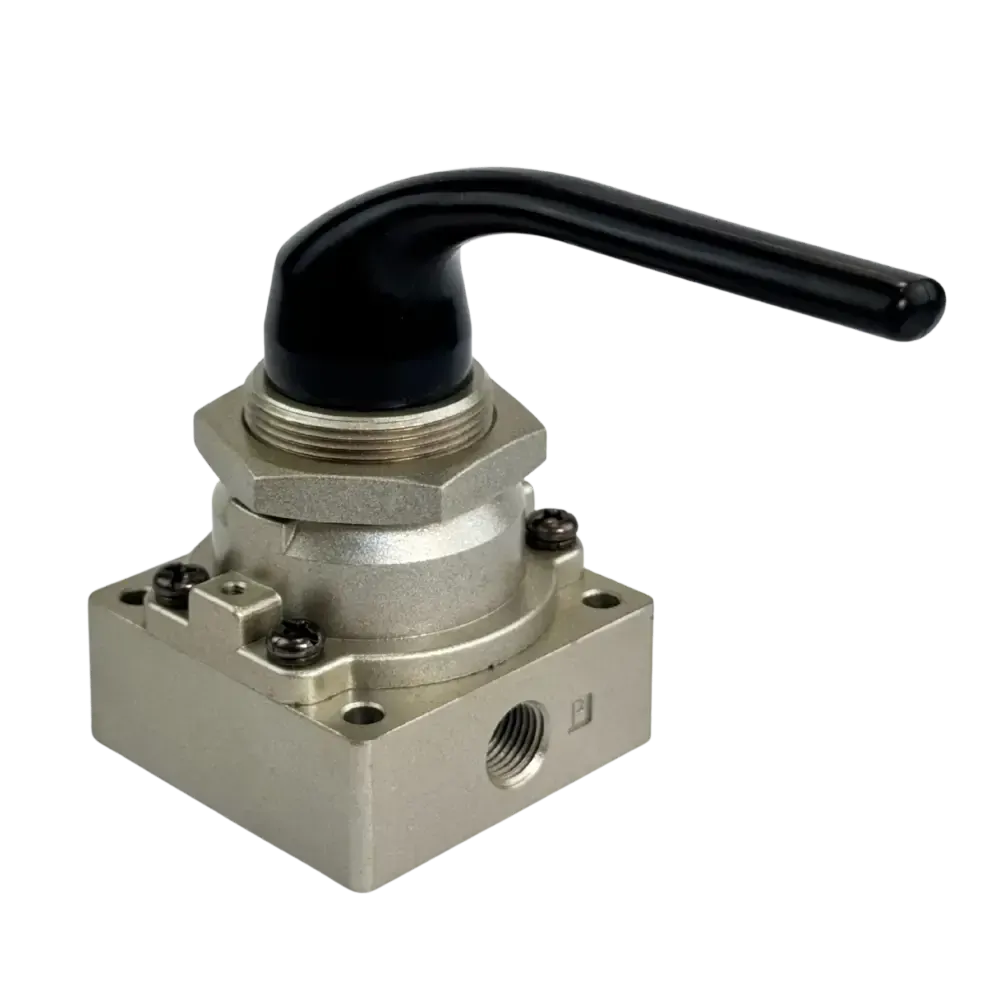

This 4 way 3 position rotary lever valve allows the user to get an "inching" function over an air ram where they can stop it anywhere during its stroke. It is the same as a 5 way 3 position valve except it shares a common exhaust so it does the same function. The lever has 3 positions; one way it will extend the ram or actuator, the middle it will close all ports to freeze it where it is and the other end it will retract it.

4 way 3 position rotary lever valve

Specification ROT43-02 ROT43-03 ROT43-04
Port Size (BSPP) 1/4” 3/8” 1/2”
Nominal Diameter 8mm 10mm 15mm
Pressure Range 0 to 10 BAR
Max Inlet Pressure 10 BAR (147 psi)
Medium Temperature -5 to 60°C
Construction Die Cast Aluminium with Ceramic Seat
Lubrication Not Required
Applicable Medium Air

4 way 3 position rotary lever valve

Size 1/4" to 1/2" BSP
Function 4 way 3 position rotary lever
Body Aluminium
Pressure Range 0 to 10 BAR
Media Air

ROT43

4 Way 3 position Rotary Lever Valve

Features:

Size 1/4" to 1/2" BSP
Function 4 way 3 position rotary lever
Body Aluminium
Pressure Range 0 to 10 BAR
Media Air

Description:

This 4 way 3 position rotary lever valve allows the user to get an "inching" function over an air ram where they can stop it anywhere during its stroke. It is the same as a 5 way 3 position valve except it shares a common exhaust so it does the same function. The lever has 3 positions; one way it will extend the ram or actuator, the middle it will close all ports to freeze it where it is and the other end it will retract it.

4 way 3 position rotary lever valve

Specification ROT43-02 ROT43-03 ROT43-04
Port Size (BSPP) 1/4” 3/8” 1/2”
Nominal Diameter 8mm 10mm 15mm
Pressure Range 0 to 10 BAR
Max Inlet Pressure 10 BAR (147 psi)
Medium Temperature -5 to 60°C
Construction Die Cast Aluminium with Ceramic Seat
Lubrication Not Required
Applicable Medium Air
.

4 Way 3 position Rotary Lever Valve

ROT43

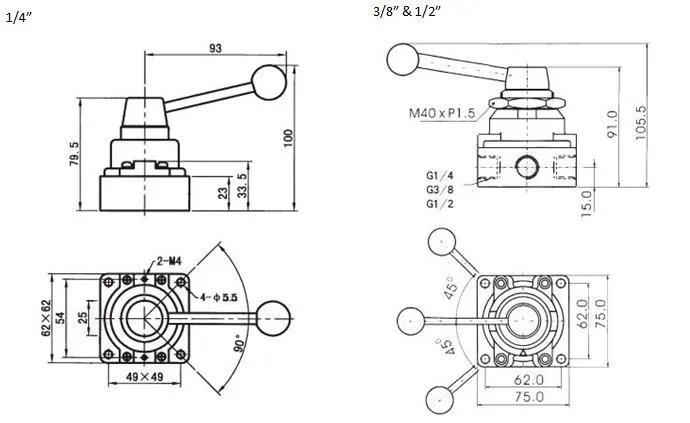

Dimensions:

4 way 3 position rotary lever valve

WARNING
