SKU: FBS52

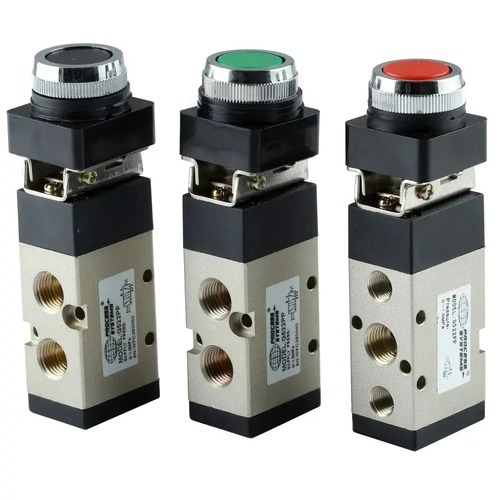

5 Way 2 position Flush Button Spring Valve

From $60.50

Inc GST
In Stock
Make an Enquiry

These 5 way 2 position flush button spring return valves are operated by pressing down on the button. When you release it will spring back to its previous position. Commonly used to control air rams or pneumatic actuators.

5 way 2 position flush button spring return valve



Specification FBS52-02-B FBS52-02-G FBS52-02-R
Port Size G1/4” G1/4” G1/4”
Exhaust Port Size G1/8” G1/8” G1/8”
Button Colour Black Green Red
Pressure Range 0 to 10 BAR
Max Inlet Pressure 10 BAR
Medium Temperature -5 to 60°C
Body Die Cast Aluminium
End Caps Reinforced Plastic
Button Plastic
Lubrication Not Required
Applicable Medium Air

Flush Button Spring Return 5 way 2 position valve

Size 1/4" BSP
Function 5 way 2 position flush button
Body Aluminium
Pressure Range 0 to 10 BAR
Media Air

FBS52

5 Way 2 position Flush Button Spring Valve

Features:

Size 1/4" BSP
Function 5 way 2 position flush button
Body Aluminium
Pressure Range 0 to 10 BAR
Media Air

Description:

These 5 way 2 position flush button spring return valves are operated by pressing down on the button. When you release it will spring back to its previous position. Commonly used to control air rams or pneumatic actuators.

5 way 2 position flush button spring return valve



Specification FBS52-02-B FBS52-02-G FBS52-02-R
Port Size G1/4” G1/4” G1/4”
Exhaust Port Size G1/8” G1/8” G1/8”
Button Colour Black Green Red
Pressure Range 0 to 10 BAR
Max Inlet Pressure 10 BAR
Medium Temperature -5 to 60°C
Body Die Cast Aluminium
End Caps Reinforced Plastic
Button Plastic
Lubrication Not Required
Applicable Medium Air
.

5 Way 2 position Flush Button Spring Valve

FBS52

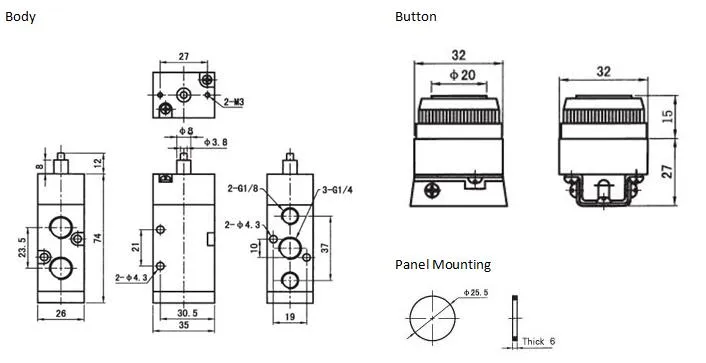

Dimensions:

Flush Button Spring Return 5 way 2 position valve
