SKU: PUP52

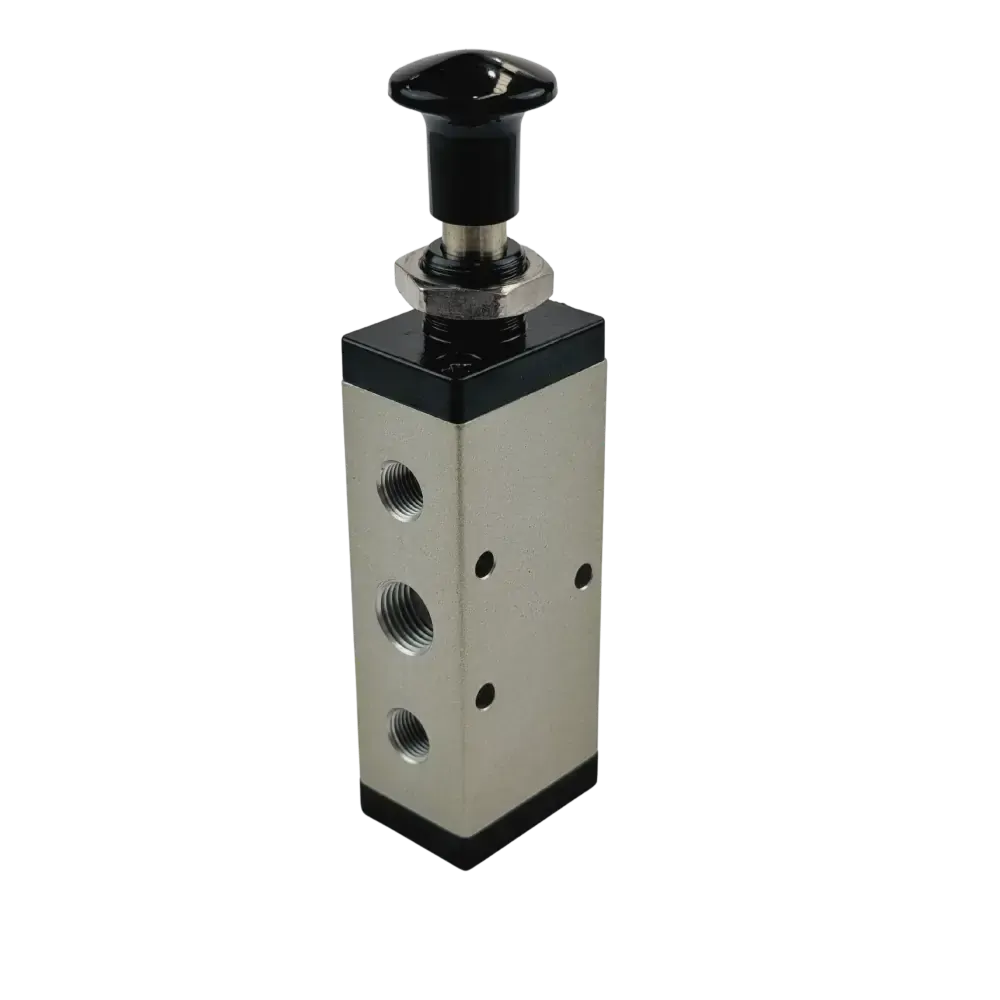

5 Way 2 position Push Pull Valve

From $55.00

Inc GST
In Stock
Make an Enquiry

These 5 way 2 position push pull valves are exactly that. Pull the lever up and the valve will operate one way and then push it down and it will operate the other. Commonly used to control air rams or pneumatic actuators.

5 way 2 position push pull valve

Specification PUP52-01 PUP52-02
Port Size (BSPP) 1/8" 1/4"
Exhaust Port Size 1/8" 1/8"
Function 5/2 Push Pull Detent
Pressure Range 0 to 10 BAR
Max Inlet Pressure 10 BAR
Medium Temperature -5 to 60°C
Body Die Cast Aluminium
End Caps Reinforced Plastic
Joystick Thermoplastic
Lubrication Not Required
Applicable Medium Air

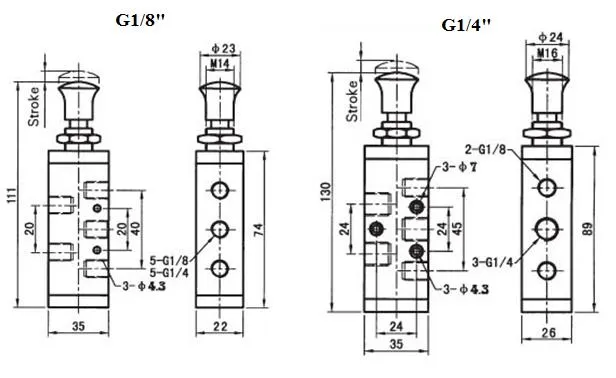

5 way 2 position push pull valve dimensions

Size 1/8" to 1/4" BSP
Function 5 way 2 position push pull
Body Aluminium
Pressure Range 0 to 10 BAR
Media Air

Others Also Bought

PUP52

5 Way 2 position Push Pull Valve

Features:

Size 1/8" to 1/4" BSP
Function 5 way 2 position push pull
Body Aluminium
Pressure Range 0 to 10 BAR
Media Air

Description:

These 5 way 2 position push pull valves are exactly that. Pull the lever up and the valve will operate one way and then push it down and it will operate the other. Commonly used to control air rams or pneumatic actuators.

5 way 2 position push pull valve

Specification PUP52-01 PUP52-02
Port Size (BSPP) 1/8" 1/4"
Exhaust Port Size 1/8" 1/8"
Function 5/2 Push Pull Detent
Pressure Range 0 to 10 BAR
Max Inlet Pressure 10 BAR
Medium Temperature -5 to 60°C
Body Die Cast Aluminium
End Caps Reinforced Plastic
Joystick Thermoplastic
Lubrication Not Required
Applicable Medium Air
.

5 Way 2 position Push Pull Valve

PUP52

Dimensions:

5 way 2 position push pull valve dimensions
