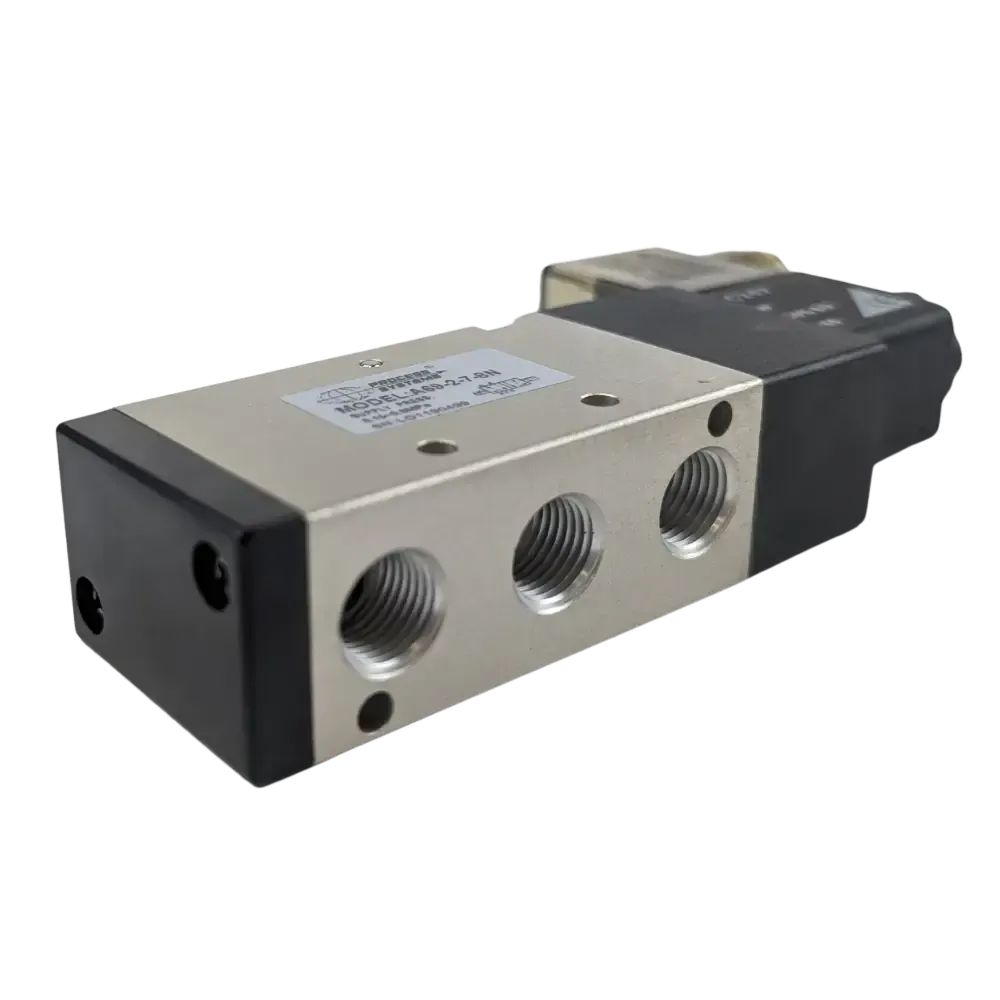

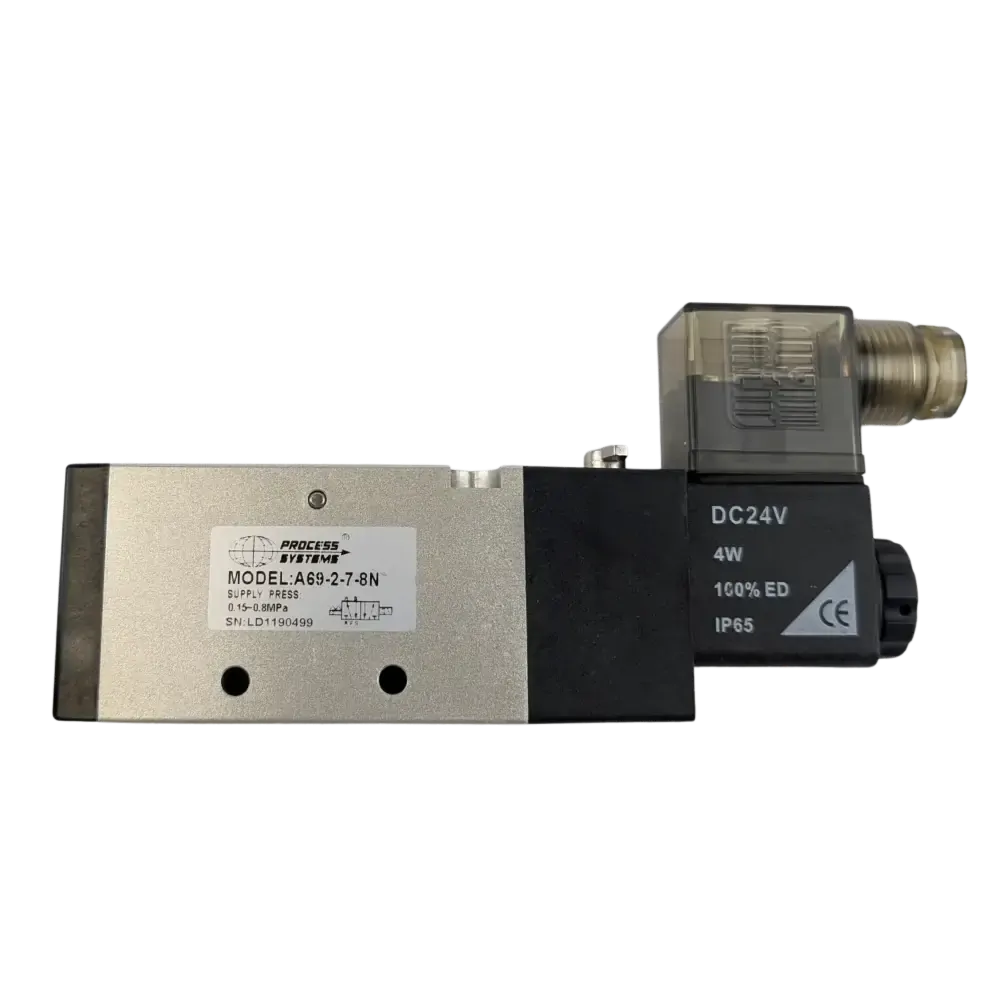

5 Way 2 Position Solenoid Spring valve

From $93.50

Inc GST
In Stock
Make an Enquiry
  • 5 way 2 position Solenoid Valve
  • NBR seals, Aluminium body
  • 1.5 to 8 Bar Pressure Range
  • 5°C to 180°C Temperature Range
  • For Air & Inert Gases
  • Control of Pneumatic Cylinders & Actuators
  • Comes with Coil & DIN Plug (IP65)
Model Port Size (BSP) Orifice ømm CV Weight Kg Coil Specifications
A69-1-5-*NM 1/8 5 0.67 0.3 SC-A1
5 Watts
6 Volt Amps
Class H Insulation
100% Ed
A69-2-7-*NM 1/4 7 2 0.35
A69-3-7-*NM 3/8 7 2 0.35
A69-4-8-*NM 1/2 8 2.8 0.6

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC

5/2 way solenoid valve dimensions

Model G(BSP) A B C D E F G H Exhaust Ports Inlet & Outlet Ports K L M
A69-1-5-*N 1/8" 38 17 3.3 20 130 20 4.3 35 G1/8" G1/8" 22 36 68
A69-2-7-*N 1/4" 50 20 4.3 24 145 24 4.3 40 G1/4" G1/4" 27 45 70
A69-3-7-*N 3/8" 50 20 4.3 24 145 24 4.3 40 G1/4" G3/8" 27 45 70
A69-4-8-*N 1/2" 72 27 4.3 36 178 28 5.5 50 G1/2" G1/2" 34 63 74

All dimensions in mm unless shown otherwise.

Size 1/8" to 1/2" BSP
Function 5 way 2 position solenoid/spring with manual override
Valve Operation Servo Assisted
Body Aluminium
Seat NBR
Pressure Range 1.5 to 8 BAR
Media Air

Others Also Bought

A69

5 Way 2 Position Solenoid Spring valve

Features:

Size 1/8" to 1/2" BSP
Function 5 way 2 position solenoid/spring with manual override
Valve Operation Servo Assisted
Body Aluminium
Seat NBR
Pressure Range 1.5 to 8 BAR
Media Air

Description:

  • 5 way 2 position Solenoid Valve
  • NBR seals, Aluminium body
  • 1.5 to 8 Bar Pressure Range
  • 5°C to 180°C Temperature Range
  • For Air & Inert Gases
  • Control of Pneumatic Cylinders & Actuators
  • Comes with Coil & DIN Plug (IP65)
Model Port Size (BSP) Orifice ømm CV Weight Kg Coil Specifications
A69-1-5-*NM 1/8 5 0.67 0.3 SC-A1
5 Watts
6 Volt Amps
Class H Insulation
100% Ed
A69-2-7-*NM 1/4 7 2 0.35
A69-3-7-*NM 3/8 7 2 0.35
A69-4-8-*NM 1/2 8 2.8 0.6

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC

.

5 Way 2 Position Solenoid Spring valve

A69

Dimensions:

5/2 way solenoid valve dimensions

Model G(BSP) A B C D E F G H Exhaust Ports Inlet & Outlet Ports K L M
A69-1-5-*N 1/8" 38 17 3.3 20 130 20 4.3 35 G1/8" G1/8" 22 36 68
A69-2-7-*N 1/4" 50 20 4.3 24 145 24 4.3 40 G1/4" G1/4" 27 45 70
A69-3-7-*N 3/8" 50 20 4.3 24 145 24 4.3 40 G1/4" G3/8" 27 45 70
A69-4-8-*N 1/2" 72 27 4.3 36 178 28 5.5 50 G1/2" G1/2" 34 63 74

All dimensions in mm unless shown otherwise.
