SKU: TOG52

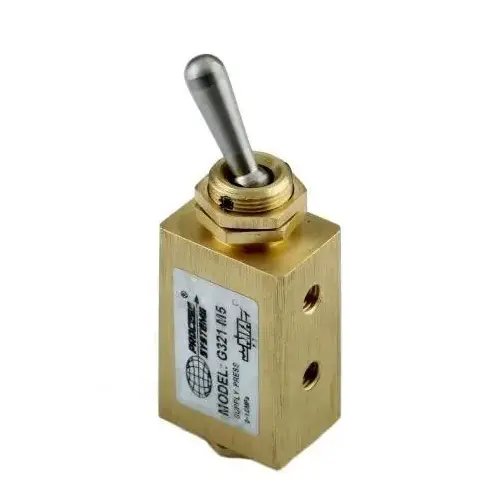

5 Way 2 Position Toggle Valve

From $24.75

Inc GST
In Stock
Make an Enquiry

This 5 way 2 position valve is operated by switching the toggle to either side. It will remain there until it is switched back. Ideal for operating pneumatic cylinders or actuators.

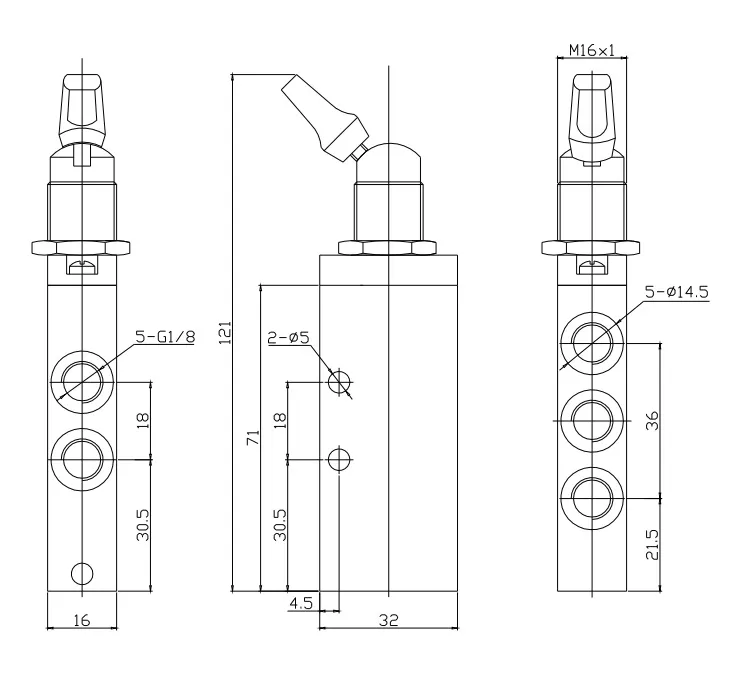

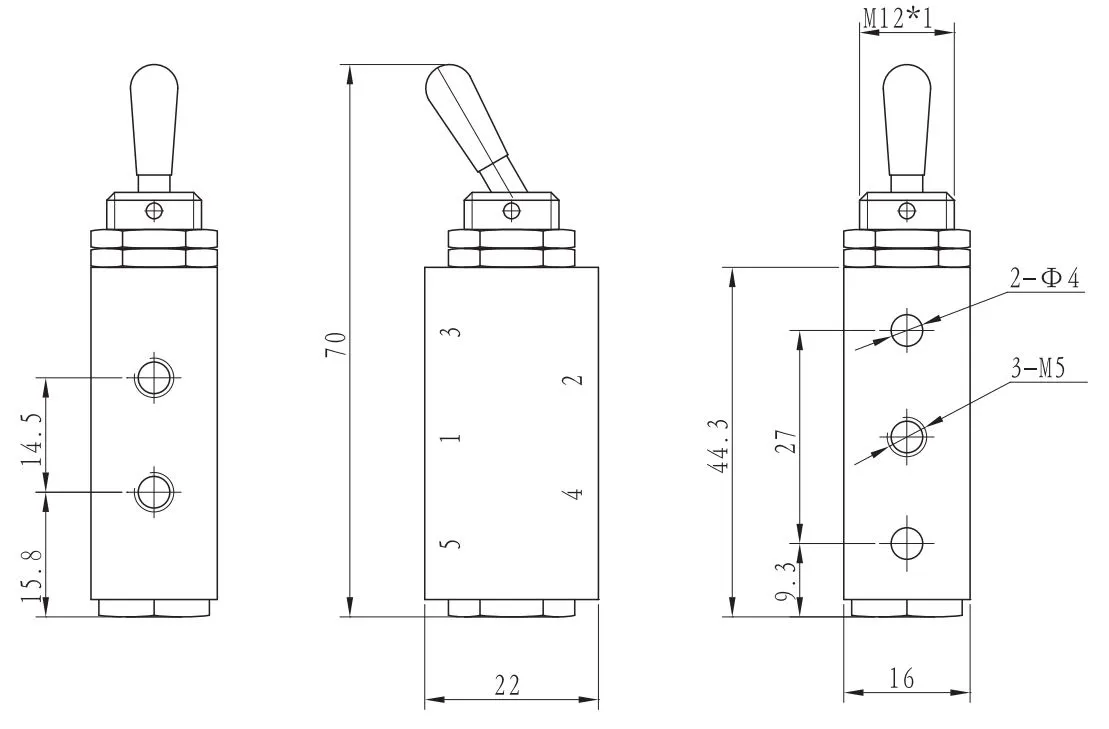

Specification TOG52-M5 & TOG52-01
Port Size M5 & 1/8" BSP
Pressure Range 0 to 10 BAR
Max Inlet Pressure 10 BAR
Medium Temperature 10 to 60°C
Body Brass or Aluminium
Lubrication Not Required
Applicable Medium Air
M5 1/8" BSP

Size M5 to 1/8" BSP
Function 5 way 2 position toggle
Body Brass
Pressure Range 0 to 10 BAR
Media Air
