SKU: A612

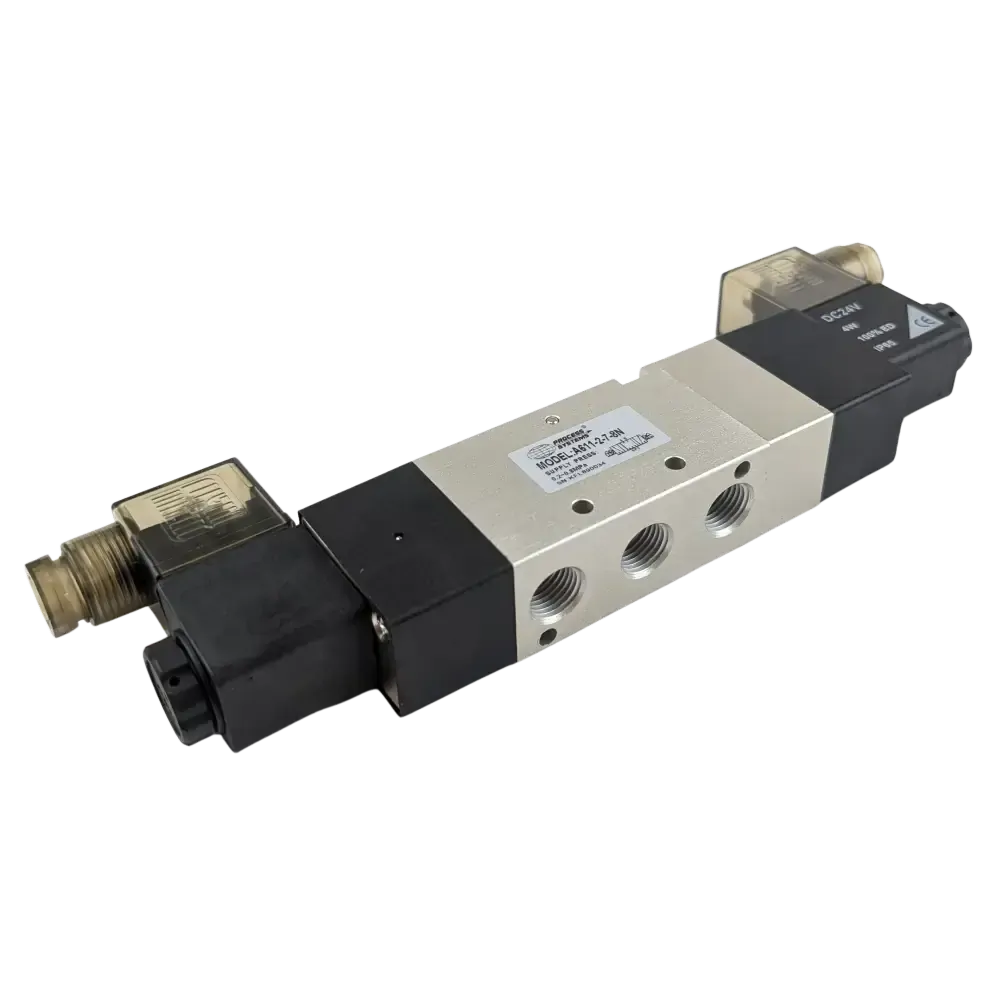

5 Way 3 Position Double Solenoid Valve Open Centers

From $346.50

Inc GST
In Stock
Make an Enquiry
  • 5 way 3 position Solenoid Valve - Open Centers
  • NBR seals, Aluminium body
  • Manual Override
  • 1.5 to 8 Bar Pressure Range
  • 5°C to 180°C Temperature Range
  • For Air & Inert Gases
  • Comes with Coil (SC-A1) & LED DIN Plug (IP65)

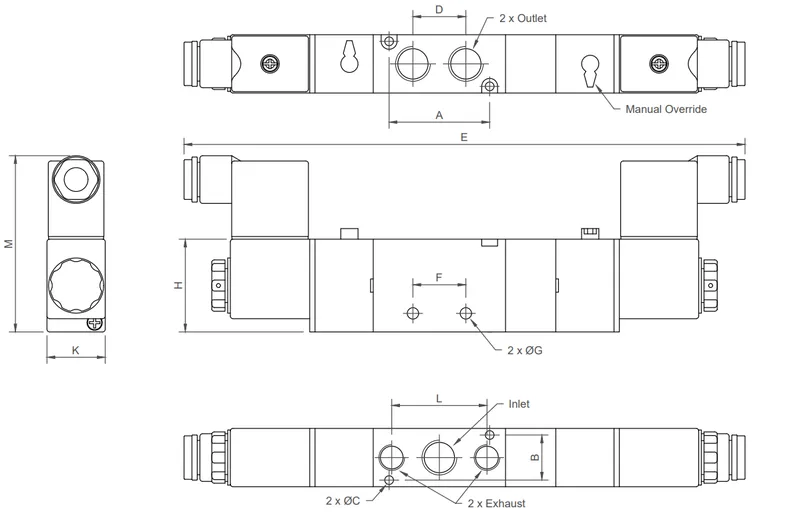

5/3 way solenoid valve closed centres dimensions

Model G(BSP) A B C D E F G H Inlet & Outlet Ports Exhaust Ports K L M
A612-1-5-1N 1/8" 38 17 3.3 20 196 20 4.3 35 1/8" 1/8" 22 36 68
A612-2-7-1N 1/4" 38 17 3.3 20 196 20 4.3 35 1/4" 1/4" 22 36 68
A612-3-7-1N 3/8" 50 20 4.3 24 215 24 4.3 40 3/8" 1/4" 27 45 70
A612-4-8-1N 1/2" 72 27 4.3 36 247 28 5.5 50 1/2" 1/2" 34 63 74

All dimensions in mm unless shown otherwise.

Size 1/4" to 1/2" BSP
Function 5 way 3 position (open centres) double solenoid with manual override
Valve Operation Servo Assisted
Body Aluminium
Seat NBR
Pressure Range 1.5 to 8 BAR
Media Air

A612

5 Way 3 Position Double Solenoid Valve Open Centers

Features:

Size 1/4" to 1/2" BSP
Function 5 way 3 position (open centres) double solenoid with manual override
Valve Operation Servo Assisted
Body Aluminium
Seat NBR
Pressure Range 1.5 to 8 BAR
Media Air

Description:

  • 5 way 3 position Solenoid Valve - Open Centers
  • NBR seals, Aluminium body
  • Manual Override
  • 1.5 to 8 Bar Pressure Range
  • 5°C to 180°C Temperature Range
  • For Air & Inert Gases
  • Comes with Coil (SC-A1) & LED DIN Plug (IP65)
.

5 Way 3 Position Double Solenoid Valve Open Centers

A612

Dimensions:

5/3 way solenoid valve closed centres dimensions

Model G(BSP) A B C D E F G H Inlet & Outlet Ports Exhaust Ports K L M
A612-1-5-1N 1/8" 38 17 3.3 20 196 20 4.3 35 1/8" 1/8" 22 36 68
A612-2-7-1N 1/4" 38 17 3.3 20 196 20 4.3 35 1/4" 1/4" 22 36 68
A612-3-7-1N 3/8" 50 20 4.3 24 215 24 4.3 40 3/8" 1/4" 27 45 70
A612-4-8-1N 1/2" 72 27 4.3 36 247 28 5.5 50 1/2" 1/2" 34 63 74

All dimensions in mm unless shown otherwise.
