SKU: LEL53

5 Way 3 position Lever Lever Sprung Closed Centres

From $71.50

Inc GST
In Stock
Make an Enquiry

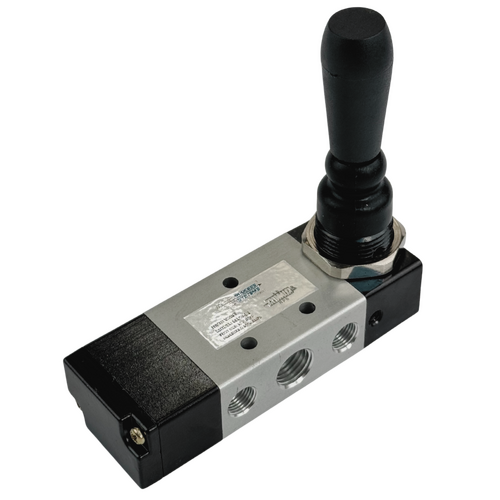

This 5 way 3 position rotary lever valve allows the user to get an "inching" function over an air ram where they can stop it anywhere during its stroke (also known as a creep function). The lever has 3 positions; one way it will extend the ram or actuator, the middle it will close all ports to freeze it where it is and the other end it will retract it.

Specification LEL53-01 LEL53-02 LEL53-03 LEL53-04
Port Size (BSPP) 1/8” 1/4" 3/8" 1/2"
Exhaust Port Size 1/8” 1/8” 1/4" 1/2"
Function 5/3 Lever Lever Closed Centres
Pressure Range 0 to 10 BAR (147 psi)
Max Inlet Pressure 10 BAR (147 psi)
Medium Temperature -5 to 60°C
Body Die Cast Aluminium
End Caps Reinforced Plastic
Joystick Thermoplastic
Lubrication Not Required
Applicable Medium Air

5 way 3 position lever valve

Model N A B C D E F G H I J K L M O P
LEL53-02 G1/4 36 G1/8 6.5 31.5 56 75.5 97 35 24 ø4.3 20 95.5 20 3 22
LEL53-03 G3/8 44 G1/4 7.5 40 72.5 91.5 113.5 40 28 ø4.3 24 100 24 4 27
LEL53-04 G1/2 63 G1/2 7.5 54.5 101.5 124 152 50 36 ø5.5 28.5 108 35 4 34

Please note N is pressure or supply port and B is the exhaust ports. All dimensions in mm unless otherwise noted.



Size 1/4" to 1/2" BSP
Function 5 way 3 position lever
Body Aluminium
Pressure Range 0 to 10 BAR
Media Air

LEL53

5 Way 3 position Lever Lever Sprung Closed Centres

Features:

Size 1/4" to 1/2" BSP
Function 5 way 3 position lever
Body Aluminium
Pressure Range 0 to 10 BAR
Media Air

Description:

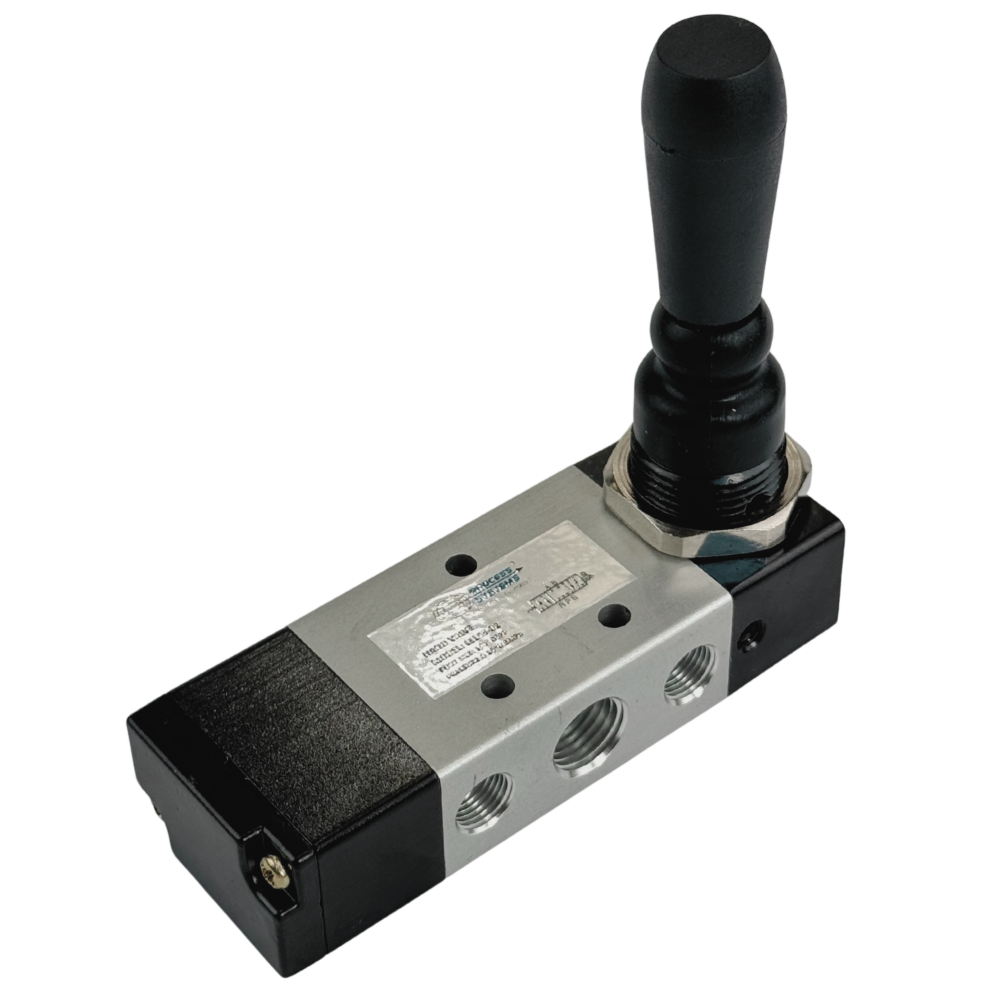

This 5 way 3 position rotary lever valve allows the user to get an "inching" function over an air ram where they can stop it anywhere during its stroke (also known as a creep function). The lever has 3 positions; one way it will extend the ram or actuator, the middle it will close all ports to freeze it where it is and the other end it will retract it.

Specification LEL53-01 LEL53-02 LEL53-03 LEL53-04
Port Size (BSPP) 1/8” 1/4" 3/8" 1/2"
Exhaust Port Size 1/8” 1/8” 1/4" 1/2"
Function 5/3 Lever Lever Closed Centres
Pressure Range 0 to 10 BAR (147 psi)
Max Inlet Pressure 10 BAR (147 psi)
Medium Temperature -5 to 60°C
Body Die Cast Aluminium
End Caps Reinforced Plastic
Joystick Thermoplastic
Lubrication Not Required
Applicable Medium Air
.

5 Way 3 position Lever Lever Sprung Closed Centres

LEL53

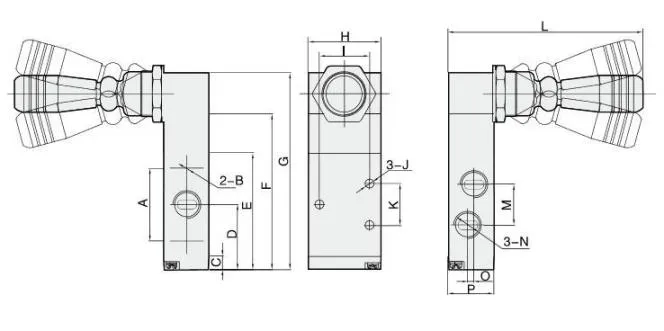

Dimensions:

5 way 3 position lever valve

Model N A B C D E F G H I J K L M O P
LEL53-02 G1/4 36 G1/8 6.5 31.5 56 75.5 97 35 24 ø4.3 20 95.5 20 3 22
LEL53-03 G3/8 44 G1/4 7.5 40 72.5 91.5 113.5 40 28 ø4.3 24 100 24 4 27
LEL53-04 G1/2 63 G1/2 7.5 54.5 101.5 124 152 50 36 ø5.5 28.5 108 35 4 34

Please note N is pressure or supply port and B is the exhaust ports. All dimensions in mm unless otherwise noted.
