SKU: APP53

5 Way 3 position Pilot/Pilot valve closed centers

From $154.00

Inc GST
In Stock
Make an Enquiry

Five way Three Position Pilot/Pilot Valve. This 5/3 valve has air pilot signal at both ends with closed centers. This allows air signals to control pneumatic actuators or cylinders and also gives an inching function. This allows the user to stop actuators/cylinders anywhere in the stroke by stopping air entering or exhausting.

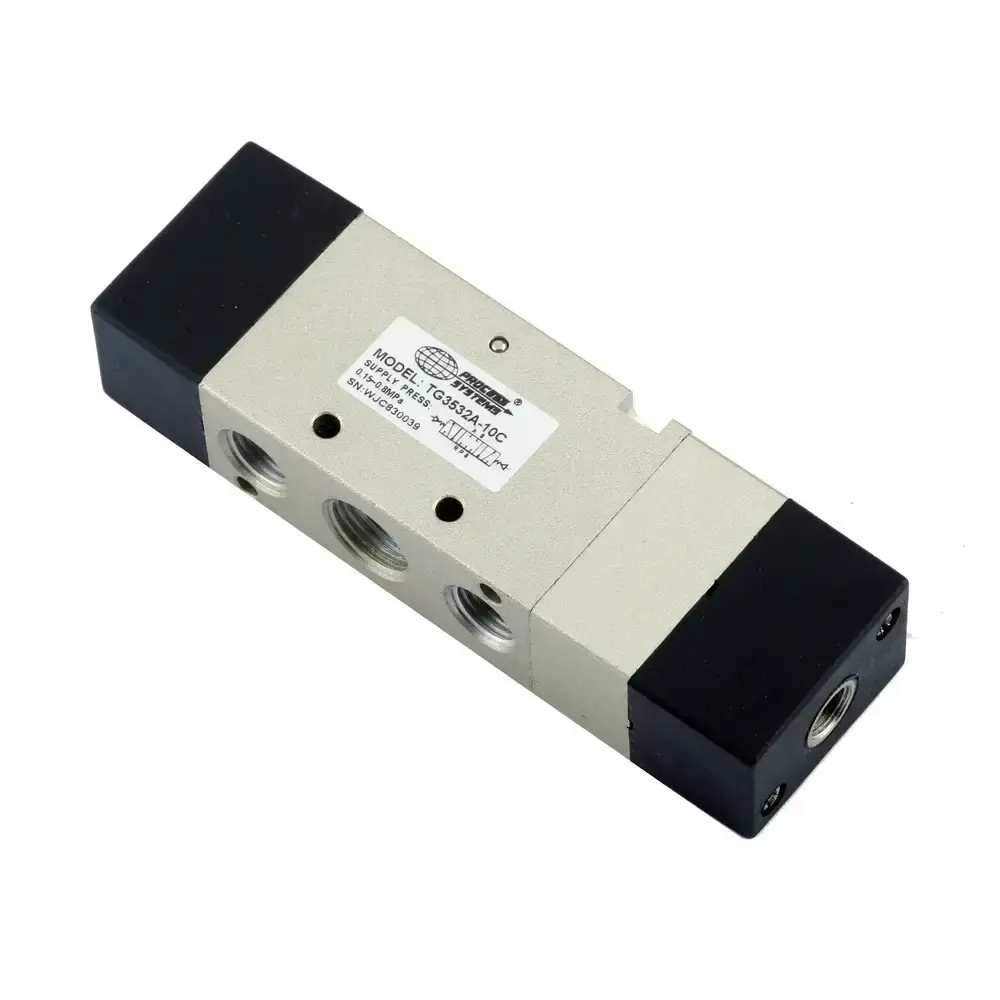

5 way 3 position pilot pilot valve

Specification APP53-01 APP53-02 APP53-03 APP53-04
Port Size (BSPP) G1/8” G1/4” G3/8” G1/2”
Exhaust Port Size 1/8" 1/8" 1/4" 1/2"
Function Pilot Pilot Closed Centres
Pressure Range 1.5 to 8 BAR
Medium Temperature -5 to 50°C
Max Frequency 5 cycles per second
Applicable Media Air
Construction Die Cast Aluminium Body / Reinforced Plastic End CAPP
Lubrication Needless

Please note if sizing manifold for these valves the manifold size is the exhaust port size.

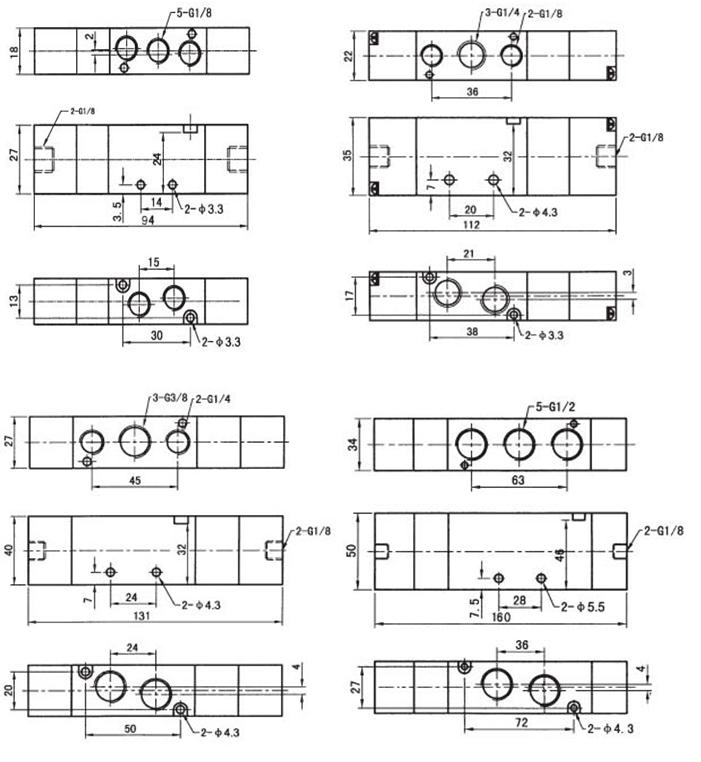

5 way 3 position pilot pilot valve dimensions

Size 1/8" to 1/2" BSP
Function 5 way 3 position pilot pilot
Valve Operation Servo Assisted
Body Aluminium
Pressure Range 1.5 to 8 BAR
Media Air
