SKU: LUB

Air Lubricator

From $22.00

Inc GST
In Stock
Make an Enquiry

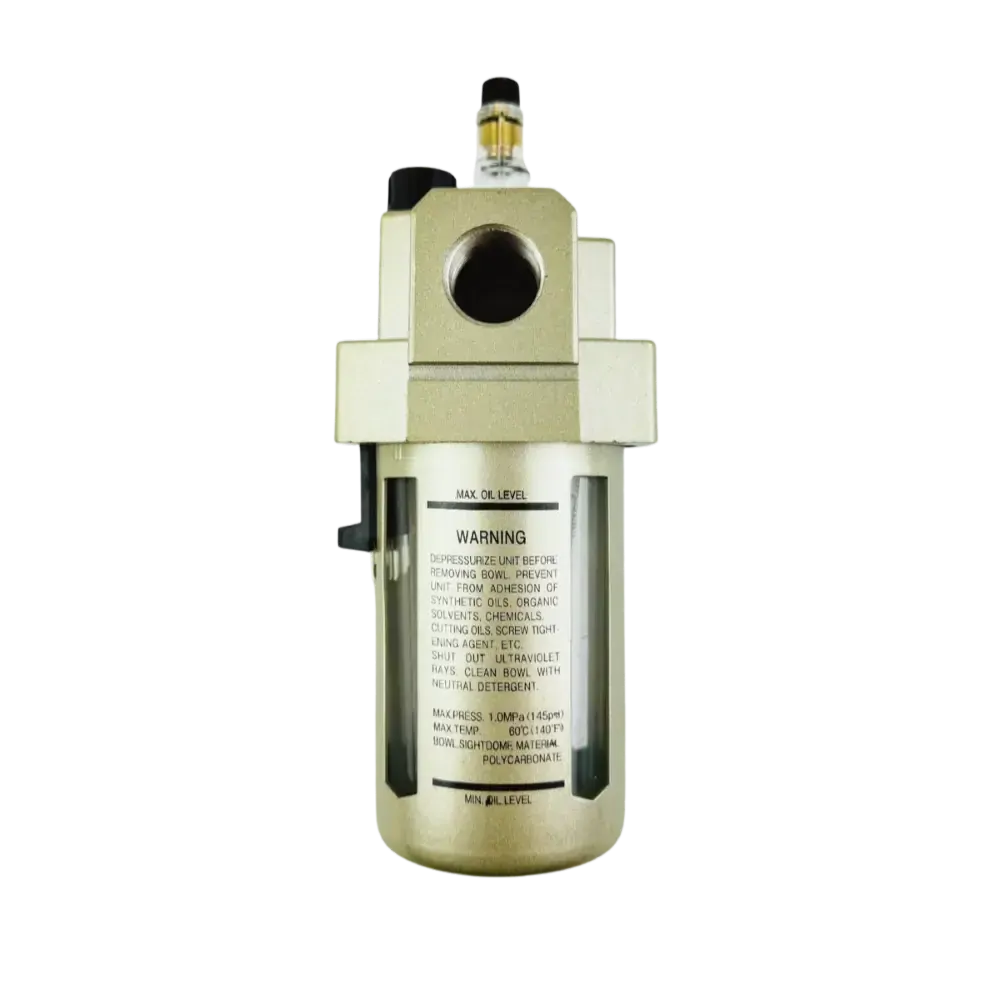

Air line lubricator designed to introduce lubricating oil into an air line. This is enabled by a venturi function which is adjustable. It has a polycarbonate viewing window in the bowl which allows the user to check the level of lubrication left.

Specification LUB-02 LUB-03 LUB-04 LUB-05 LUB-06 LUB-08 LUB-09
Port Size (BSPP) 1/4” 3/8” 1/2” 3/4” 1” 1 ½” 2”
Flow Rate L/min 800 1700 5000 7000 7000
Max Pressure 8 Bar (118 psi)
Medium Temperature 0 to 60°C
Media Air
Lubricating Oil ISOVG32 or Equivalent
Drops per minute 0 to 120 Drops per minute
Construction Die Cast Aluminium
Bowl Material Polycarbonate
Bowl Guard Standard
Min Flow for Oil Drip 15L/min 30L/min 50L/min 190L/min 190L/min
Lubricating Oil Capacity 25 cm³ 50 cm³ 130 cm³ 400 cm³

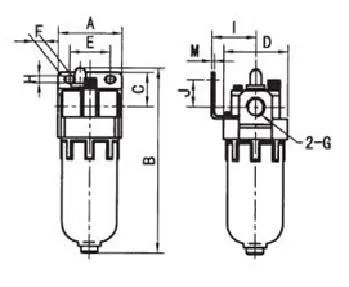

Air Line lubricator

Model A B C D E F G H I J M
LUB-02 40 122 38 40 27 8.4 G1/4” 5.4 30 22 2.3
LUB-03 53 142 38 53 40 8 G3/8” 6.5 41 23 2.3
LUB-04 70 177 41 70 54 10.5 G1/2” 8.5 50 26 2.3
LUB-05 70 177 41 70 54 10.5 G3/4” 8.5 50 26 2.3
LUB-06 90 254 45 90 66 13 G1” 11 70 35 3.2

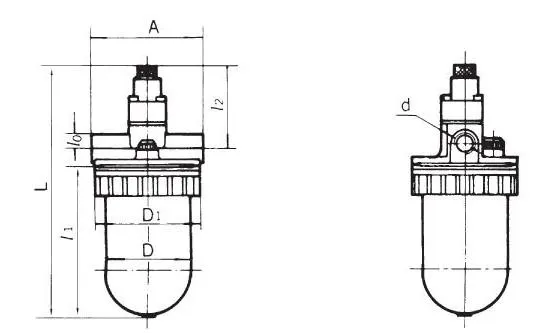

 Airline Lubricator

Model d A D D1 L0 L1 L2
LUB-08 G1-1/2” 115 Ø90 Ø110 32 32 105
LUB-09 G2” 115 Ø90 Ø110 32 32 105
All dimensions in mm unless shown otherwise.

Size 1/4" to 2" BSP
Function Lubricator
Body Die Cast Aluminium
Pressure Range 0 to 8 BAR
Media Air

.
.
