Airline Filter

From $38.50

Inc GST
In Stock
Make an Enquiry

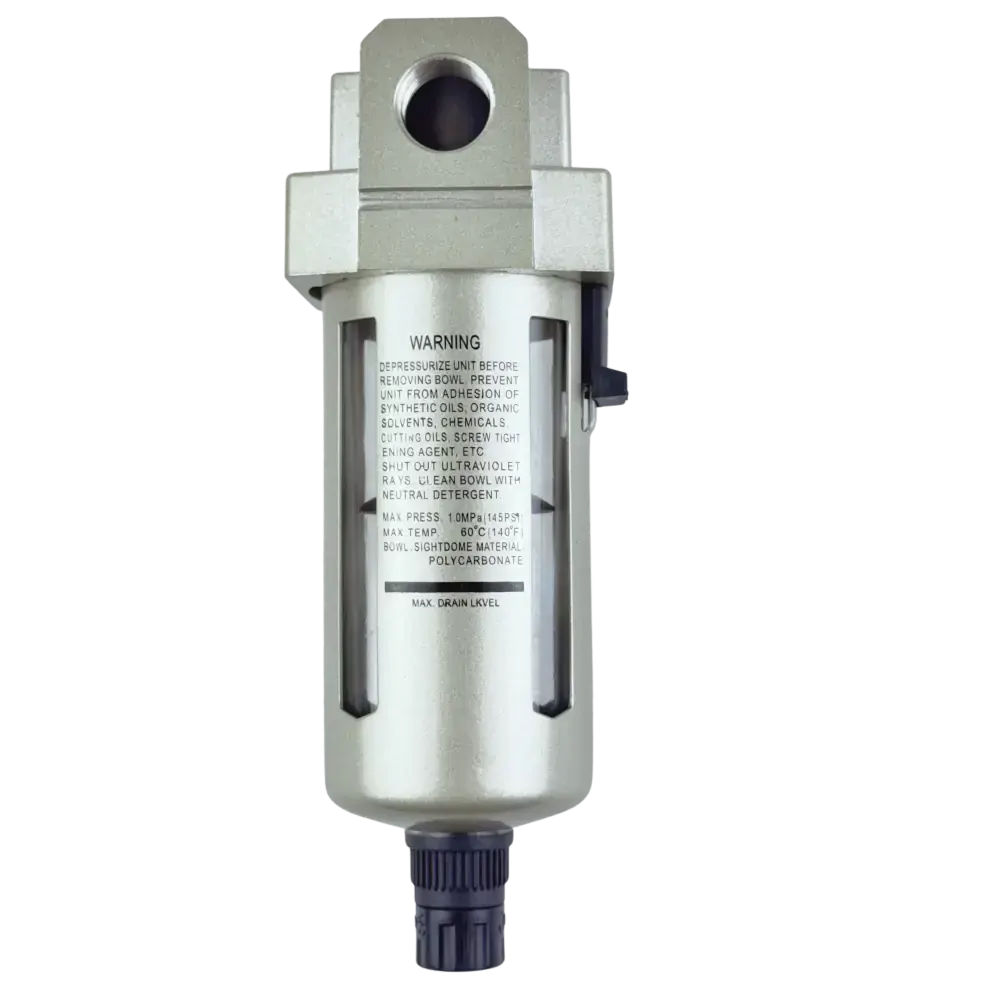

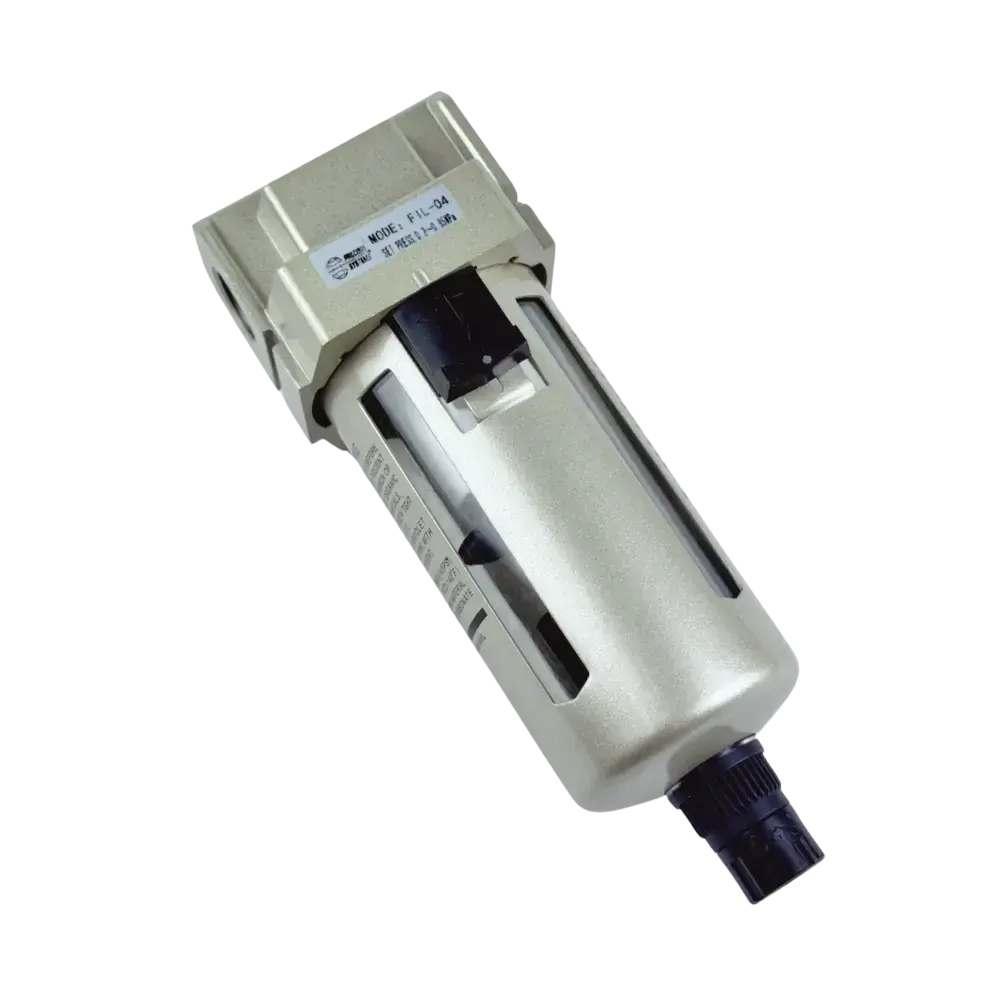

Airline filter designed to clean and dry the compressed air. This is first done by spinning the air in the bowl which will help take out condensate and then the air passes a baffle and through the filter. *Please note that you need a 2 Bar differential (30psi) to seat the drain to the filter upon start up (not suited for low pressure applications).

Specification FIL-02 FIL-03 FIL-04 FIL-05 FIL-06 FIL-08 FIL-09
Port Size (BSPP) 1/4” 3/8” 1/2” 3/4” 1” 1 ½” 2”
Flow Rate L/min 750 1500 4000 7000 7000
Pressure Range 2 to 8.5 Bar
Medium Temperature 0 to 60°C
Filter Size 5µm 50µm
Media Air
Construction Die Cast Aluminium
Bowl Material Polycarbonate
Bowl Guard Standard
Drain Capacity 15cm³ 20cm³ 45cm³ 130cm³

Airline Filter

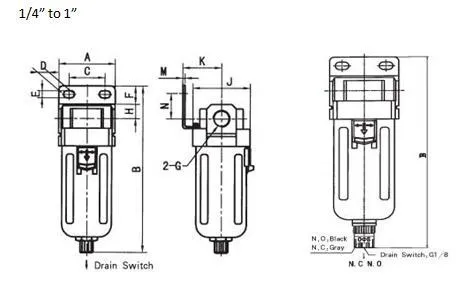

Model A B C D E F G H I J K N Auto Drain B
FIL-02 40 135 27 8.4 5.4 17 G1/4” 11 40 30 30 2.3 135
FIL-03 53 165 40 8 6.5 17 G3/8” 14 53 41 41 2.3 178
FIL-04 70 168 54 10 8.5 17 G1/2” 18 70 50 50 2.3 223
FIL-05 70 168 54 10 8.5 17 G3/4” 18 70 50 50 2.3 227
FIL-06 90 248 56 13 11 23 G1” 24 90 70 70 3.2 30

Airline FIlter

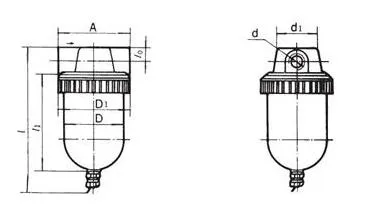

Model d A D D1 L0 L1 L2
FIL-08 G1-1/2” 132 Ø90 Ø130 Ø92 32 228
FIL-09 G2” 132 Ø90 Ø130 Ø92 32 228
All dimensions in mm unless shown otherwise.





Size 1/4" to 2" BSP
Function Filter with auto drain
Body Die Cast Aluminium
Pressure Range 2 to 10 BAR
Media Air
