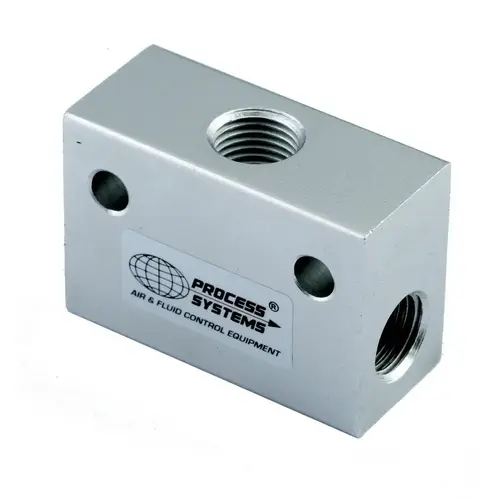

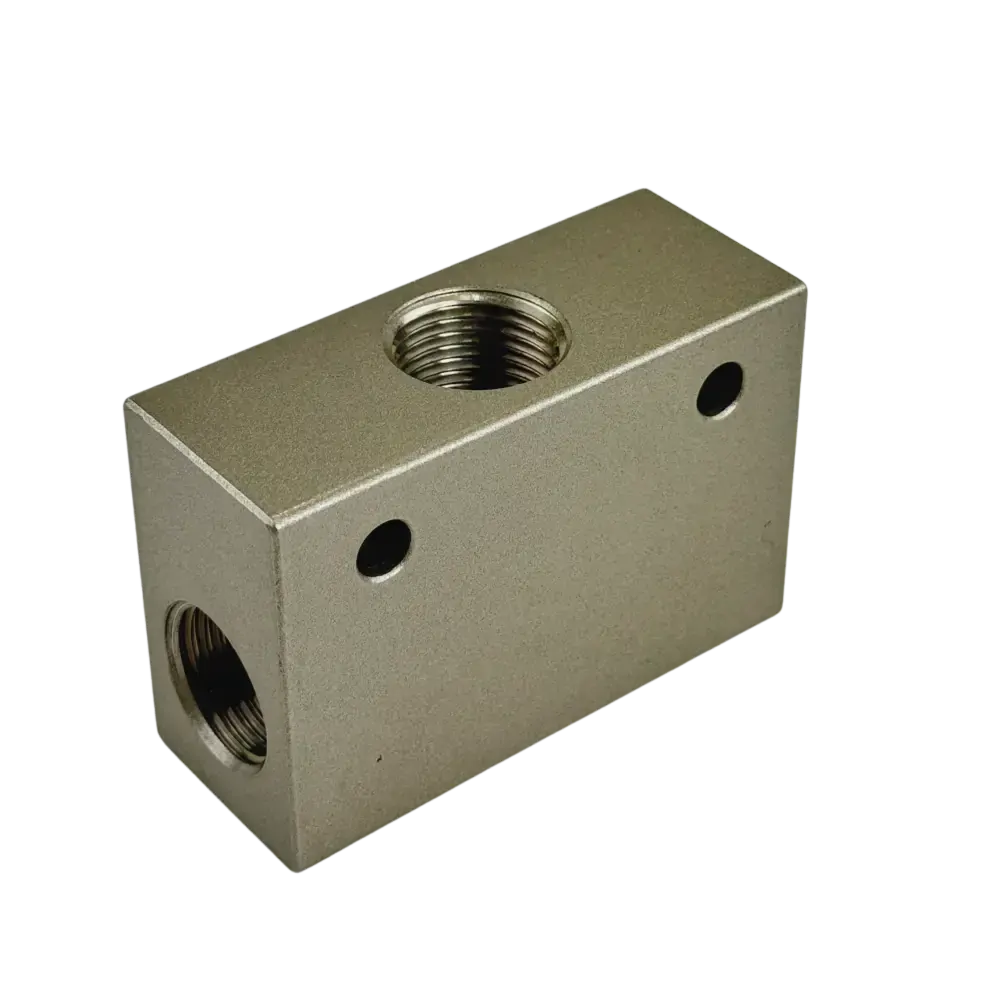

Aluminium Shuttle Valve

From $22.00

Inc GST
In Stock
Make an Enquiry

This aluminium shuttle valve which is also called an 'or valve' (either this inlet 'or' that inlet).Two inlets with one outlet where only one inlet can be active. Used in applications where there are two pressure supplies and only one will be working at a time.

Specification ASV-01 ASV-02 ASV-03 ASV-04 ASV-05 ASV-06
Port Size G1/8” G1/4” G3/8” G1/2” G3/4” G1”
Nominal Diameter 3mm 6mm 8mm 10mm 15mm 20mm
Pressure Range 0.5 to 12 BAR
Max Inlet Pressure 12 BAR
Medium Temperature -5 to 60°C
Body Die Cast Aluminium
Lubrication Not Required
Applicable Medium Air

Shuttle Valve Dimensions

Specification A B C D E F G H
ASV-01 40 26 21 8 25 Ø4.3 G1/8” 16
ASV-02 52 35 25 11 35 Ø5.5 G1/4” 22
ASV-03 75 50 41 18 48 Ø7 G3/8” 30
ASV-04 75 50 41 18 48 Ø7 G1/2" 30
ASV-05 110 70 58 22 72 Ø7 G3/4” 40
ASV-06 110 70 58 22 72 Ø7 G1” 40

All dimensions in mm unless shown otherwise.

Size 1/4" to 1" BSP
Function Shuttle Valve
Body Aluminium
Pressure Range 0.5 to 12 BAR
Media Air

ASV

Aluminium Shuttle Valve

Features:

Size 1/4" to 1" BSP
Function Shuttle Valve
Body Aluminium
Pressure Range 0.5 to 12 BAR
Media Air

Description:

This aluminium shuttle valve which is also called an 'or valve' (either this inlet 'or' that inlet).Two inlets with one outlet where only one inlet can be active. Used in applications where there are two pressure supplies and only one will be working at a time.

Specification ASV-01 ASV-02 ASV-03 ASV-04 ASV-05 ASV-06
Port Size G1/8” G1/4” G3/8” G1/2” G3/4” G1”
Nominal Diameter 3mm 6mm 8mm 10mm 15mm 20mm
Pressure Range 0.5 to 12 BAR
Max Inlet Pressure 12 BAR
Medium Temperature -5 to 60°C
Body Die Cast Aluminium
Lubrication Not Required
Applicable Medium Air
.

Aluminium Shuttle Valve

ASV

Dimensions:

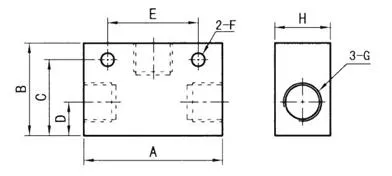

Shuttle Valve Dimensions

Specification A B C D E F G H
ASV-01 40 26 21 8 25 Ø4.3 G1/8” 16
ASV-02 52 35 25 11 35 Ø5.5 G1/4” 22
ASV-03 75 50 41 18 48 Ø7 G3/8” 30
ASV-04 75 50 41 18 48 Ø7 G1/2" 30
ASV-05 110 70 58 22 72 Ø7 G3/4” 40
ASV-06 110 70 58 22 72 Ø7 G1” 40

All dimensions in mm unless shown otherwise.
