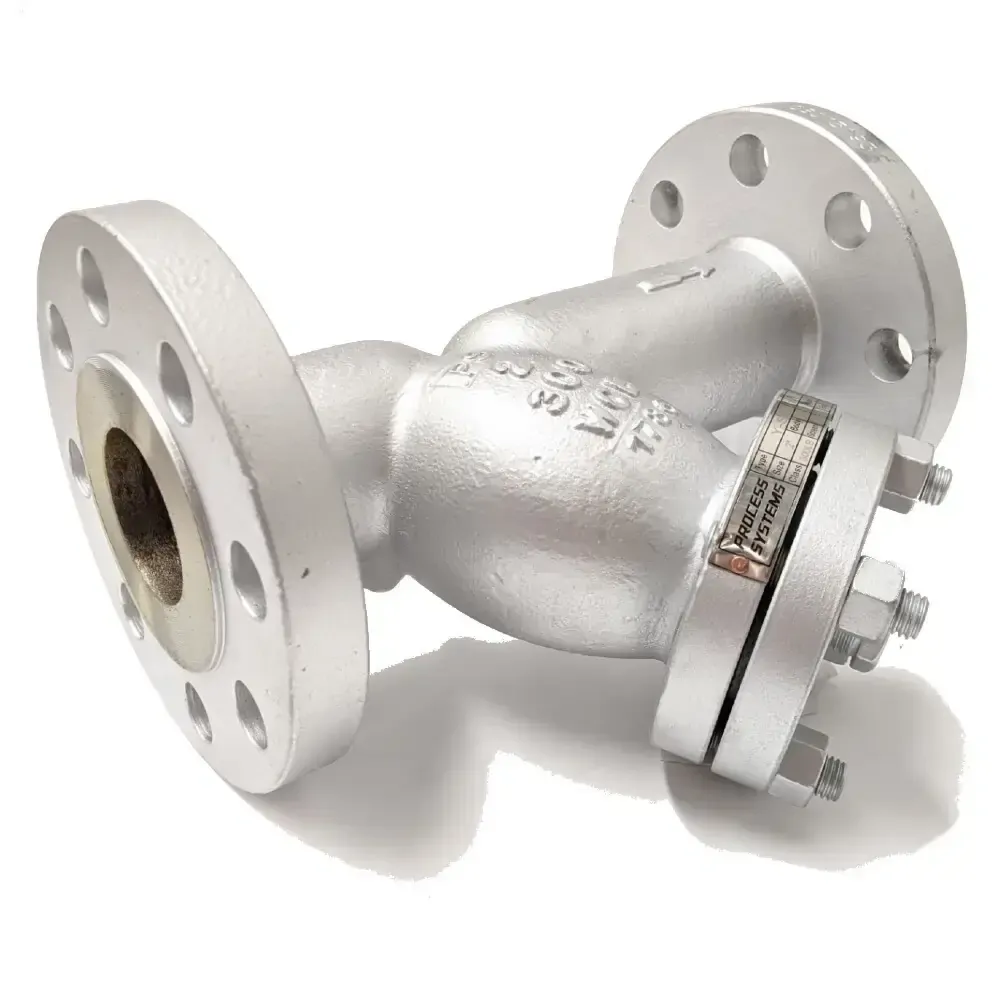

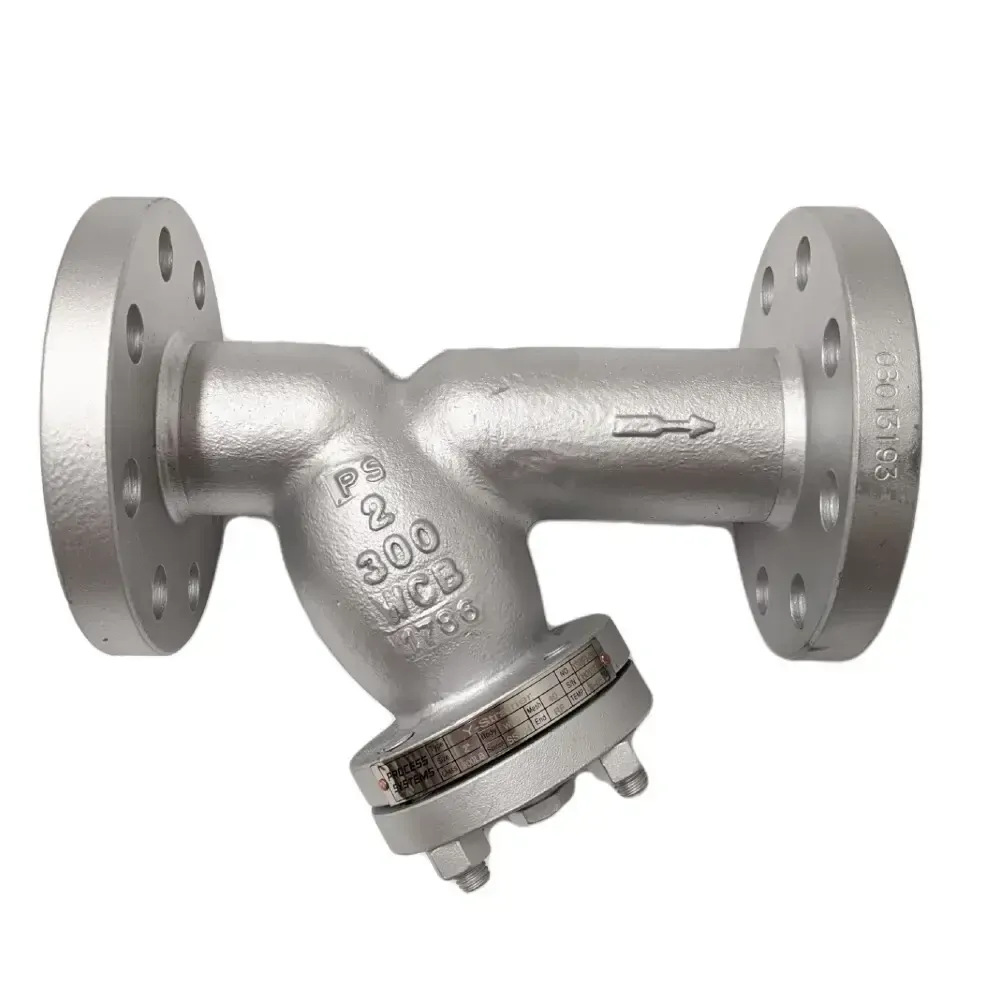

Features:
Size 50mm to 300mm
Body Carbon Steel
Mesh 304 Stainless Steel
Pressure Range 0 to 50 BAR @ ambient
Flanged ANSI 300
Factory Accredited CE, ISO 9001, TUV, WRAS

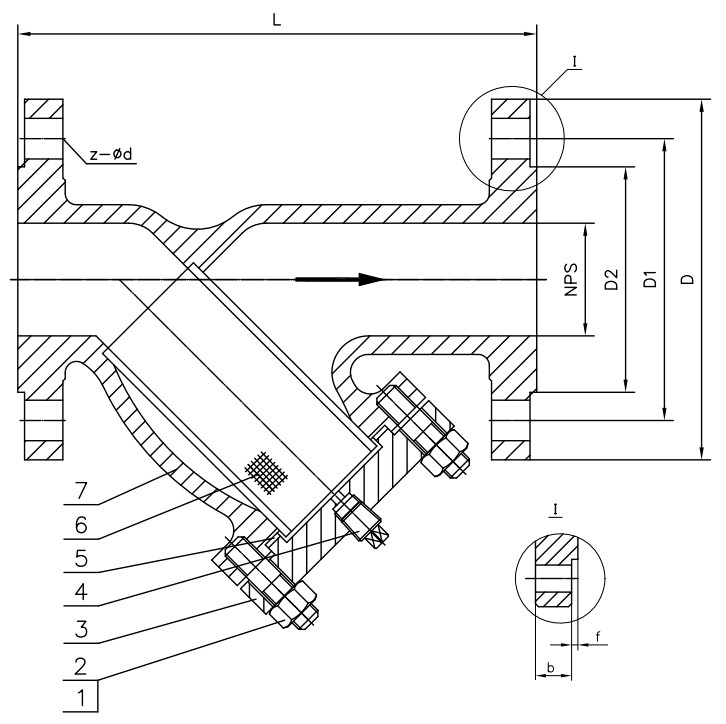

Model | NPS | L | D | D1 | D2 | b | f | z-⌀d |
---|---|---|---|---|---|---|---|---|
YSWF3-050 | 2" | 267 | 165 | 127 | 92.1 | 20.7 | 2 | 8-19 |
YSWF3-065 | 2-1/2" | 292 | 190 | 149.2 | 104.8 | 23.9 | 2 | 8-22 |
YSWF3-080 | 3" | 318 | 210 | 168.3 | 127 | 27 | 2 | 8-22 |
YSWF3-100 | 4" | 356 | 255 | 200 | 157.2 | 30.2 | 2 | 8-22 |
YSWF3-150 | 6" | 444 | 320 | 269.9 | 215.9 | 35 | 2 | 12-22 |
YSWF3-200 | 8" | 559 | 380 | 330.2 | 269.9 | 39.7 | 2 | 12-26 |
YSWF3-250 | 10" | 622 | 445 | 387.4 | 323.8 | 46.1 | 2 | 16-29 |
YSWF3-300 | 12" | 711 | 520 | 450.8 | 381 | 49.3 | 2 | 16-32 |
No | Part Name | Material |
---|---|---|
1 | Bonnet Bolt Nut | ASTM A194 Gr.2H |
2 | Bonnet Bolt | ASTM A193 Gr.B7 |
3 | Bonnet | Carbon Steel |
4 | Plug Fitting | Carbon Steel |
5 | Gasket | Flexible Graphite/304 |
6 | Filter Screen | SS304 |
7 | Body | ASTM A216-WCB |
