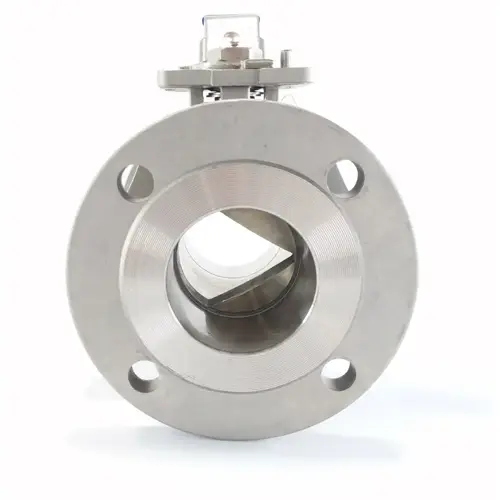

ANSI 300 Flanged V port Stainless Steel Ball Valve

From $280.50

Inc GST
In Stock
Make an Enquiry

  • Two way ANSI 300 Flanged 60 degree V Port 316 Stainless Steel Ball Valve
  • Fire Safe Approved Cert Number 249037
  • Live Loaded Packing & Anti Static Device
  • ISO5211 mounting pad
  • Extra long neck to reduce thermal transfer
  • Tested to API598
Model Size (mm) Media Pressure Media Temperature Torque (Nm)
BLV5FA3-L-RT 20 Vacuum (29" Hg) to 50 Bar (10 BAR Steam) -20°C to 180°C 8
BLV6FA3-L-RT 25 Vacuum (29" Hg) to 50 Bar (10 BAR Steam) -20°C to 180°C 10
BLV7FA3-L-RT 32 Vacuum (29" Hg) to 50 Bar (10 BAR Steam) -20°C to 180°C 14
BLV8FA3-L-RT 40 Vacuum (29" Hg) to 50 Bar (10 BAR Steam) -20°C to 180°C 18
BLV9FA3-L-RT 50 Vacuum (29" Hg) to 50 Bar (10 BAR Steam) -20°C to 180°C 25
BLV10FA3-L-RT 63 Vacuum (29" Hg) to 50 Bar (10 BAR Steam) -20°C to 180°C 48
BLV11FA3-L-RT 80 Vacuum (29" Hg) to 50 Bar (10 BAR Steam) -20°C to 180°C 75
BLV12FA3-L-RT 100 Vacuum (29" Hg) to 50 Bar (10 BAR Steam) -20°C to 180°C 110

For flow rate information please see our references here.

ANSI 300 Flanged Stainless Steel Ball Valve Pressure vs Temperature

ANSI 300 Flanged Stainless Steel Ball Valve Dimensions

Size d L D D1 D2 b f H W C ISO5211 Z-Ød1 h s Kgs
1/2" 15 140 95 66.5 35 14.5 2 82 117 9 F03/F04 4-15 49.5 42.6
3/4" 20 152 117 82.5 43 16 2 87 117 9 F03/F04 4-19 60.5 42.6
1" 25 165 124 89 51 17.5 2 90 164 11 F04/F05 4-19 64 50
1-1/4" 32 178 133 98.5 64 19.5 2 100 164 11 F04/F05 4-19 71 50
1-1/2" 40 190 156 114.5 73 21 2 116 203 14 F05/F07 4-22 80.5 64.5
2" 50 216 165 127 92 22.5 2 125 203 14 F05/F07 8-19 85 64.5
2-1/2" 65 241 190 149 105 25.5 2 164 255 17 F07/F10 8-22 110 93.6
3" 80 283 210 168.5 127 29 2 174 255 17 F07/F10 8-22 122.5 93.6
4" 100 305 254 200 157 32 2 200 302 17 F07/F10 8-22 145.5 93.6

All dimensions in mm unless shown otherwise.

ANSI 300 Flanged Stainless Steel Ball Valve Construction

Item Part Material Qty Item Part Material Qty
1 Cap 1.4408 (CF8M) 1 11 Packing Ring SS304 1
2 Bolt SS304 4(8) 12 Belleville Washer SS301 2
3 Body Gasket Pure Graphite 1 13 Nut Stopper SS304 1
4 Body 1.4408 (CF8M) 1 14 Plate Washer SS304 1
5 Ball SS316 1 15 Nut SS304 2
6 Ball Seat Reinforced PTFE 2 16 Lock Device SS304 1
7 Stem SS316 1 17 Handle SS304 1
8 Thrust Washer Pure PTFE 1 18 Plastic Cover Plastic 1
9 O-ring Viton 1 19 Stop Pin SS304 1
10 Stem Packing Pure Graphite 1

Size 20mm to 100mm
Body 316 Stainless Steel 2 piece 60 degree V port
Seat PTFE
Pressure 50 Bar @ ambient
Temperature -20°C to 180°C
Actuation Lockable Lever

BLVF3

ANSI 300 Flanged V port Stainless Steel Ball Valve

Features:

Size 20mm to 100mm
Body 316 Stainless Steel 2 piece 60 degree V port
Seat PTFE
Pressure 50 Bar @ ambient
Temperature -20°C to 180°C
Actuation Lockable Lever

Description:

  • Two way ANSI 300 Flanged 60 degree V Port 316 Stainless Steel Ball Valve
  • Fire Safe Approved Cert Number 249037
  • Live Loaded Packing & Anti Static Device
  • ISO5211 mounting pad
  • Extra long neck to reduce thermal transfer
  • Tested to API598
Model Size (mm) Media Pressure Media Temperature Torque (Nm)
BLV5FA3-L-RT 20 Vacuum (29" Hg) to 50 Bar (10 BAR Steam) -20°C to 180°C 8
BLV6FA3-L-RT 25 Vacuum (29" Hg) to 50 Bar (10 BAR Steam) -20°C to 180°C 10
BLV7FA3-L-RT 32 Vacuum (29" Hg) to 50 Bar (10 BAR Steam) -20°C to 180°C 14
BLV8FA3-L-RT 40 Vacuum (29" Hg) to 50 Bar (10 BAR Steam) -20°C to 180°C 18
BLV9FA3-L-RT 50 Vacuum (29" Hg) to 50 Bar (10 BAR Steam) -20°C to 180°C 25
BLV10FA3-L-RT 63 Vacuum (29" Hg) to 50 Bar (10 BAR Steam) -20°C to 180°C 48
BLV11FA3-L-RT 80 Vacuum (29" Hg) to 50 Bar (10 BAR Steam) -20°C to 180°C 75
BLV12FA3-L-RT 100 Vacuum (29" Hg) to 50 Bar (10 BAR Steam) -20°C to 180°C 110

For flow rate information please see our references here.

ANSI 300 Flanged Stainless Steel Ball Valve Pressure vs Temperature

.

ANSI 300 Flanged V port Stainless Steel Ball Valve

BLVF3

Dimensions:

ANSI 300 Flanged Stainless Steel Ball Valve Dimensions

Size d L D D1 D2 b f H W C ISO5211 Z-Ød1 h s Kgs
1/2" 15 140 95 66.5 35 14.5 2 82 117 9 F03/F04 4-15 49.5 42.6
3/4" 20 152 117 82.5 43 16 2 87 117 9 F03/F04 4-19 60.5 42.6
1" 25 165 124 89 51 17.5 2 90 164 11 F04/F05 4-19 64 50
1-1/4" 32 178 133 98.5 64 19.5 2 100 164 11 F04/F05 4-19 71 50
1-1/2" 40 190 156 114.5 73 21 2 116 203 14 F05/F07 4-22 80.5 64.5
2" 50 216 165 127 92 22.5 2 125 203 14 F05/F07 8-19 85 64.5
2-1/2" 65 241 190 149 105 25.5 2 164 255 17 F07/F10 8-22 110 93.6
3" 80 283 210 168.5 127 29 2 174 255 17 F07/F10 8-22 122.5 93.6
4" 100 305 254 200 157 32 2 200 302 17 F07/F10 8-22 145.5 93.6

All dimensions in mm unless shown otherwise.

.

ANSI 300 Flanged V port Stainless Steel Ball Valve

BLVF3

Construction:

ANSI 300 Flanged Stainless Steel Ball Valve Construction

Item Part Material Qty Item Part Material Qty
1 Cap 1.4408 (CF8M) 1 11 Packing Ring SS304 1
2 Bolt SS304 4(8) 12 Belleville Washer SS301 2
3 Body Gasket Pure Graphite 1 13 Nut Stopper SS304 1
4 Body 1.4408 (CF8M) 1 14 Plate Washer SS304 1
5 Ball SS316 1 15 Nut SS304 2
6 Ball Seat Reinforced PTFE 2 16 Lock Device SS304 1
7 Stem SS316 1 17 Handle SS304 1
8 Thrust Washer Pure PTFE 1 18 Plastic Cover Plastic 1
9 O-ring Viton 1 19 Stop Pin SS304 1
10 Stem Packing Pure Graphite 1
