ANSI 300 Stainless Steel Flanged Spring Return Fire Safe Ball Valve

From $297.00

Inc GST
In Stock
Make an Enquiry
  • Two way ANSI 300 Flanged 316 Stainless Steel Spring Return Pneumatic Ball Valve
  • Fire Safe Approved API607 Sixth Edition Cert. 230679
  • Anodised Aluminium Actuator
  • Namur Interface, Adjustable Stops & Visual Indicator
  • Reinforced PTFE seats
  • Tested to API598
Model Size (mm) Actuator Media Pressure Media Temperature Actuator Pressure Actuator Port Size
BLS54FA300-SR-RT 15 SR50 Vacuum (29" Hg) to 50 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLS55FA300-SR-RT 20 SR63 Vacuum (29" Hg) to 50 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLS56FA300-SR-RT 25 SR63 Vacuum (29" Hg) to 50 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLS57FA300-SR-RT 32 SR75 Vacuum (29" Hg) to 50 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLS58FA300-SR-RT 40 SR75 Vacuum (29" Hg) to 50 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLS59FA300-SR-RT 50 SR88 Vacuum (29" Hg) to 50 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLS510FA300-SR-RT 63 SR100 Vacuum (29" Hg) to 50 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/4"
BLS511FA300-SR-RT 80 SR115 Vacuum (29" Hg) to 50 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/4"
BLS512FA300-SR-RT 100 SR145 Vacuum (29" Hg) to 50 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/4"

For Sprung Open the ‘5’ in the product code changes to a ‘6’.

ANSI 300 Flanged Stainless Steel Ball Valve Pressure vs Temperature

Spring Return Flanged Fire Safe Stainless Steel Ball Valve

Model Size (mm) Actuator Ød L f b Z-Ød1 ØD ØD1 ØD2 h J K P
BLSF54FA300-SR-RT 15 SR50 15 140 2 14.5 4-Ø15 95 66.5 35 48 90 138 1/8"
BLSF55FA300-SR-RT 20 SR63 20 152 2 16 4-Ø19 117 82.5 43 53 100 162 1/8"
BLSF56FA300-SR-RT 25 SR63 25 165 2 17.5 4-Ø19 124 89 51 58.5 100 162 1/8"
BLSF57FA300-SR-RT 32 SR75 32 178 2 19.5 4-Ø19 133 98.5 64 71 117 208 1/8"
BLSF58FA300-SR-RT 40 SR75 40 190 2 21 4-Ø22 156 114.5 73 76.5 117 208 1/8"
BLSF59FA300-SR-RT 50 SR88 50 216 2 22.5 8-Ø19 165 127 92 85 136 245 1/8"
BLSF510FA300-SR-RT 65 SR100 65 241 2 25.5 8-Ø22 190 149 105 110 142 266 1/8"
BLSF511FA300-SR-RT 80 SR115 80 283 2 29 8-Ø22 210 168.5 127 122.5 172 310 1/4"
BLSF512FA300-SR-RT 100 SR145 100 305 2 32 8-Ø22 254 200 157 145.5 209 401 1/4"

All dimension in mm unless shown otherwise.

Spring Return Flanged Fire Safe Stainless Steel Ball Valve

Item Description Material
1 Cap WCB
2 Bolt SS304
3 Body Gasket Pure Graphite
4 Body WCB
5 Ball SS316
6 Ball Seat R-PTFE(15%)
7 Stem SS316
Item Description Material
8 Thrust Washer PTFE
9 O-Ring Viton
10 Stem Packing Pure Graphite
11 Packing Ring SS304
12 Belleville Washer SS301
13 Nut Stopper SS304
14 Nut SS304
15 Pnuematic Actuator Anodized Aluminium



Size 15mm to 100mm
Body 316 Stainless Steel
Seat PTFE
Pressure 50 Bar @ ambient
Temperature -20°C to 180°C
Actuation Spring Return Pnuematic
Fire Safe API607 Approved

BLSF3SR

ANSI 300 Stainless Steel Flanged Spring Return Fire Safe Ball Valve

Features:

Size 15mm to 100mm
Body 316 Stainless Steel
Seat PTFE
Pressure 50 Bar @ ambient
Temperature -20°C to 180°C
Actuation Spring Return Pnuematic
Fire Safe API607 Approved

Description:

  • Two way ANSI 300 Flanged 316 Stainless Steel Spring Return Pneumatic Ball Valve
  • Fire Safe Approved API607 Sixth Edition Cert. 230679
  • Anodised Aluminium Actuator
  • Namur Interface, Adjustable Stops & Visual Indicator
  • Reinforced PTFE seats
  • Tested to API598
Model Size (mm) Actuator Media Pressure Media Temperature Actuator Pressure Actuator Port Size
BLS54FA300-SR-RT 15 SR50 Vacuum (29" Hg) to 50 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLS55FA300-SR-RT 20 SR63 Vacuum (29" Hg) to 50 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLS56FA300-SR-RT 25 SR63 Vacuum (29" Hg) to 50 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLS57FA300-SR-RT 32 SR75 Vacuum (29" Hg) to 50 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLS58FA300-SR-RT 40 SR75 Vacuum (29" Hg) to 50 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLS59FA300-SR-RT 50 SR88 Vacuum (29" Hg) to 50 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLS510FA300-SR-RT 63 SR100 Vacuum (29" Hg) to 50 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/4"
BLS511FA300-SR-RT 80 SR115 Vacuum (29" Hg) to 50 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/4"
BLS512FA300-SR-RT 100 SR145 Vacuum (29" Hg) to 50 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/4"

For Sprung Open the ‘5’ in the product code changes to a ‘6’.

ANSI 300 Flanged Stainless Steel Ball Valve Pressure vs Temperature

.

ANSI 300 Stainless Steel Flanged Spring Return Fire Safe Ball Valve

BLSF3SR

Dimensions:

Spring Return Flanged Fire Safe Stainless Steel Ball Valve

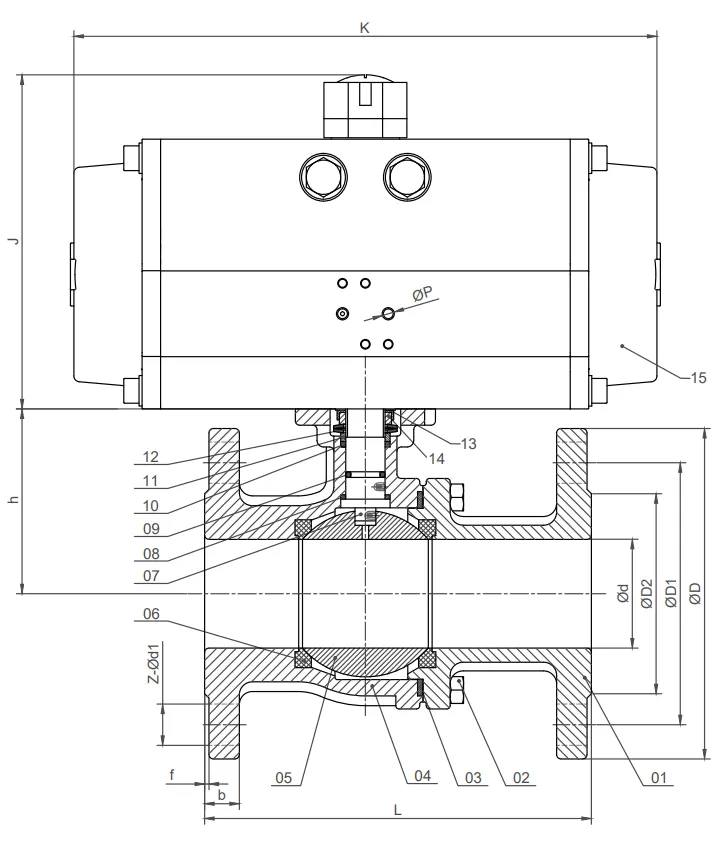

Model Size (mm) Actuator Ød L f b Z-Ød1 ØD ØD1 ØD2 h J K P
BLSF54FA300-SR-RT 15 SR50 15 140 2 14.5 4-Ø15 95 66.5 35 48 90 138 1/8"
BLSF55FA300-SR-RT 20 SR63 20 152 2 16 4-Ø19 117 82.5 43 53 100 162 1/8"
BLSF56FA300-SR-RT 25 SR63 25 165 2 17.5 4-Ø19 124 89 51 58.5 100 162 1/8"
BLSF57FA300-SR-RT 32 SR75 32 178 2 19.5 4-Ø19 133 98.5 64 71 117 208 1/8"
BLSF58FA300-SR-RT 40 SR75 40 190 2 21 4-Ø22 156 114.5 73 76.5 117 208 1/8"
BLSF59FA300-SR-RT 50 SR88 50 216 2 22.5 8-Ø19 165 127 92 85 136 245 1/8"
BLSF510FA300-SR-RT 65 SR100 65 241 2 25.5 8-Ø22 190 149 105 110 142 266 1/8"
BLSF511FA300-SR-RT 80 SR115 80 283 2 29 8-Ø22 210 168.5 127 122.5 172 310 1/4"
BLSF512FA300-SR-RT 100 SR145 100 305 2 32 8-Ø22 254 200 157 145.5 209 401 1/4"

All dimension in mm unless shown otherwise.

.

ANSI 300 Stainless Steel Flanged Spring Return Fire Safe Ball Valve

BLSF3SR

Construction:

Spring Return Flanged Fire Safe Stainless Steel Ball Valve

Item Description Material
1 Cap WCB
2 Bolt SS304
3 Body Gasket Pure Graphite
4 Body WCB
5 Ball SS316
6 Ball Seat R-PTFE(15%)
7 Stem SS316
Item Description Material
8 Thrust Washer PTFE
9 O-Ring Viton
10 Stem Packing Pure Graphite
11 Packing Ring SS304
12 Belleville Washer SS301
13 Nut Stopper SS304
14 Nut SS304
15 Pnuematic Actuator Anodized Aluminium
