Features:
Size 1/2" to 1" BSP
Body 316 Stainless Steel
Seat PTFE
Pressure 10 BAR
Temperature 0°C to 90°C
Actuation Capacitor Return Low voltage
Model | Size (BSP) | Size (mm) | Media Pressure | Media Temperature |
---|---|---|---|---|
BASM54B-EL-T | 1/2" | 15 | 0 to 10 Bar | 2°C to 90°C |
BASM55B-EL-T | 3/4" | 20 | 0 to 10 Bar | 2°C to 90°C |
BASM56B-EL-T | 1" | 20 | 0 to 10 Bar | 2°C to 90°C |
*For Normally Open function change '5' to a '6'
Body Material | 316 S.S |
---|---|
Ball Material | 316 S.S |
Seat Material | PTFE with Viton O’Ring |
Enclosure | Thermoplastic IP67 |
Current | 5 Watt Max (45 ~ 100 mA) |
Current Draw at rest (open or close position) | 20 Milli Amp |
Capacitor Charge Time | 30 Seconds |
Open/Close Time | 5 Seconds |
Mounting | Any Attitude |
Media Pressure | 10 BAR Max |
Media Temperature | 0°C to 90°C |

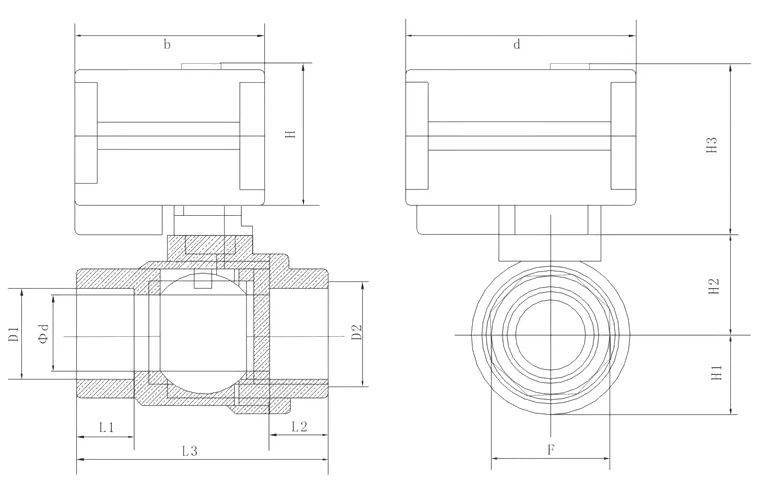

DN | D1 (BSP) | ød | L1 | L2 | L3 | F | H1 | H2 | H3 | b | d | W (kg) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
15 | ½” | 15 | 11 | 11 | 53.5 | 27 | 16 | 22 | 50 | 52 | 62 | 0.35 |
20 | ¾” | 20 | 10 | 10 | 61 | 30 | 21.5 | 21.5 | 50 | 52 | 62 | 0.35 |
25 | 1” | 20 | 16 | 16 | 73 | 38 | 25.5 | 25.5 | 50 | 52 | 62 | 0.5 |
