SKU: GVB

Brass Gate Valve

From $15.40

Inc GST
In Stock
Make an Enquiry
  • Brass BSP Threaded Gate Valve
  • Metal to Metal Seat
  • PTFE Gland
  • 0 to 16 Bar Pressure Range
  • -20°C to 120°C Temperature Range

Brass Threaded Gate Valve

Size DN A B H T W (kg)
1/2" 14.5 13 44 78 53 0.3
3/4" 19 13 49 82 53 0.4
1" 25 15.5 54.5 95 60 0.5
1-1/4" 30 16.5 60 116 72 0.8
1-1/2" 37 17 61 121 72 1.0
2" 47 20 70.5 150 87 1.6
2 ½” 62 22 87 192 96 2.7
3” 76 26 97 205 107 3.6
4” 97 30 110 260 126 5.9

All dimensions in mm unless shown otherwise.

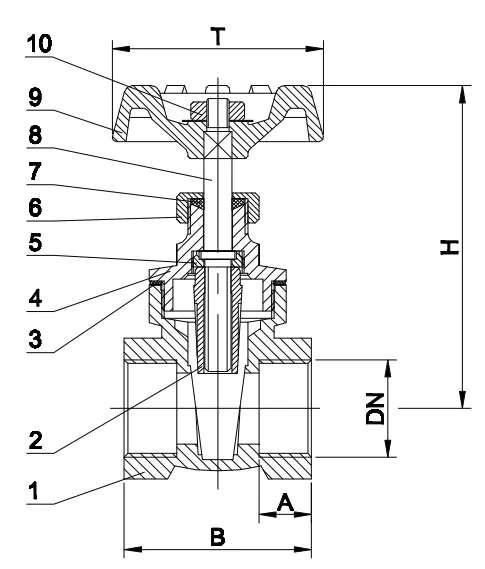

Brass Threaded Gate Valve Construction

Item Part Material
1 Body Brass
2 Disc Brass
3 Seal PTFE
4 Cap Brass
5 Lock Nut Brass
6 Cap Brass
7 Seat PTFE
8 Stem Brass
9 Handle Steel
10 Screw Steel

Size 1/2" to 4" BSP
Body Brass
Seat Metal
Pressure Range 0 to 16 BAR

GVB

Brass Gate Valve

Features:

Size 1/2" to 4" BSP
Body Brass
Seat Metal
Pressure Range 0 to 16 BAR

Description:

  • Brass BSP Threaded Gate Valve
  • Metal to Metal Seat
  • PTFE Gland
  • 0 to 16 Bar Pressure Range
  • -20°C to 120°C Temperature Range
.

Brass Gate Valve

GVB

Dimensions:

Brass Threaded Gate Valve

Size DN A B H T W (kg)
1/2" 14.5 13 44 78 53 0.3
3/4" 19 13 49 82 53 0.4
1" 25 15.5 54.5 95 60 0.5
1-1/4" 30 16.5 60 116 72 0.8
1-1/2" 37 17 61 121 72 1.0
2" 47 20 70.5 150 87 1.6
2 ½” 62 22 87 192 96 2.7
3” 76 26 97 205 107 3.6
4” 97 30 110 260 126 5.9

All dimensions in mm unless shown otherwise.

.

Brass Gate Valve

GVB

Construction:

Brass Threaded Gate Valve Construction

Item Part Material
1 Body Brass
2 Disc Brass
3 Seal PTFE
4 Cap Brass
5 Lock Nut Brass
6 Cap Brass
7 Seat PTFE
8 Stem Brass
9 Handle Steel
10 Screw Steel

WARNING

These products are intended for use in industrial applications only. Do not use these products where pressures and temperatures can exceed those listed under ‘Technical Data’ and in our individual ‘Series’ data sheets. Before using these products with fluids other than these specified, for non-industrial applications, life-support systems, or other applications not within published specifications, consult PCIPro Through misuse, age, or malfunction, components used in industrial valve applications can fail in various modes. The system designer is warned to consider the failure modes of all component parts used in industrial valve applications and to provide adequate safeguards to prevent personal injury or damage to equipment in the event of such failure. System designers must provide a warning to the user in the system instructional manual if protection against a failure mode cannot be adequately provided. System designers and end users are cautioned to review specific warnings or specifications found in instruction sheets or labels packed or attached and shipped with the products. Our policy is one of continuous research and development. We therefore reserve the right to amend without notice the specifications given in this document or our individual ‘Series’ data sheets.
