SKU: B35

Brass General Purpose Normally Closed Differential Solenoid Valve

From $77.00

Inc GST
In Stock
Make an Enquiry
  • General Purpose 2 way Normally Closed (power to open) Solenoid Valve
  • Brass Body, NBR Seals
  • 0.3 to 10 Bar up to 1/2", 0.6 to 16 Bar above
  • 0°C to 80°C Temperature Range
  • For Gases & Liquids
  • Comes with Coil (SC-N12) & LED DIN Plug (IP65)
  • Install in any orientation (upright if possible)

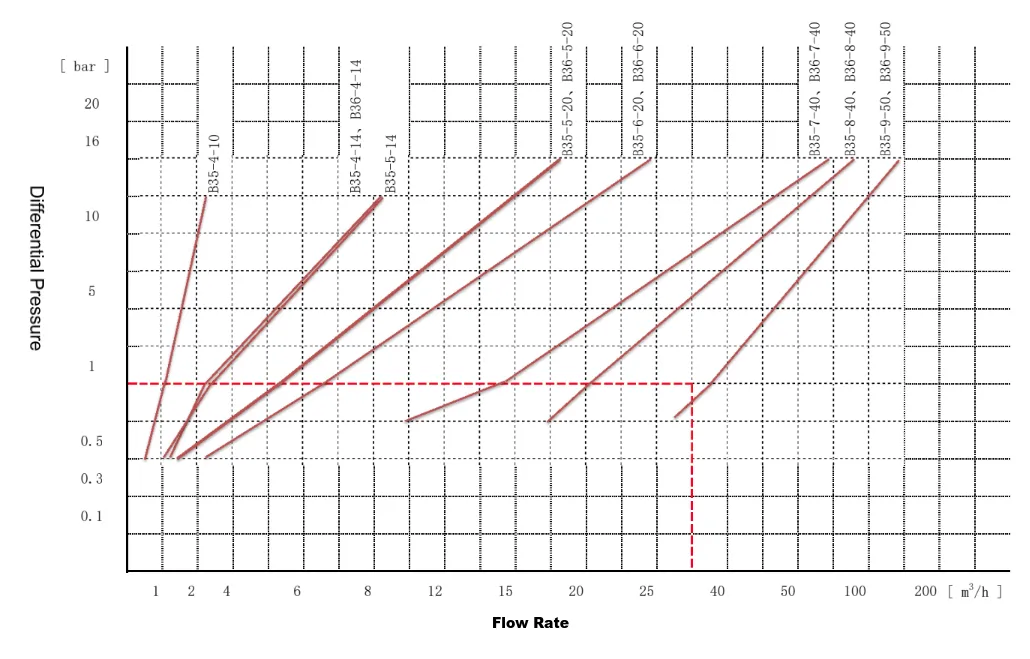

B35 Differential Solenoid Valve Flow Rate

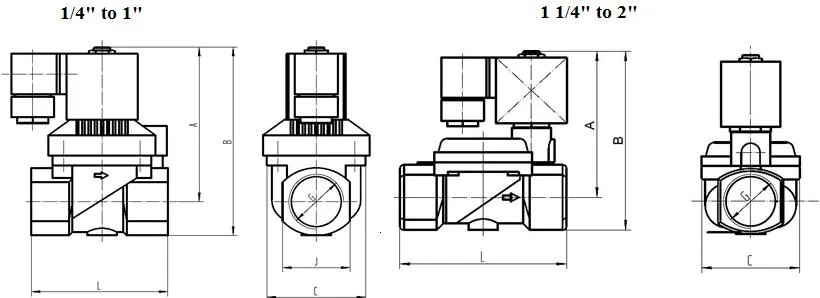

Brass Normally Closed General Purpose Differential Solenoid Valve

Model G (BSP) L A B C Weight (kg)
B35-2-10-*N 1/4 50 85 100 40 0.55
B35-3-10-*N 3/8 50 85 100 40 0.55
B35-4-10-*N 1/2 50 85 100 40 0.55
B35-4-14-*N 1/2 66 90 112 45 0.65
B35-5-14-*N 3/4 58 90 112 45 0.65
B35-5-20-*N 3/4 82 95 115 60 1.3
B35-6-20-*N 1 82 95 115 60 1.3
B35-7-40-*N 1 ¼ 135 108 137 92 2.45
B35-8-40-*N 1 ½ 135 108 137 92 2.85
B35-9-50-*N 2 160 119 153 108 4.25

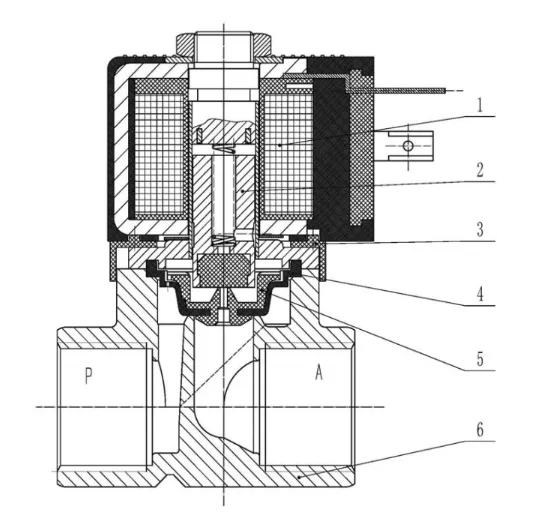

B35-2-10 to B35-4-10

Brass Normally Closed Solenoid Valve Construction

Number Item Material
1 Coil Epoxy
2 Armature Martensitic stainless steel
3 Bonnet Nylon
4 Diaphragm NBR
5 Diaphragm Support Nylon
6 Valve Body Brass

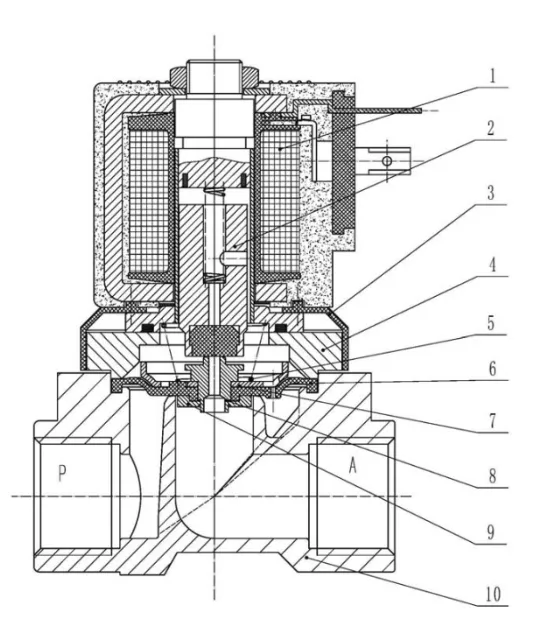

B35-4-14 & B35-5-14

Brass Normally Closed Solenoid Valve Construction 1/2"

Number Item Material
1 Coil Epoxy
2 Armature Martensitic stainless steel
3 Bonnet Nylon
4 Valve Cover Brass
5 Spring 304 Stainless Steel
6 Diaphragm NBR
7,8,9 Diaphragm Support Brass & Stianless Steel
10 Valve Body Brass

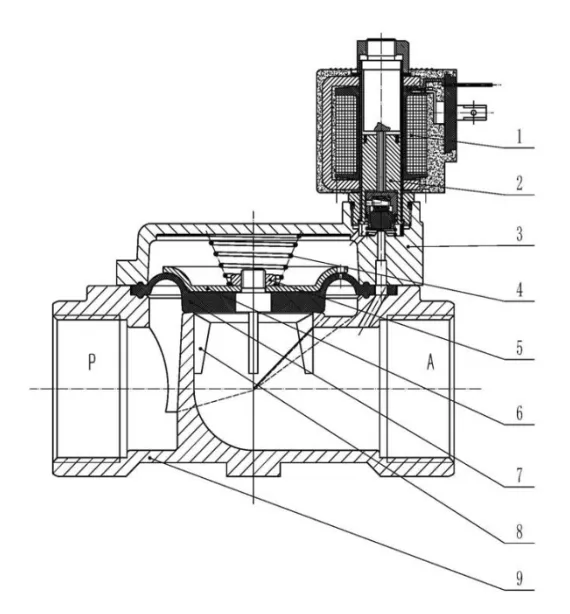

B35-5-20 to B35-9-50

Brass Normally Closed Solenoid Valve Construction

Number Item Material
1 Coil Epoxy
2 Armature Martensitic stainless steel
3 Valve Cover Brass
4 Spring 304 Stainless Steel
5,6,8 Diaphragm Support Brass & Stainless Steel
7 Diaphragm NBR
9 Valve Body Brass

Size 1/4" to 2" BSP
Function Normally Closed (power to open)
Valve Operation Servo Assisted
Body Brass
Seat NBR
Pressure Range 0.3 to 16 BAR
Media Non aggressive media

.
.
