SKU: B36

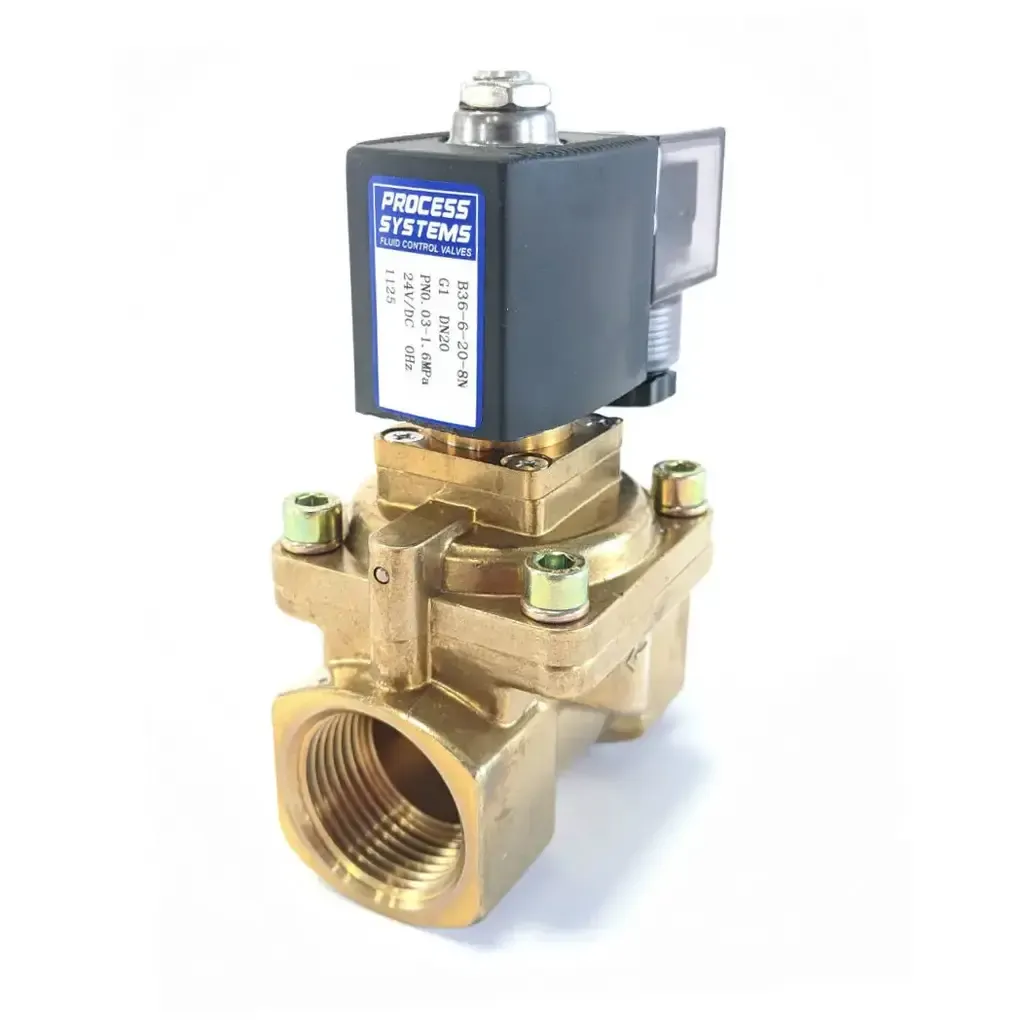

Brass General Purpose Normally Open Differential Solenoid Valve

From $104.50

Inc GST
In Stock
Make an Enquiry
  • General Purpose 2 way Normally Open (power to close) Solenoid Valve
  • Brass Body, NBR Seals
  • 0.3 to 16 Bar up to 1", 0.7 to 16 Bar above
  • 0°C to 80°C Temperature Range
  • For Gases & Liquids
  • Comes with Coil & LED DIN Plug (IP65)
  • Install in any orientation (upright if possible)

B36 Normally Open Differential Solenoid Valve Flow Rate



General Purpose Normally Open Solenoid Valve

Model G (BSP) L (mm) A (mm) B (mm) C (mm) Weight (Kg)
B36-2-14-*N 1/4 64 102 115 40 0.9
B36-3-14-*N 3/8 64 102 115 40 0.9
B36-4-14-*N 1/2 64 102 115 40 0.7
B36-5-20-*N 3/4 82 110 132 60 1.3
B36-6-20-*N 1 82 110 132 60 1.3
B36-7-40-*N 1 ¼ 135 113 142 92 2.1
B36-8-40-*N 1 ½ 135 113 142 92 2.8
B36-9-50-*N 2 160 124 158 108 4.2

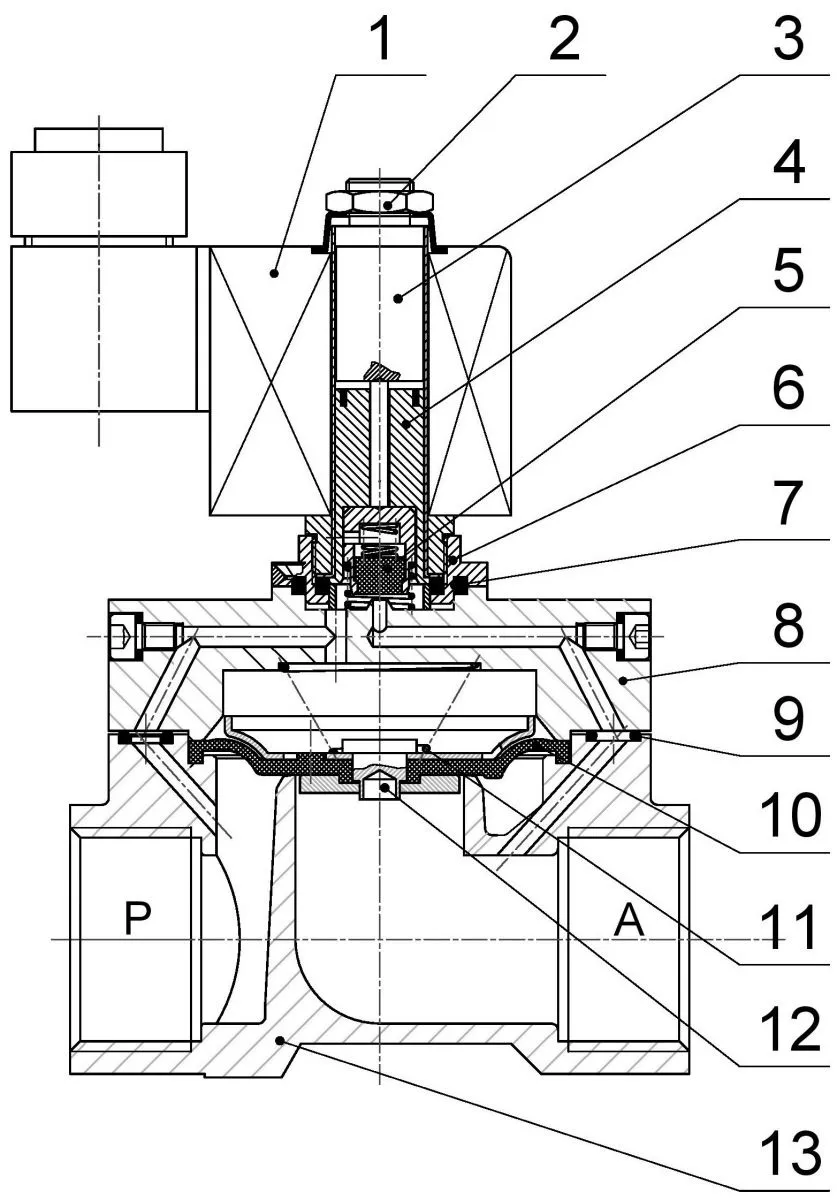

1/4" to 1"



Item Description Qty Material
1 Coil 1 N/A
2 Lock 1 316
3 Stopper 1 0Cr18Mo2Ca
4 Magnetic Core 1 0Cr18Mo2Ca
5 Armature Seal 1 NBR
6 Cover 1 316
7 Seal 1 NBR
8 Valve Cover 1 HPb58-2A
9 O-Ring 1 NBR
10 Diaphragm 1 NBR
11 Spring 1 316
12 Diaphragm Holder 1 316
13 Valve Body 1 HPb58-2A

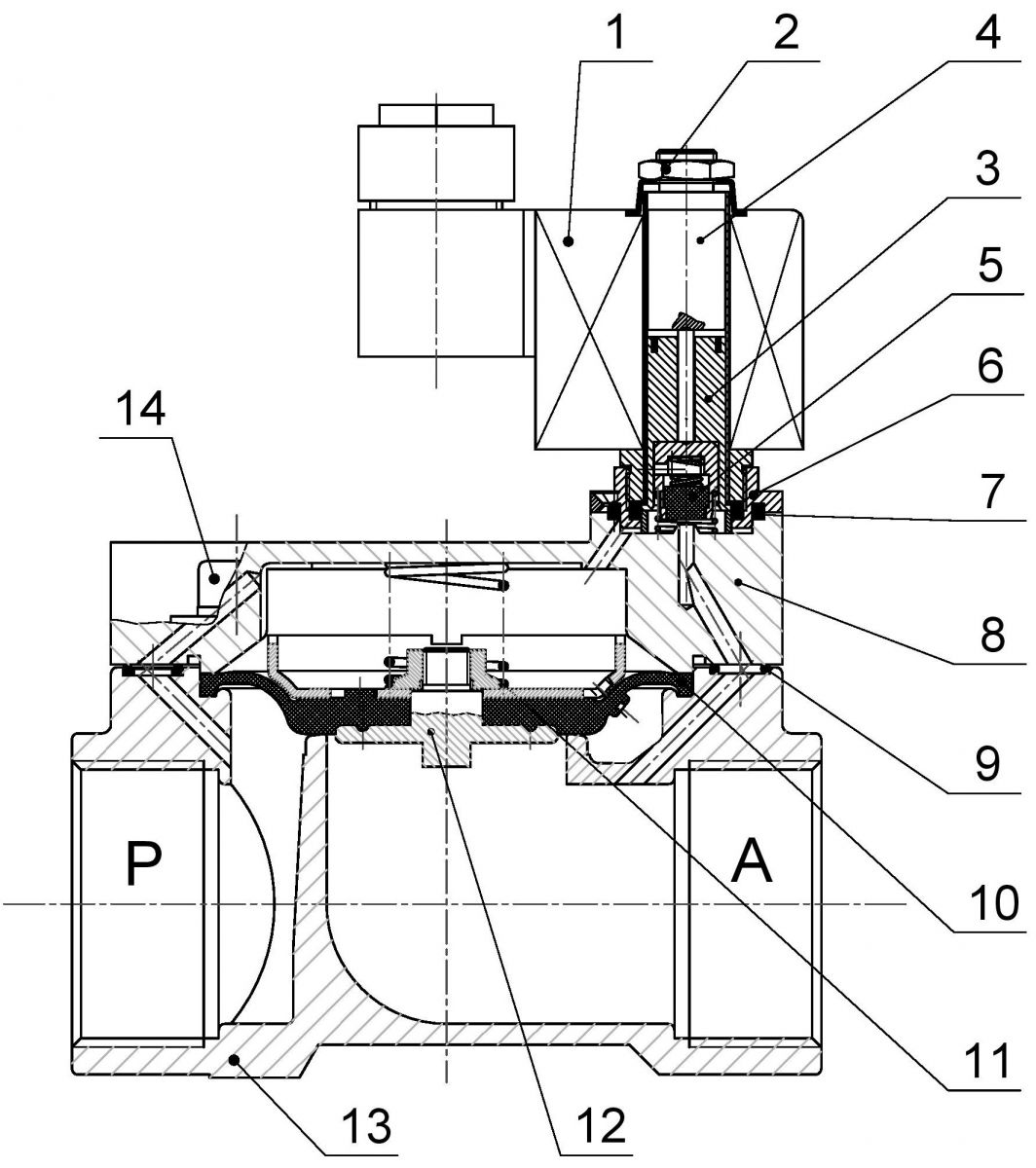

1-1/4" to 2"

Item Description Qty Material
1 Coil 1 N/A
2 Lock 1 316
3 Stopper 1 0Cr18Mo2Ca
4 Magnetic Core 1 0Cr18Mo2Ca
5 Armature Seal 1 NBR
6 Cover 1 316
7 Seal 1 NBR
8 Valve Cover 1 HPb58-2A
9 O-Ring 1 NBR
10 Diaphragm 1 NBR
11 Spring 1 316
12 Diaphragm Holder 1 316
13 Valve Body 1 HPb58-2A
14 Socket Head Cap Screw 4 316

Size 1/4" to 2" BSP
Function Normally Open (power to close)
Valve Operation Servo Assisted
Body Brass
Seat NBR
Pressure Range 0.3 to 16 BAR
Media Non aggressive media

.
.
