SKU: B75H

Brass High Pressure 40 BAR Normally Closed Solenoid Valve

From $456.50

Inc GST
In Stock
Make an Enquiry
  • 2 way Differential Normally Closed (power to open) Piston Solenoid Valve
  • Brass Body, PTFE Seals, Stainless Seat
  • 0.5 to 40 Bar Pressure Range
  • -10°C to 120°C Temperature Range
  • Comes with Coil & LED DIN Plug (IP65)
  • Install in any orientation (upright if possible)
  • Suitable for High Pressure Applications

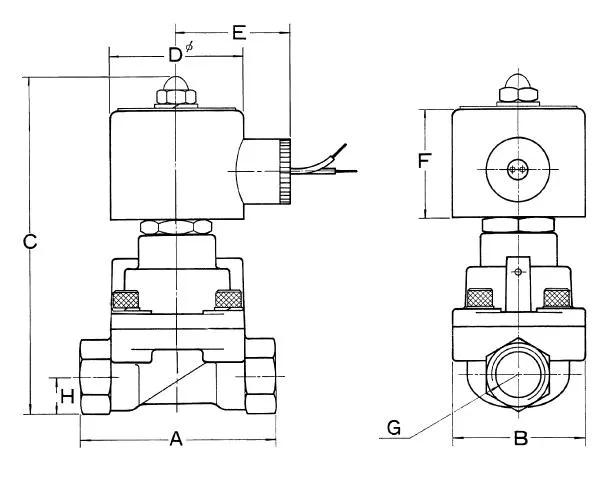

Brass High Pressure Solenoid Valve Normally Closed Dimensions

Model A B C D E F G (BSP) H Weight Kg
B75H-4-15-*T 75 52 129 53 47 43 1/2" 14.5 1.13
B75H-5-20-*T 85 60 141 53 47 43 3/4" 18 1.53
B75H-6-25-*T 100 70 148 53 47 43 1” 23 1.85
B75H-7-35-*T 120 90 168 53 47 43 11/4" 33 3.35
B75H-8-35-*T 120 90 168 53 47 43 11/2" 33 3.30
B75H-9-50-*T 150 120 203 53 47 43 2” 40.5 6.85

All dimensions in mm unless otherwise shown.

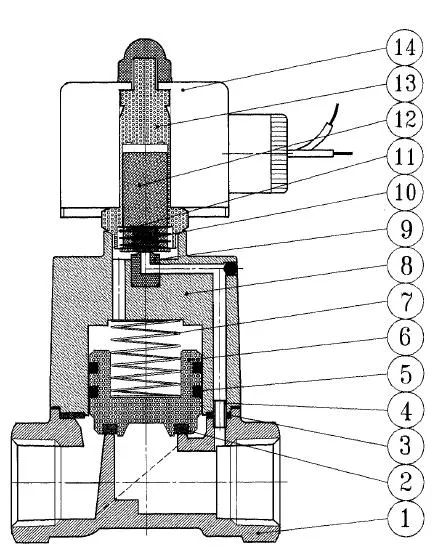

Brass Normally Closed High Pressure Solenoid Valve Construction

No. Item Material
1 Valve Body Forged Brass
2 Piston Seat Teflon®
3 Leak proof Gasket Teflon®
4 Fixed Pin Stainless Steel
5 Piston Ring MoS 2+Teflon®
6 Piston Brass
7 Spring Stainless Steel
8 Valve Bonnet Forged Brass
9 Sleeve Stainless Steel
10 Seat Teflon®
11 Spring SUS 304
12 Armature Core Stainless Steel
13 Solenoid Tube Stainless Steel
14 Coil Brass Wire

Size 1/2" to 2" BSP
Function Normally Closed (power to open)
Valve Operation Servo Assisted
Body Forged Brass
Seat PTFE
Pressure Range 0.5 to 40 BAR
Media Non aggressive media

.
.
