SKU: B55D

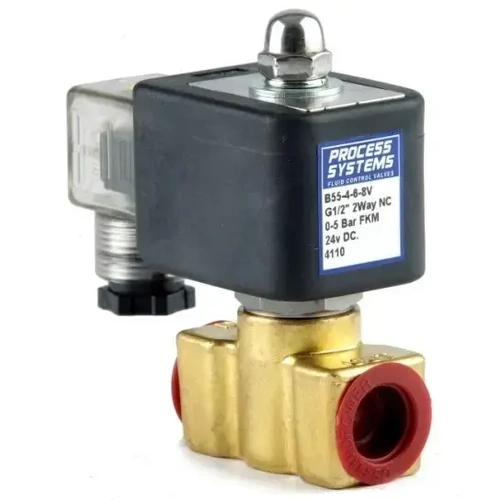

Brass Petrochemical Normally Closed Direct Acting Solenoid Valve

From $93.50

Inc GST
In Stock
Make an Enquiry
  • 2 way Direct Acting Normally Closed (power to open) Solenoid Valve
  • Brass Body, FKM seat
  • -10°C to 100°C Temperature Range
  • Comes with Coil & LED DIN Plug (IP65)
  • Install in any orientation (upright if possible)
Model Port Size BSP Orifice ømm CV Pressure (BAR) Coil Specifications
B55-2-3-*V 1/4" 3 0.26 0 to 10 SC-C1
14.4 Watts
15 Volt Amps
Class H Insulation
B55-2-4-*V 1/4" 4 0.58 0 to 7
B55-2-5-*V 1/4" 5 0.64 0 to 5
B55-3-4-*V 3/8" 4 0.58 0 to 10 SC-C2
24 Watts
24.4 Volt Amps
Class H Insulation
B55-3-6-*V 3/8" 6 0.79 0 to 5
B55-3-8-*V 3/8" 8 0.97 0 to 2
B55-4-6-*V 1/2" 6 0.79 0 to 5
B55-4-8-*V 1/2" 8 0.97 0 to 2

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC

For Installation and Maintenance instructions please click here or find in our References section under Valve Installation and Maintenance for Solenoid Valves.

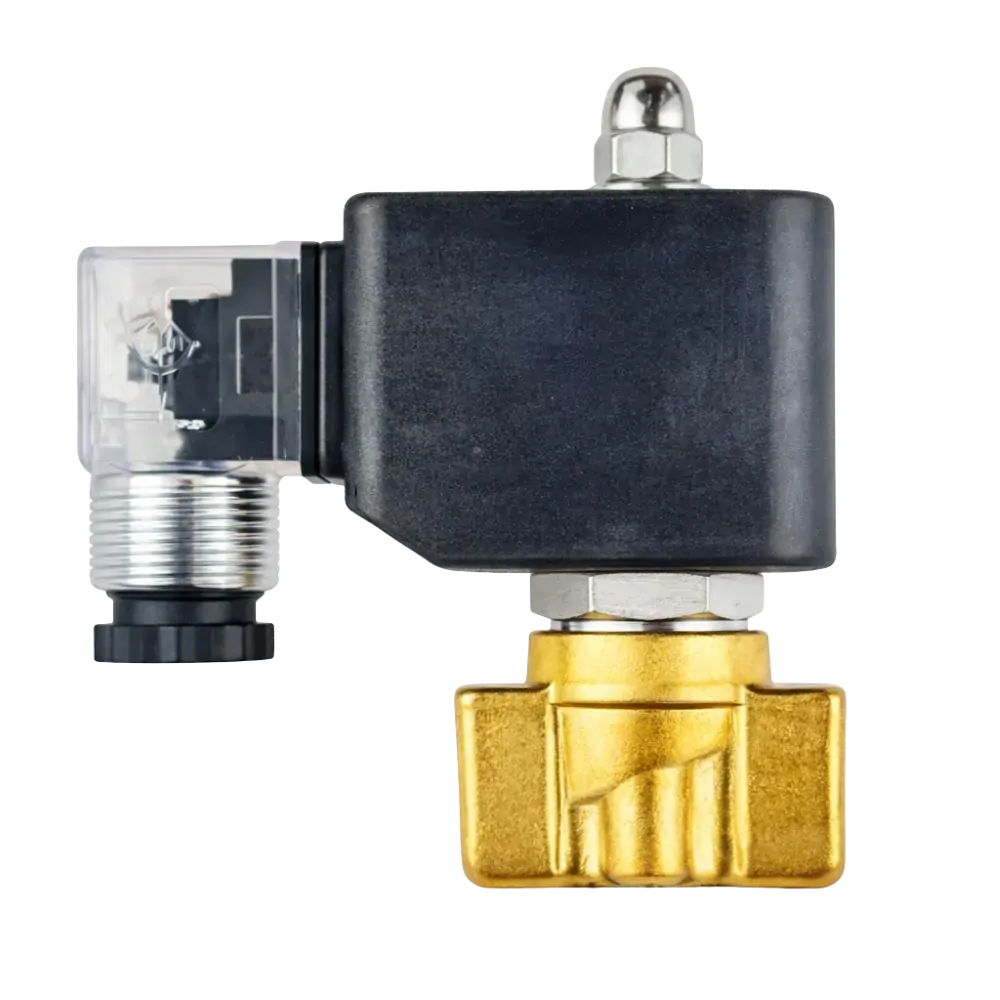

Brass direct acting solenoid valve

Model G (BSP) A B C H Weight Kg
B55-2-3-*V 1/4" 41 19 86.5 10.5 0.45
B55-2-4-*V 1/4" 41 19 86.5 10.5 0.45
B55-2-5-*V 1/4" 41 19 86.5 10.5 0.45
B55-3-4-*V 3/8" 50 25 91 11.7 0.75
B55-3-6-*V 3/8" 50 25 91 11.7 0.75
B55-3-8-*V 3/8" 50 25 91 11.7 0.75
B55-4-6-*V 1/2" 50 27 91 13 0.80
B55-4-8-*V 1/2" 50 27 91 13 0.80

All dimensions in mm unless otherwise stated.

Brass direct acting 2 way solenoid valve construction

Item Article Material
1 Operator Stainless Steel
2 Armature Stainless Steel
3 Coil Brass Wire
4 Seat Viton
5 Spring Stainless Steel
6 Body Forged Brass

Size 1/4" to 1/2" BSP
Function Normally Closed (power to open)
Valve Operation Direct Acting
Body Forged Brass
Seat FKM
Pressure Range 0 to 10 BAR
Media Petrochemical

.
.
