SKU: B55

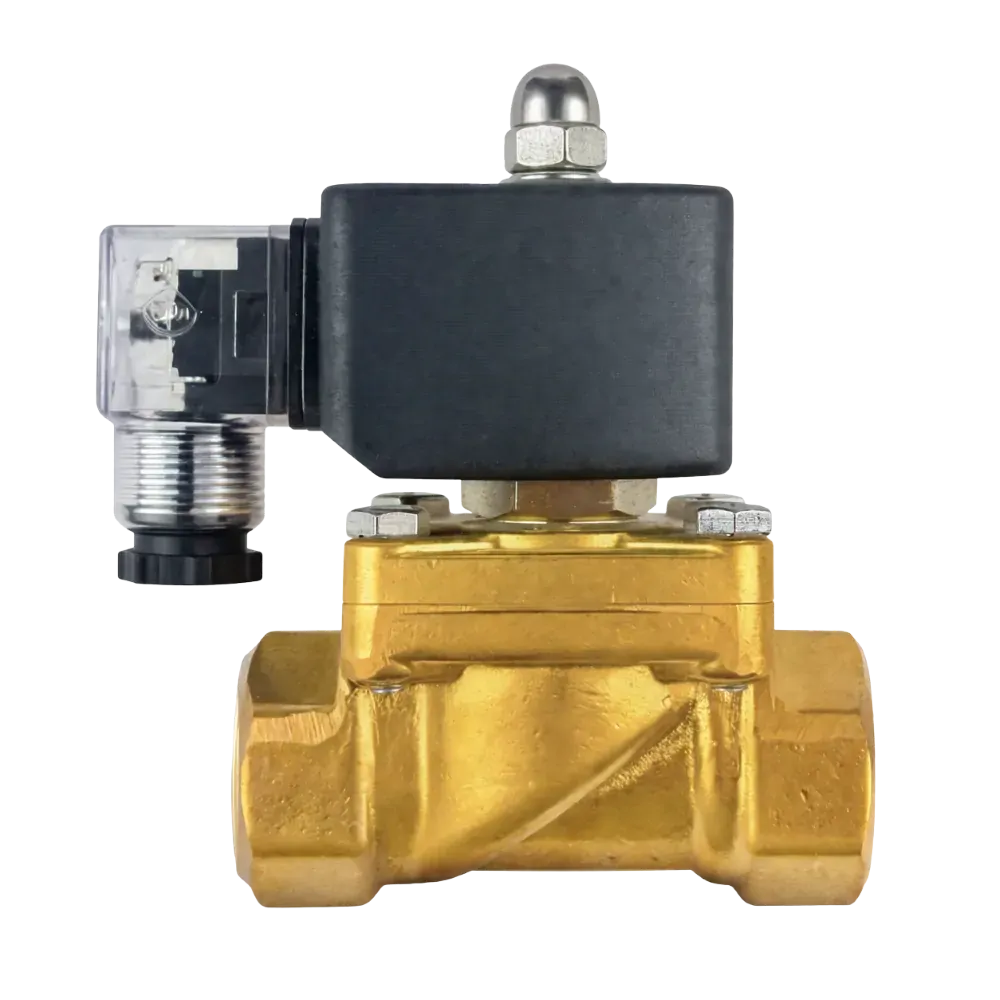

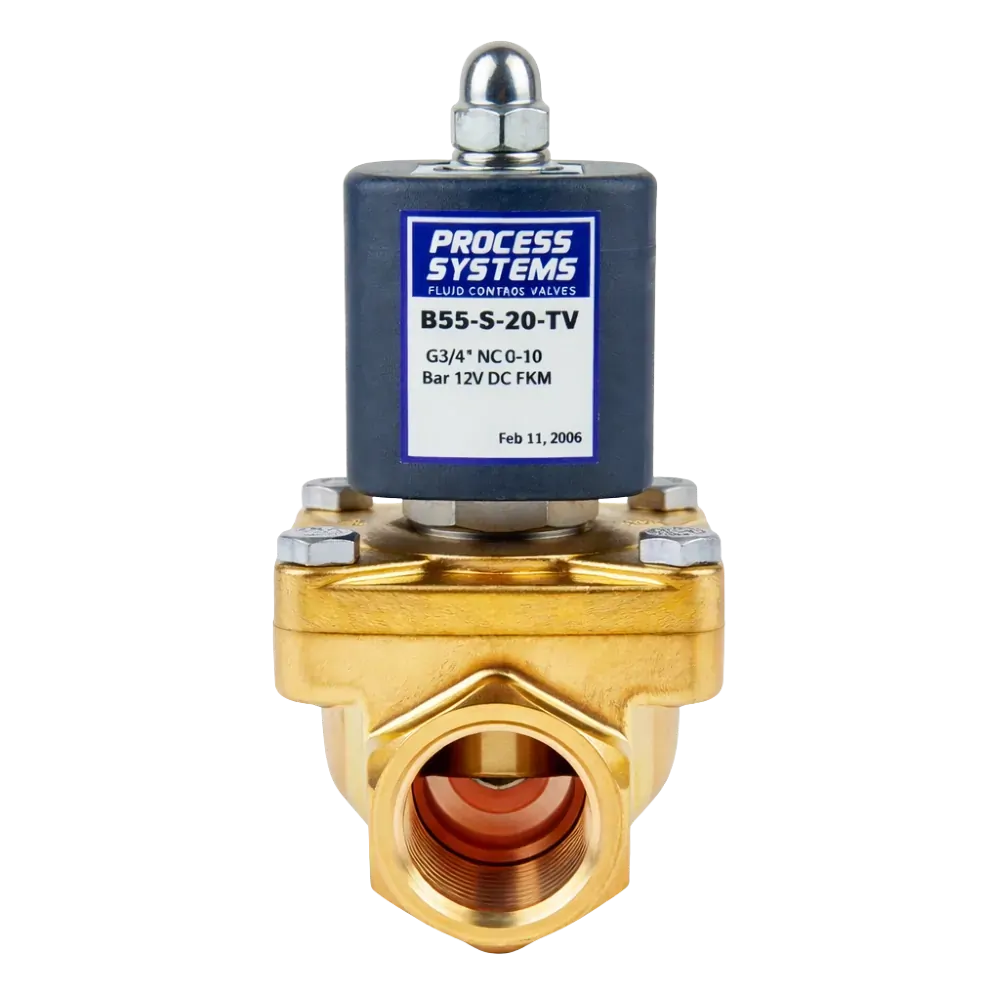

Brass Petrochemical Normally Closed Zero Differential Solenoid Valve

From $209.00

Inc GST
In Stock
Make an Enquiry
  • 2 way Zero Differential Normally Closed (power to open) Solenoid Valve
  • Brass Body, FKM seals
  • 0 to 10 Bar Pressure Range
  • -10°C to 100°C Temperature Range
  • For Gases & Liquids (Petrochemical)
  • Comes with Coil & LED DIN Plug (IP65)
  • Install in any orientation (upright if possible)

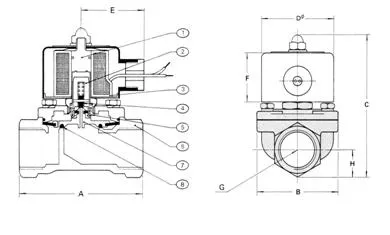

Brass Petrochemical zero differential solenoid Valve

Model A B C D E F G H Weight Kg
B55-3-15 75 52 103 56 70 37 3/8 14.5 1
B55-4-15 75 52 103 56 70 37 1/2 14.5 1
B55-5-20 85 60 114 56 70 37 3/4 18 1.25
B55-6-25 100 70 120 56 70 37 1 23 1.5
B55-7-35 120 90 140 56 70 37 1-1/4 33 2.85
B55-8-35 120 90 140 56 70 37 1-1/2 33 2.85
B55-9-50 150 120 160 56 70 37 2 40.5 4.8

 All dimensions in mm

.

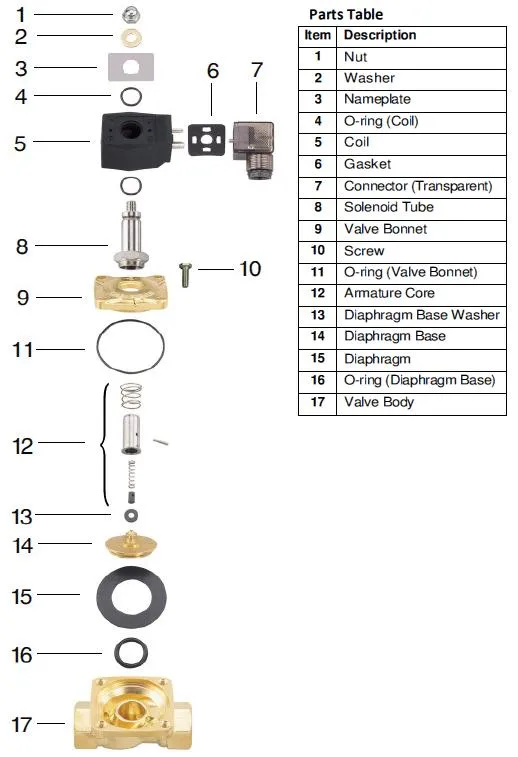

Brass Petrochemical zero differential solenoid valve construction

Size 3/8" to 2" BSP
Function Normally Closed (power to open)
Valve Operation Coupled Diaphragm
Body Forged Brass
Seat FKM
Pressure Range 0 to 10 BAR
Media Petrochemical

Others Also Bought

B55

Brass Petrochemical Normally Closed Zero Differential Solenoid Valve

Features:

Size 3/8" to 2" BSP
Function Normally Closed (power to open)
Valve Operation Coupled Diaphragm
Body Forged Brass
Seat FKM
Pressure Range 0 to 10 BAR
Media Petrochemical

Description:

  • 2 way Zero Differential Normally Closed (power to open) Solenoid Valve
  • Brass Body, FKM seals
  • 0 to 10 Bar Pressure Range
  • -10°C to 100°C Temperature Range
  • For Gases & Liquids (Petrochemical)
  • Comes with Coil & LED DIN Plug (IP65)
  • Install in any orientation (upright if possible)
.

Brass Petrochemical Normally Closed Zero Differential Solenoid Valve

B55

Dimensions:

Brass Petrochemical zero differential solenoid Valve

Model A B C D E F G H Weight Kg
B55-3-15 75 52 103 56 70 37 3/8 14.5 1
B55-4-15 75 52 103 56 70 37 1/2 14.5 1
B55-5-20 85 60 114 56 70 37 3/4 18 1.25
B55-6-25 100 70 120 56 70 37 1 23 1.5
B55-7-35 120 90 140 56 70 37 1-1/4 33 2.85
B55-8-35 120 90 140 56 70 37 1-1/2 33 2.85
B55-9-50 150 120 160 56 70 37 2 40.5 4.8

 All dimensions in mm

.

.

Brass Petrochemical Normally Closed Zero Differential Solenoid Valve

B55

Construction:

Brass Petrochemical zero differential solenoid valve construction
