SKU: PSM

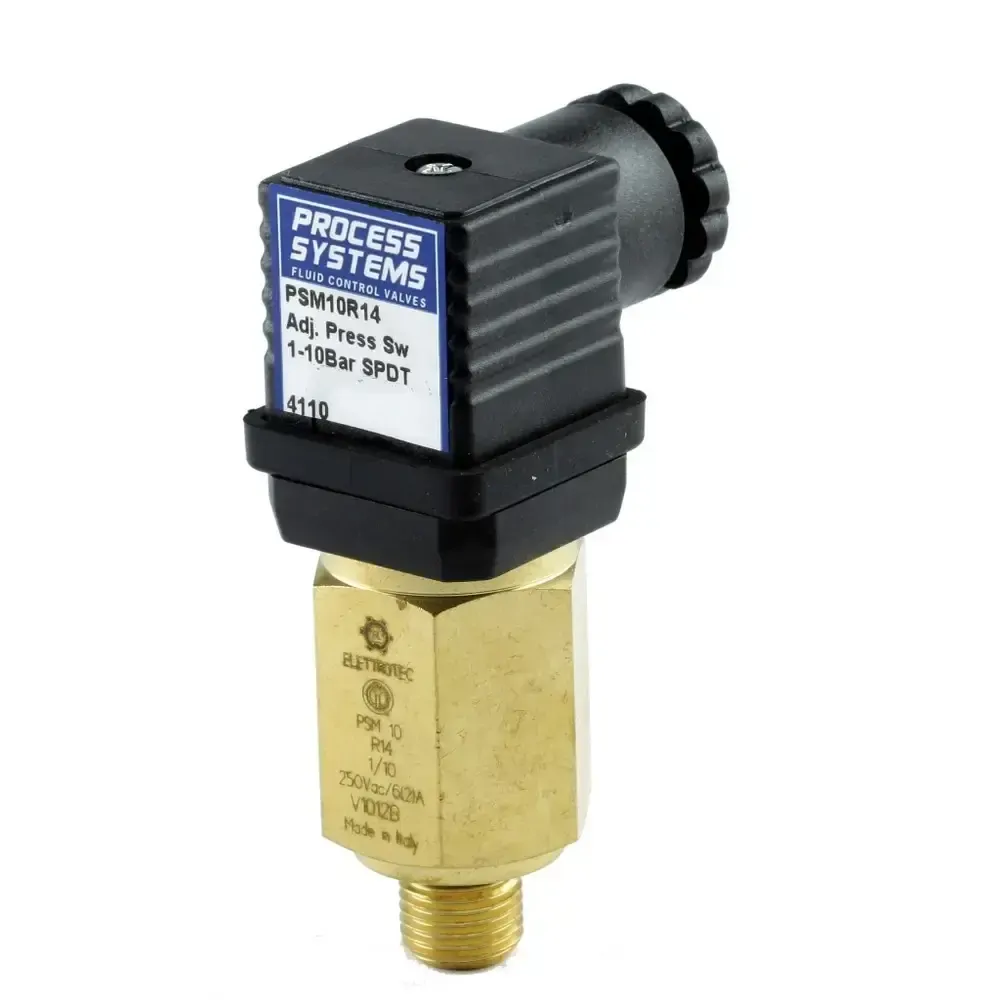

Brass Pressure Switch

From $181.50

Inc GST
In Stock
Make an Enquiry

Adjustable pressure switch which are single pole double throw (SPDT) meaning they can be wired normally closed or normally open. Electrical connection is by an IP65 DIN plug (PG9) and port connection is a 1/4" BSP parrallel thread with an oring gasket. 6 Amp resitive and 2 Amp inductive with a 30% of full scale Hysterisis. Typical uses include: pneumatic, hydraulic, lubrication and general industry.

Model Adjustment Range (BAR) Max Over Pressure (bar) Body Material Membrane Material Snubber Repeatability (BAR) Weight (grams)
PSM2R14 0.2 – 2 80 Brass NBR No ±0.2 100
PSM10R14 1-10 80 Brass NBR No ±0.4 100
PSM2R14APS 0.2-2 300 Brass NBR Yes ±0.2 100
PSM10R14APS 1-10 300 Brass NBR Yes ±0.4 100
PSM50R14S 10-50 300 Brass NBR Yes ±2 100
PSM100R14s 10-100 300 Brass NBR Yes ±3 100

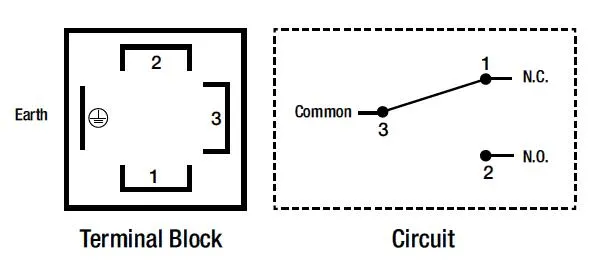

Pressure Switch Wiring Diagramme

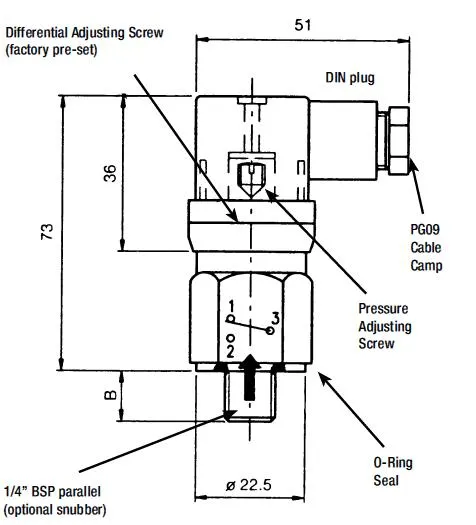

Pressure Switch Dimensions

Switching Range 0.2 to 100 BAR
Body  Brass
Function Single Pole Double Throw (SPDT)
Voltage Multi Voltage (0 to 240v AC/DC)
Current 6 amp resistive and 2 amp inductive
Factory Accredited CE, ISO 9001, TUV

PSM

Brass Pressure Switch

Features:

Switching Range 0.2 to 100 BAR
Body  Brass
Function Single Pole Double Throw (SPDT)
Voltage Multi Voltage (0 to 240v AC/DC)
Current 6 amp resistive and 2 amp inductive
Factory Accredited CE, ISO 9001, TUV

Description:

Adjustable pressure switch which are single pole double throw (SPDT) meaning they can be wired normally closed or normally open. Electrical connection is by an IP65 DIN plug (PG9) and port connection is a 1/4" BSP parrallel thread with an oring gasket. 6 Amp resitive and 2 Amp inductive with a 30% of full scale Hysterisis. Typical uses include: pneumatic, hydraulic, lubrication and general industry.

Model Adjustment Range (BAR) Max Over Pressure (bar) Body Material Membrane Material Snubber Repeatability (BAR) Weight (grams)
PSM2R14 0.2 – 2 80 Brass NBR No ±0.2 100
PSM10R14 1-10 80 Brass NBR No ±0.4 100
PSM2R14APS 0.2-2 300 Brass NBR Yes ±0.2 100
PSM10R14APS 1-10 300 Brass NBR Yes ±0.4 100
PSM50R14S 10-50 300 Brass NBR Yes ±2 100
PSM100R14s 10-100 300 Brass NBR Yes ±3 100

Pressure Switch Wiring Diagramme

.

Brass Pressure Switch

PSM

Dimensions:

Pressure Switch Dimensions

WARNING

These products are intended for use in industrial applications only. Do not use these products where pressures and temperatures can exceed those listed under ‘Technical Data’ and in our individual ‘Series’ data sheets. Before using these products with fluids other than these specified, for non-industrial applications, life-support systems, or other applications not within published specifications, consult PCIPro Through misuse, age, or malfunction, components used in industrial valve applications can fail in various modes. The system designer is warned to consider the failure modes of all component parts used in industrial valve applications and to provide adequate safeguards to prevent personal injury or damage to equipment in the event of such failure. System designers must provide a warning to the user in the system instructional manual if protection against a failure mode cannot be adequately provided. System designers and end users are cautioned to review specific warnings or specifications found in instruction sheets or labels packed or attached and shipped with the products. Our policy is one of continuous research and development. We therefore reserve the right to amend without notice the specifications given in this document or our individual ‘Series’ data sheets.

WARRANTY INFORMATION

All valve series and other products manufactured or distributed by PCIPro are warranted by PCIPro to be free of defects in material and workmanship for a period of 1 year from the date of purchase or as the manufacturer warrants. PCIPro obligation under this warranty is limited to repair or replacement of the defec1ive product or refund of the purchase price paid solely at the discretion of PCIPro and provided such defective product is returned to PCIPro freight prepaid and upon examination by PCIPro such product is found defective. This warranty shall be void in the event that the product has been subject to misuse, misapplication, improper maintenance, modification or tampering. This warranty is expressed in lieu of all other warranties, expressed or implied from PCIPro representatives or employees. PCIPro reserves the right to change Valve and Brochure specifications without notice.

.
