SKU: B75

Brass Steam & Hi Temperature Normally Closed Solenoid Valve

From $308.00

Inc GST
In Stock
Make an Enquiry
  • 2 way Differential Normally Closed (power to open) Piston Solenoid Valve
  • Brass Body, PTFE Seals, Stainless Seat
  • 0.5 to 20 Bar Pressure Range
  • -10°C to 180°C Temperature Range
  • Comes with Coil & LED DIN Plug (IP65)
  • Install in any orientation (upright if possible)
  • Suitable for Steam & High Temperature Applications
  • * Note this is a hard PTFE sea. May not be bubble tight at low pressure/temperature

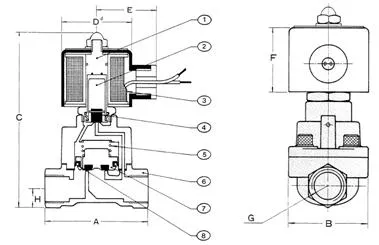

Brass Steam/High Temperature Solenoid Valve Dimensions

Model A B C D E F G (BSP) H Weight Kg
B75-3-15-*T 75 52 129 52 45 41 3/8 14.5 1.65
B75-4-15-*T 75 52 129 52 45 41 1/2 14.5 1.65
B75-5-20-*T 85 60 141 52 45 41 3/4 18 2.13
B75-6-25-*T 100 70 148 52 45 41 1 23 2.35
B75-7-35-*T 120 90 168 52 45 41 1 1/4 33 3.85
B75-8-35-*T 120 90 168 52 45 41 1 1/2 33 3.30
B75-9-50-*T 150 122 203 52 45 41 2 40.5 7.35

All dimensions in mm unless otherwise shown.



Brass High Temperature Solenoid Valve Construction

Item Article Material
1 Armature Stainless Steel 304
2 Plunger Stainless Steel 304
3 Coil Brass Wire
4 Plunger Seat Teflon
5 Spring Stainless Steel 304
6 Valve Body Brass Forged
7 Piston Brass
8 Leak proof & Piston Ring Teflon



Size 3/8" to 2" BSP
Function Normally Closed (power to open)
Valve Operation Servo Assisted
Body Brass
Seat PTFE
Pressure Range 0.5 to 20 BAR (10 BAR Steam)
Media Steam & High Pressure Air / Oil Media

.
.
