Bronze Easing Gear Pressure Relief Valve with Stainless Entry & Internals

From $110.00

Inc GST
In Stock
Make an Enquiry

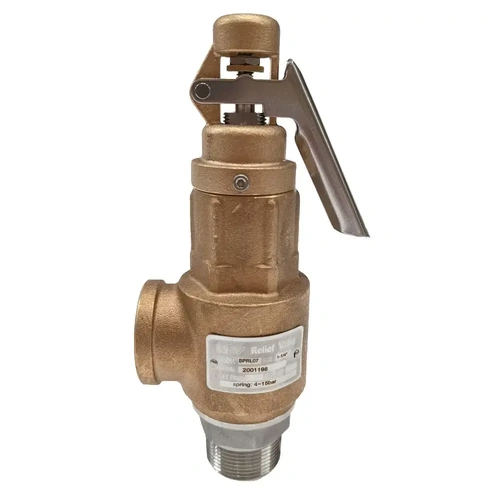

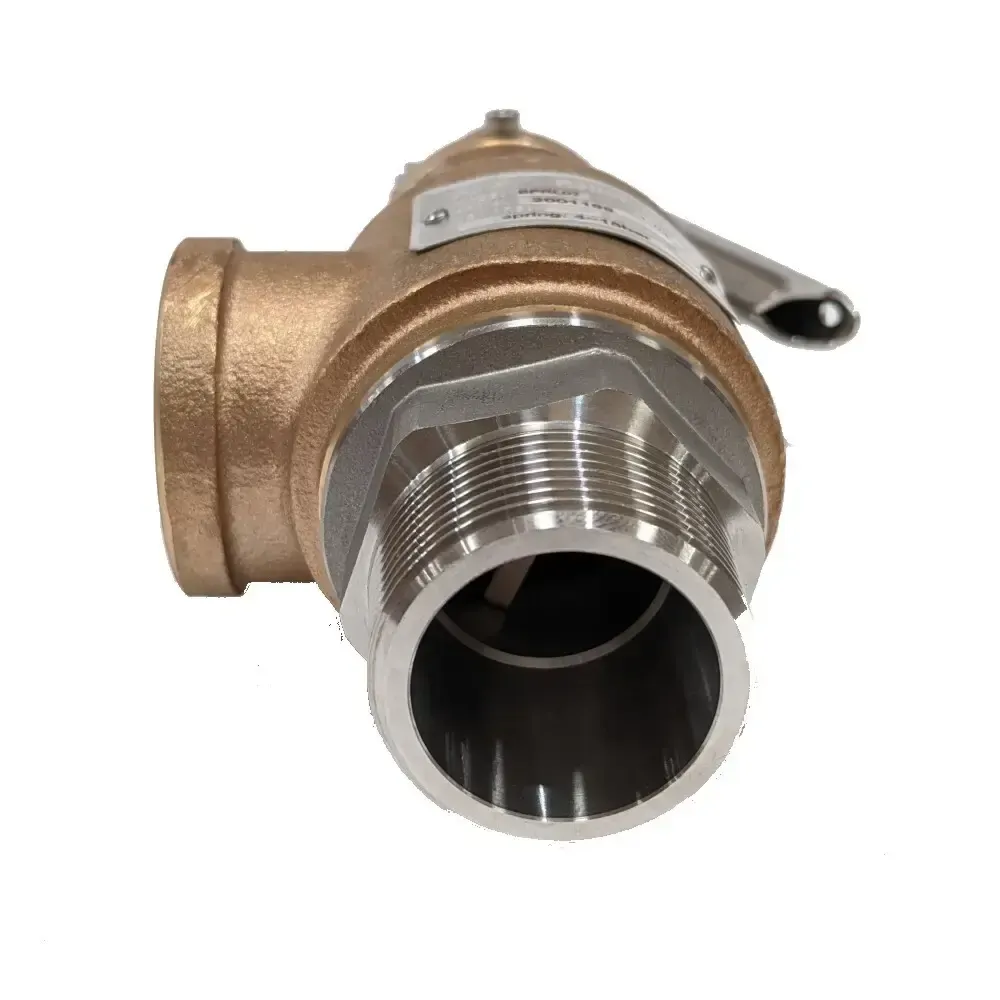

Bronze Open Cap with Easing Gear Pressure Relief Valve with 316 Stainless Steel Entry and Internals and a Stainless Steel/RPTFE seat. The relieving pressure is set by turning down the setting nut under the top cap. Not for Safety Relief application. For liquid applications we recommend our Closed Cap Relief Valves.

Model Inlet Size (Male BSPT) Outlet Size (Female BSPP) Temperature Range
BRPL04-* 1/2" 1/2" -20°C to 180°C
BRPL05-* 3/4" 3/4" -20°C to 180°C
BRPL06-* 1" 1" -20°C to 180°C
BRPL07-* 1-1/4" 1-1/4" -20°C to 180°C
BRPL08-* 1-1/2" 1-1/2" -20°C to 180°C
BRPL09-* 2" 2" -20°C to 180°C

*Setting range selectable

Capacity charts for the above models can be found here for the following Applications:     Steam       Air       Water

Model Inlet Size (Male BSPT) Outlet Size (Female BSPP) D L1 L2 H
BRPL04-* 1/2" 1/2" 13 31 48 157
BRPL05-* 3/4" 3/4" 19 35 55 167
BRPL06-* 1" 1" 25 39.5 65 199
BRPL07-* 1-1/4" 1-1/4" 31.5 50.5 75 221
BRPL08-* 1-1/2" 1-1/2" 37 59 86 247
BRPL09-* 2" 2" 47 67 100 284

All dimensions are in mm unless specified

Item No. Description Material
1 Cap Bronze
2 Lever SS304
3 Adjusting Screw SS304
4 Nut SS304
5 Spindle SS304
6 Spring SS304
7 Valve Body Bronze
Item No. Description Material
8 Spring Seat SS304
9 Disc SS304
10 Gasket PTFE
11 Buffer SS304
12 Gasket Ring PTFE
13 Valve Seat SS304



Size 1/2" to 2" BSP
Body Bronze
Seat 316 Stainless Steel & PTFE
Pressure Range 2 to 20 Bar
Temperature -20°C to 180°C
Feature Open Cap with Easing Gear

BPRL

Bronze Easing Gear Pressure Relief Valve with Stainless Entry & Internals

Features:

Size 1/2" to 2" BSP
Body Bronze
Seat 316 Stainless Steel & PTFE
Pressure Range 2 to 20 Bar
Temperature -20°C to 180°C
Feature Open Cap with Easing Gear

Description:

Bronze Open Cap with Easing Gear Pressure Relief Valve with 316 Stainless Steel Entry and Internals and a Stainless Steel/RPTFE seat. The relieving pressure is set by turning down the setting nut under the top cap. Not for Safety Relief application. For liquid applications we recommend our Closed Cap Relief Valves.

Model Inlet Size (Male BSPT) Outlet Size (Female BSPP) Temperature Range
BRPL04-* 1/2" 1/2" -20°C to 180°C
BRPL05-* 3/4" 3/4" -20°C to 180°C
BRPL06-* 1" 1" -20°C to 180°C
BRPL07-* 1-1/4" 1-1/4" -20°C to 180°C
BRPL08-* 1-1/2" 1-1/2" -20°C to 180°C
BRPL09-* 2" 2" -20°C to 180°C

*Setting range selectable

Capacity charts for the above models can be found here for the following Applications:     Steam       Air       Water

.

Bronze Easing Gear Pressure Relief Valve with Stainless Entry & Internals

BPRL

Dimensions:

Model Inlet Size (Male BSPT) Outlet Size (Female BSPP) D L1 L2 H
BRPL04-* 1/2" 1/2" 13 31 48 157
BRPL05-* 3/4" 3/4" 19 35 55 167
BRPL06-* 1" 1" 25 39.5 65 199
BRPL07-* 1-1/4" 1-1/4" 31.5 50.5 75 221
BRPL08-* 1-1/2" 1-1/2" 37 59 86 247
BRPL09-* 2" 2" 47 67 100 284

All dimensions are in mm unless specified

.

Bronze Easing Gear Pressure Relief Valve with Stainless Entry & Internals

BPRL

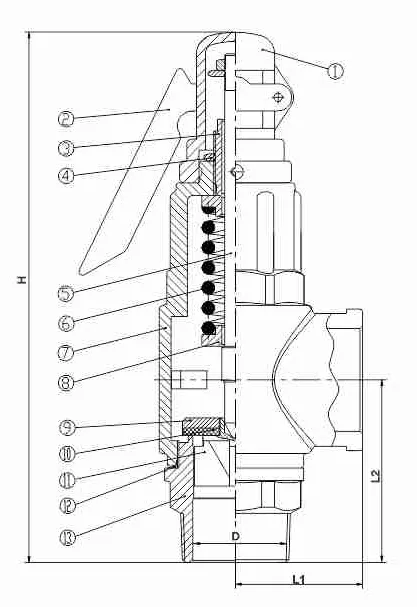

Construction:

Item No. Description Material
1 Cap Bronze
2 Lever SS304
3 Adjusting Screw SS304
4 Nut SS304
5 Spindle SS304
6 Spring SS304
7 Valve Body Bronze
Item No. Description Material
8 Spring Seat SS304
9 Disc SS304
10 Gasket PTFE
11 Buffer SS304
12 Gasket Ring PTFE
13 Valve Seat SS304
