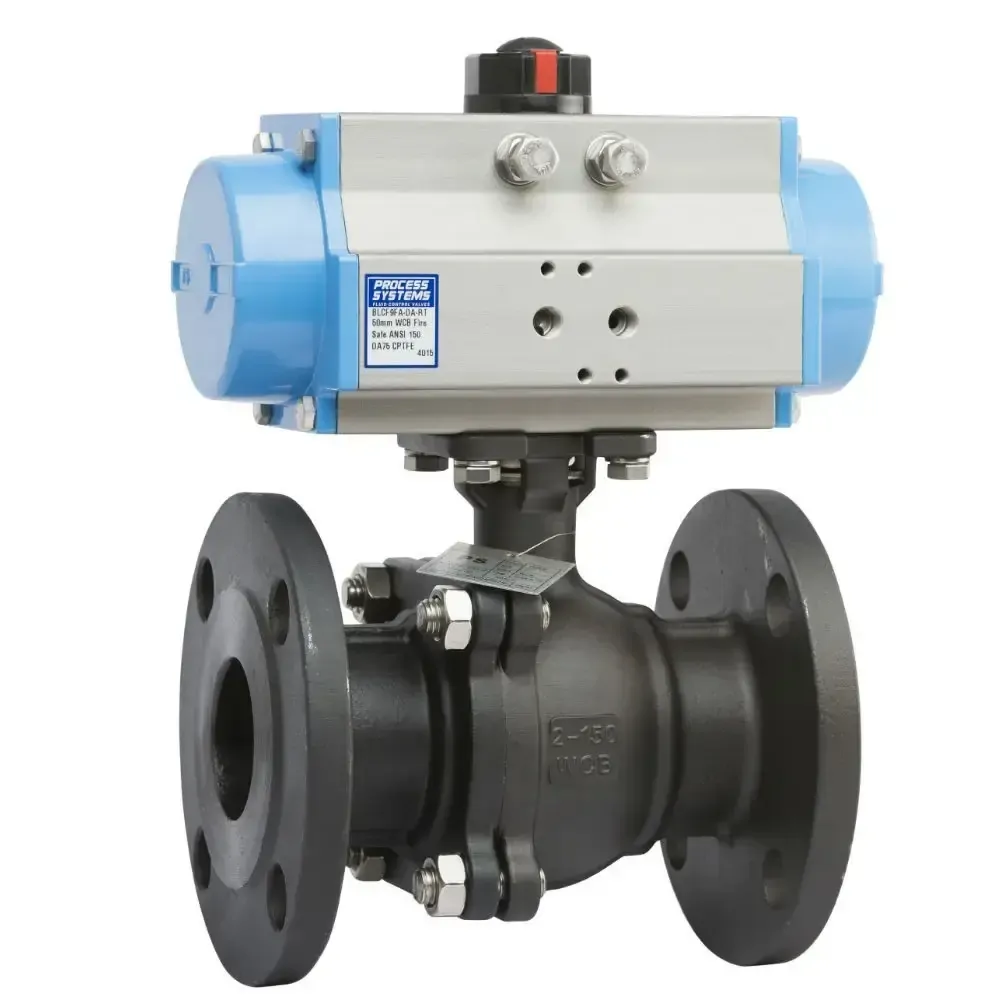

Cast Steel Double Acting ANSI 150 Flanged Fire Safe Ball Valve

From $236.50

Inc GST
In Stock
Make an Enquiry
  • Two way ANSI 150 Flanged Cast Steel Double Acting Pneumatic Ball Valve
  • Fire Safe Approved API607 Sixth Edition Cert. 249037
  • Anodised Aluminium Actuator
  • Namur Interface, Adjustable Stops & Visual Indicator
  • Reinforced PTFE seats
  • Tested to API598
Model Size (mm) Actuator Media Pressure Media Temperature Actuator Pressure Actuator Port Size
BLCF4FA-DA-RT 15 DA50 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLCF5FA-DA-RT 20 DA50 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLCF6FA-DA-RT 25 DA50 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLCF7FA-DA-RT 32 DA63 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLCF8FA-DA-RT 40 DA63 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLCF9FA-DA-RT 50 DA75 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLCF10FA-DA-RT 63 DA88 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/4"
BLCF11FA-DA-RT 80 DA100 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/4"
BLCF12FA-DA-RT 100 DA115 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/4"
BLC13FA-DA-RT 125 DA125 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/4"
BLCF14FA-DA-RT 150 DA145 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/4"
BLCF15FA-DA-RT 200 DA160 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/4"
BLCF16FA-DA-RT 250 DA200 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/4"
BLCF17FA-DA-RT 300 DA240 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/4"

Please note the 125mm does not hold fire safe certification (all other models do).

Double Acting Cast Iron Ball Valve

Double Acting Flanged Fire Safe Cast Steel Ball Valve

Model Size (mm) Actuator Ød L f b Z-Ød1 ØD ØD1 ØD2 h J K P
BLCF4FA-DA-RT 15 DA50 15 108 2 11 4-Ø15 89 60.5 35 48 90 138 1/8"
BLCF5FA-DA-RT 20 DA50 20 117 2 11 4-Ø15 98 70 43 53 90 138 1/8"
BLCF6FA-DA-RT 25 DA50 25 127 2 12 4-Ø15 108 79.5 51 58.5 90 138 1/8"
BLCF7FA-DA-RT 32 DA63 32 140 2 13 4-Ø15 117 89 64 71 100 162 1/8"
BLCF8FA-DA-RT 40 DA63 40 165 2 15 4-Ø15 127 98.5 73 76.5 100 162 1/8"
BLCF9FA-DA-RT 50 DA75 50 178 2 16 4-Ø19 152 120.05 92 85 117 208 1/8"
BLCF10FA-DA-RT 65 DA88 65 190 2 18 4-Ø19 178 139.5 105 110 136 245 1/8"
BLCF11FA-DA-RT 80 DA100 80 203 2 19 4-Ø19 190 152.5 127 122.5 142 266 1/4"
BLCF12FA-DA-RT 100 DA115 100 229 2 24 8-Ø19 229 190.5 157 145.5 172 310 1/4"
BLCF13FA-DA-RT 125 DA125 125 356 2 24 8-Ø19 254 216 186 185 184 340 1/4"
BLCF14FA-DA-RT 150 DA145 150 394 2 26 8-Ø22 279 241.5 216 202.5 209 401 1/4"
BLCF15FA-DA-RT 200 DA160 200 457 2 29 8-Ø22 343 298.5 270 257 222 430 1/4"

All dimension in mm unless shown otherwise.

Double Acting Flanged Fire Safe Cast Steel Ball Valve

Item Description Material
1 Cap WCB
2 Bolt SS304
3 Body Gasket Pure Graphite
4 Body WCB
5 Ball SS316
6 Ball Seat R-PTFE(15%)
7 Stem SS316
Item Description Material
8 Thrust Washer PTFE
9 O-Ring Viton
10 Stem Packing Pure Graphite
11 Packing Ring SS304
12 Belleville Washer SS301
13 Nut Stopper SS304
14 Nut SS304
15 Pnuematic Actuator Anodized Aluminium



Size 15mm to 300mm
Body Carbon Steel
Seat PTFE
Pressure 150 pound
Temperature -20°C to 180°C
Actuation Double Acting Pneumatic
Fire Safe API607 6th E. Cert. No 218781

BLCFDA

Cast Steel Double Acting ANSI 150 Flanged Fire Safe Ball Valve

Features:

Size 15mm to 300mm
Body Carbon Steel
Seat PTFE
Pressure 150 pound
Temperature -20°C to 180°C
Actuation Double Acting Pneumatic
Fire Safe API607 6th E. Cert. No 218781

Description:

  • Two way ANSI 150 Flanged Cast Steel Double Acting Pneumatic Ball Valve
  • Fire Safe Approved API607 Sixth Edition Cert. 249037
  • Anodised Aluminium Actuator
  • Namur Interface, Adjustable Stops & Visual Indicator
  • Reinforced PTFE seats
  • Tested to API598
Model Size (mm) Actuator Media Pressure Media Temperature Actuator Pressure Actuator Port Size
BLCF4FA-DA-RT 15 DA50 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLCF5FA-DA-RT 20 DA50 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLCF6FA-DA-RT 25 DA50 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLCF7FA-DA-RT 32 DA63 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLCF8FA-DA-RT 40 DA63 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLCF9FA-DA-RT 50 DA75 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLCF10FA-DA-RT 63 DA88 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/4"
BLCF11FA-DA-RT 80 DA100 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/4"
BLCF12FA-DA-RT 100 DA115 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/4"
BLC13FA-DA-RT 125 DA125 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/4"
BLCF14FA-DA-RT 150 DA145 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/4"
BLCF15FA-DA-RT 200 DA160 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/4"
BLCF16FA-DA-RT 250 DA200 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/4"
BLCF17FA-DA-RT 300 DA240 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/4"

Please note the 125mm does not hold fire safe certification (all other models do).

Double Acting Cast Iron Ball Valve

.

Cast Steel Double Acting ANSI 150 Flanged Fire Safe Ball Valve

BLCFDA

Dimensions:

Double Acting Flanged Fire Safe Cast Steel Ball Valve

Model Size (mm) Actuator Ød L f b Z-Ød1 ØD ØD1 ØD2 h J K P
BLCF4FA-DA-RT 15 DA50 15 108 2 11 4-Ø15 89 60.5 35 48 90 138 1/8"
BLCF5FA-DA-RT 20 DA50 20 117 2 11 4-Ø15 98 70 43 53 90 138 1/8"
BLCF6FA-DA-RT 25 DA50 25 127 2 12 4-Ø15 108 79.5 51 58.5 90 138 1/8"
BLCF7FA-DA-RT 32 DA63 32 140 2 13 4-Ø15 117 89 64 71 100 162 1/8"
BLCF8FA-DA-RT 40 DA63 40 165 2 15 4-Ø15 127 98.5 73 76.5 100 162 1/8"
BLCF9FA-DA-RT 50 DA75 50 178 2 16 4-Ø19 152 120.05 92 85 117 208 1/8"
BLCF10FA-DA-RT 65 DA88 65 190 2 18 4-Ø19 178 139.5 105 110 136 245 1/8"
BLCF11FA-DA-RT 80 DA100 80 203 2 19 4-Ø19 190 152.5 127 122.5 142 266 1/4"
BLCF12FA-DA-RT 100 DA115 100 229 2 24 8-Ø19 229 190.5 157 145.5 172 310 1/4"
BLCF13FA-DA-RT 125 DA125 125 356 2 24 8-Ø19 254 216 186 185 184 340 1/4"
BLCF14FA-DA-RT 150 DA145 150 394 2 26 8-Ø22 279 241.5 216 202.5 209 401 1/4"
BLCF15FA-DA-RT 200 DA160 200 457 2 29 8-Ø22 343 298.5 270 257 222 430 1/4"

All dimension in mm unless shown otherwise.

.

Cast Steel Double Acting ANSI 150 Flanged Fire Safe Ball Valve

BLCFDA

Construction:

Double Acting Flanged Fire Safe Cast Steel Ball Valve

Item Description Material
1 Cap WCB
2 Bolt SS304
3 Body Gasket Pure Graphite
4 Body WCB
5 Ball SS316
6 Ball Seat R-PTFE(15%)
7 Stem SS316
Item Description Material
8 Thrust Washer PTFE
9 O-Ring Viton
10 Stem Packing Pure Graphite
11 Packing Ring SS304
12 Belleville Washer SS301
13 Nut Stopper SS304
14 Nut SS304
15 Pnuematic Actuator Anodized Aluminium
