Carbon Steel Flanged Basket Strainer

From $533.50

Inc GST
In Stock
Make an Enquiry
  • Carbon Steel Flanged ANSI 150 Basket Strainer Strainer
  • 304 Stainless Steel 40 Mesh
  • 0 to 20 Bar Pressure Range
  • 0°C to 180°C Temperature Range
  • Tested to API598
Model DN (mm) Pressure Range Media Temp Weight (kg) Plug Size (BSW)
BSW-50 50 0 to 20 BAR 0 to 180°C 17.5 ½”
BSW-65 65 0 to 20 BAR 0 to 180°C 21 ½”
BSW-80 80 0 to 20 BAR 0 to 180°C 28 ½”
BSW-100 100 0 to 20 BAR 0 to 180°C 39.5 ½”
BSW-125 125 0 to 20 BAR 0 to 180°C   ¾”
BSW-150 150 0 to 20 BAR 0 to 180°C 64.5 ¾”
BSW-200 200 0 to 20 BAR 0 to 180°C 91 ¾”
BSW-250 250 0 to 20 BAR 0 to 180°C 133 ¾”
BSW-300 300 0 to 20 BAR 0 to 180°C 169 1”
BSW-400 400 0 to 20 BAR 0 to 180°C 285 1”
BSW-500 500 0 to 20 BAR 0 to 180°C 440 1”
BSW-600 600 0 to 20 BAR 0 to 180°C 560 1”

Cast Steel Basket Strainer

DN L H H1 D D1 D2 b f z-⌀d
50 270 175 300 150 120.7 92.1 14.3 2 4-19
65 330 210 360 180 139.7 104.8 15.9 2 4-19
80 340 255 400 190 152.4 127 17.5 2 4-19
100 430 300 470 230 190.5 157.2 22.3 2 8-19
125 480 355 550 255 215.9 185.7 22.3 2 8-22
150 500 425 630 280 241.3 215.9 23.9 2 8-22
200 560 500 780 345 298.5 269.9 27 2 8-22
250 660 500 889 405 362 323.8 28.6 2 12-26
300 750 500 785 485 431.8 381 30.2 2 12-26
350 800 550 865 535 476.3 412.8 33.4 2 12-29
400 900 630 980 595 539.8 469.9 35 2 16-29
450 950 820 1200 635 577.9 533.4 38.1 2 16-32
500 1000 850 1240 700 635 584.2 41.3 2 20-32
600 1150 900 1360 815 749.3 692.2 46.1 2 20-35

All dimensions in mm unless shown otherwise.

Cast Steel Basket Strainer

No Part Material
1 Plug Fitting ASTM A105
2 Body ASTM A105
3 Filter Screen SS304
4 Gasket Flexible Graphite / 304
5 Bonnet ASTM A105
6 Bonnet Bolt Nut ASTM A194 Gr.2H
7 Bonnet Bolt ASTM A193 Gr.B7

Size 50mm to 600mm
Body Cast Steel
Mesh 304 Stainless Steel
Pressure Range 0 to 20 BAR
Flanged ANSI 150
Factory Accredited CE, ISO 9001

BSW

Carbon Steel Flanged Basket Strainer

Features:

Size 50mm to 600mm
Body Cast Steel
Mesh 304 Stainless Steel
Pressure Range 0 to 20 BAR
Flanged ANSI 150
Factory Accredited CE, ISO 9001

Description:

  • Carbon Steel Flanged ANSI 150 Basket Strainer Strainer
  • 304 Stainless Steel 40 Mesh
  • 0 to 20 Bar Pressure Range
  • 0°C to 180°C Temperature Range
  • Tested to API598
Model DN (mm) Pressure Range Media Temp Weight (kg) Plug Size (BSW)
BSW-50 50 0 to 20 BAR 0 to 180°C 17.5 ½”
BSW-65 65 0 to 20 BAR 0 to 180°C 21 ½”
BSW-80 80 0 to 20 BAR 0 to 180°C 28 ½”
BSW-100 100 0 to 20 BAR 0 to 180°C 39.5 ½”
BSW-125 125 0 to 20 BAR 0 to 180°C   ¾”
BSW-150 150 0 to 20 BAR 0 to 180°C 64.5 ¾”
BSW-200 200 0 to 20 BAR 0 to 180°C 91 ¾”
BSW-250 250 0 to 20 BAR 0 to 180°C 133 ¾”
BSW-300 300 0 to 20 BAR 0 to 180°C 169 1”
BSW-400 400 0 to 20 BAR 0 to 180°C 285 1”
BSW-500 500 0 to 20 BAR 0 to 180°C 440 1”
BSW-600 600 0 to 20 BAR 0 to 180°C 560 1”
.

Carbon Steel Flanged Basket Strainer

BSW

Dimensions:

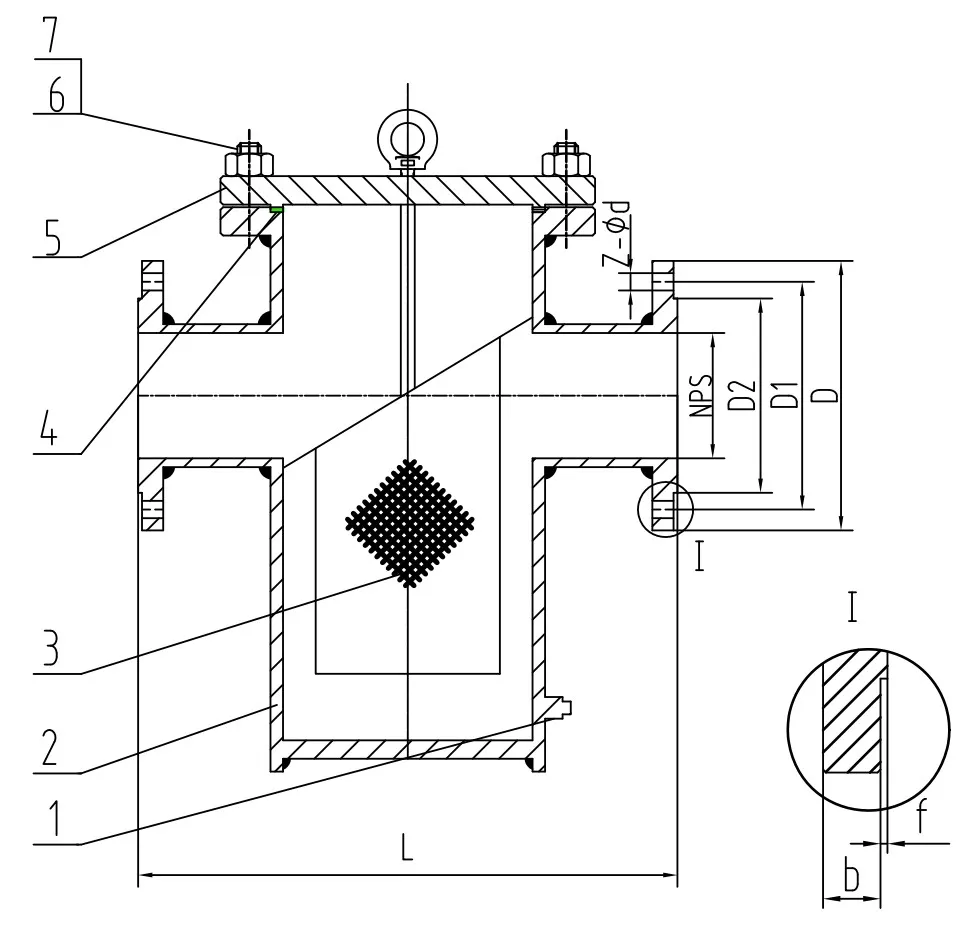

Cast Steel Basket Strainer

DN L H H1 D D1 D2 b f z-⌀d
50 270 175 300 150 120.7 92.1 14.3 2 4-19
65 330 210 360 180 139.7 104.8 15.9 2 4-19
80 340 255 400 190 152.4 127 17.5 2 4-19
100 430 300 470 230 190.5 157.2 22.3 2 8-19
125 480 355 550 255 215.9 185.7 22.3 2 8-22
150 500 425 630 280 241.3 215.9 23.9 2 8-22
200 560 500 780 345 298.5 269.9 27 2 8-22
250 660 500 889 405 362 323.8 28.6 2 12-26
300 750 500 785 485 431.8 381 30.2 2 12-26
350 800 550 865 535 476.3 412.8 33.4 2 12-29
400 900 630 980 595 539.8 469.9 35 2 16-29
450 950 820 1200 635 577.9 533.4 38.1 2 16-32
500 1000 850 1240 700 635 584.2 41.3 2 20-32
600 1150 900 1360 815 749.3 692.2 46.1 2 20-35

All dimensions in mm unless shown otherwise.

.

Carbon Steel Flanged Basket Strainer

BSW

Construction:

Cast Steel Basket Strainer

No Part Material
1 Plug Fitting ASTM A105
2 Body ASTM A105
3 Filter Screen SS304
4 Gasket Flexible Graphite / 304
5 Bonnet ASTM A105
6 Bonnet Bolt Nut ASTM A194 Gr.2H
7 Bonnet Bolt ASTM A193 Gr.B7
