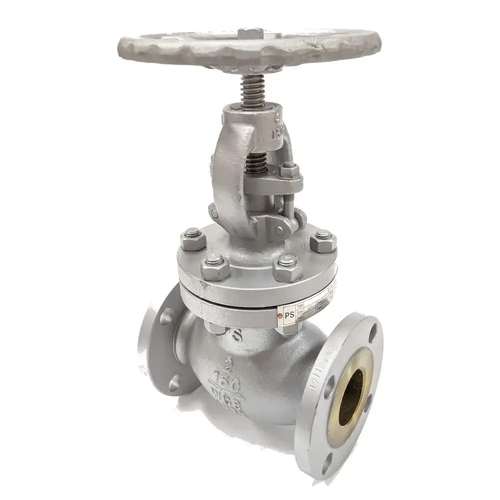

Cast Steel Flanged Globe Valve

From $462.00

Inc GST
In Stock
Make an Enquiry
  • ANSI 150 Flanged Carbon Steel Globe Valve
  • Metal to Metal Seat
  • 0 to 20 Bar Pressure Range
  • 0°C to 260°C Temperature Range
  • Made to API602
  • Tested to API598

Cast Steel Flanged Globe Valve

DN L D D1 D2 b N-Ø
50 203 150 120.7 92.1 14.3 4-19
65 216 180 139.7 104.8 15.9 4-19
80 241 190 152.4 127 22.3 4-19
100 292 230 190.5 157.2 22.3 8-19
125 356 255 215.9 185.7 22.3 8-22
150 406 280 241.5 215.9 23.9 8-22
200 495 345 298.5 269.9 27 8-22
250 622 405 362 323.8 28.6 12-25
300 698 485 431.8 381 30.2 12-25

Cast Steel Flanged Globe Valve

Number Item Material
1 Body WCB
2 Seat A105+13Cr
3 Disc A105+13Cr
4 Disc Cover WCB
5 Gasket 304+Flexible Graphite
6 Bonnet WCB
7 Back Seat 2Cr13
8 Packing Flexible Graphite
9 Gland A182 F6
10 Gland Flange WCB
11 Stem Nut Cu
12 Handwheel KTH350-10
13 Lock Nut 1045
14 Bonnet Nut A193-2H
15 Bonnet Bolt A194-B7
16 Stem 2Cr13

Size 50mm to 300mm
Body WCB
Seat 13Cr reinforced steel
Nominal Pressure 150LB
Max Temp 425°C

.
.
