Features:
Size 1/2" to 2" NPT
Body Forged Steel
Seat PTFE
Pressure 130 BAR @ ambient
Actuation Lever
Model | Size (NPT) | Design Pressure | Media Temperature | Weight (kg) | Torque (Nm) |
---|---|---|---|---|---|
BVF8-04 | 1/2" | 13.62 MPa @ -29°C ~ 35°C | 180°C @ 1.0 MPa | 1.3 | 15 |
BVF8-05 | 3/4" | 2.2 | 18 | ||
BVF8-06 | 1" | 3.5 | 27 | ||
BVF8-07 | 1-1/4" | 6.5 | 45 | ||
BVF8-08 | 1-1/2" | 6.7 | 65 | ||
BVF8-09 | 2" | 11 | 90 |
Refer to Class 800 Pressure vs Temperature chart below for specific pressure and temperature information.

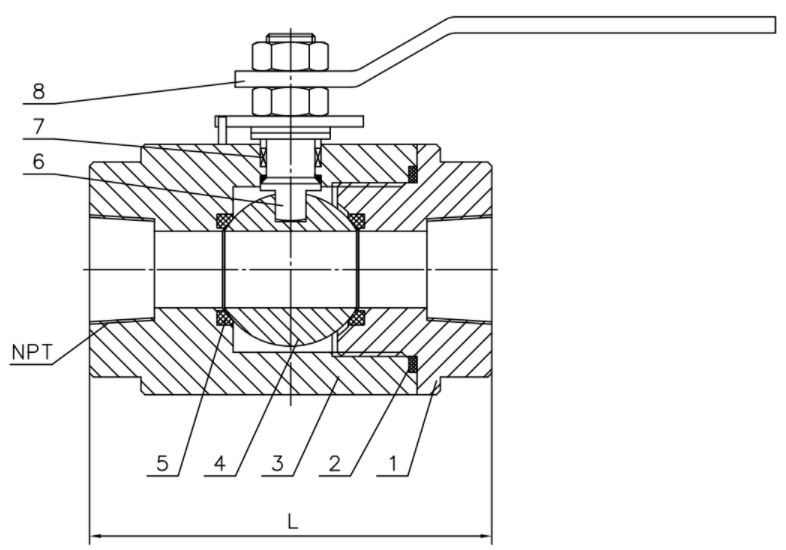

Model | Size (NPT) | L |
---|---|---|
BVF8-04 | 1/2" | 85 |
BVF8-05 | 3/4" | 95 |
BVF8-06 | 1" | 105 |
BVF8-07 | 1 1/4" | 120 |
BVF8-08 | 1 1/2" | 130 |
BVF8-09 | 2" | 150 |
All dimensions in mm unless shown otherwise.
Number | Part Name | Material |
---|---|---|
1 | Cap | ASTM A105 |
2 | Gasket | RPTFE |
3 | Body | ASTM A105 |
4 | Ball | ASTM A182-F304 |
5 | Seat | PTFE |
6 | Stem | ASTM A276-420 |
7 | Packing | RPTFE |
8 | Handle | SS+PVC |
