Features:
Size 1/2" to 2" NPT
Body Forged Steel
Seat Metal
Pressure Range 0 to 136 BAR
Model | Size (NPT) | Design Pressure | Media Temperature | Weight (kg) |
---|---|---|---|---|
GVF8-04 | 1/2" | 13.62 MPa @ -29°C ~ 35°C | 454°C @ 5.5 MPa | 2.22 |
GVF8-05 | 3/4" | 2.39 | ||
GVF8-06 | 1" | 4.24 | ||
GVF8-07 | 1 1/4" | 5.7 | ||
GVF8-08 | 1 1/2" | 7.05 | ||
GVF8-09 | 2" | 10.9 |
Model | Size (NPT) | L | M | M0 |
---|---|---|---|---|
GVF8-04 | 1/2" | 79 | 155 | 100 |
GVF8-05 | 3/4" | 92 | 155 | 100 |
GVF8-06 | 1" | 111 | 176 | 125 |
GVF8-07 | 1 1/4" | 120 | 200 | 160 |
GVF8-08 | 1 1/2" | 120 | 220 | 160 |
GVF8-09 | 2" | 140 | 255 | 180 |
All dimensions in mm unless shown otherwise.

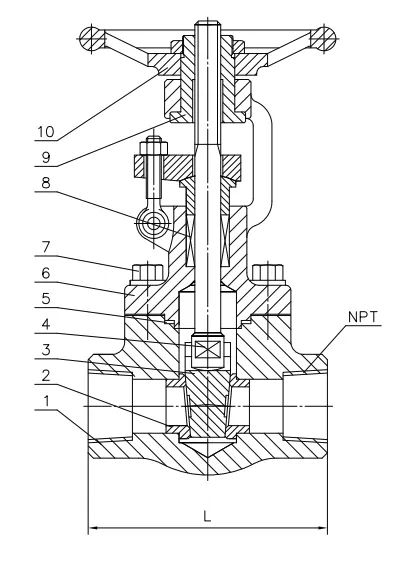

Number | Part Name | Material |
---|---|---|
1 | Body | ASTM A105 |
2 | Seat | ASTM A276-420 |
3 | Wedge Disc | ASTM A276-420 |
4 | Stem | ASTM A276-410 |
5 | Gasket | Flexible Graphite/304 |
6 | Bonnet | ASTM A105 |
7 | Bonnet Bolt | ASTM A193 Gr.B7 |
8 | Packing | Flexible Graphite |
9 | Stem Nut | 1045 |
10 | Handwheel | ASTM A197 |
