SKU: YPZA

Cross Joiner Push Fit

From $4.29

Inc GST
In Stock
Make an Enquiry

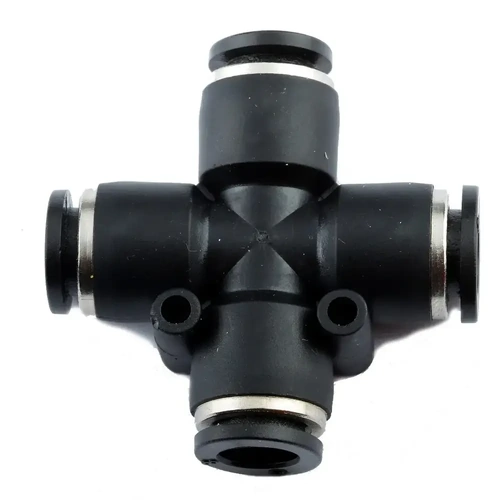

This is a metric cross joiner push fit fitting. Each of the four ends has a push fit connector/joiner. Simply push the tube in to seal and pull the collet down while pulling the tube out to release.

Material Nickel Plated Brass / UV Black Plastic, Nitrile O-ring
Pressure Range 0 to 8 BAR
Max Temperature 60°C
Features Push fit to push fit ends

Cross Joiner Push Fit Fitting

Model O.D Tube (øD) E F øP Ød
YPZA04 4
YPZA06 6 19.8 7.5 13 3.2
YPZA08 8 23 8.8 14.4 3.2
YPZA10 10 29 11.5 18.4 4.2
YPZA12 12 30 11.5 20 4.2

All dimensions in mm unless shown otherwise.

Tube Size 4mm to 12mm
Function Cross Joiner Push Fit

YPZA

Cross Joiner Push Fit

Features:

Tube Size 4mm to 12mm
Function Cross Joiner Push Fit

Description:

This is a metric cross joiner push fit fitting. Each of the four ends has a push fit connector/joiner. Simply push the tube in to seal and pull the collet down while pulling the tube out to release.

Material Nickel Plated Brass / UV Black Plastic, Nitrile O-ring
Pressure Range 0 to 8 BAR
Max Temperature 60°C
Features Push fit to push fit ends
.

Cross Joiner Push Fit

YPZA

Dimensions:

Cross Joiner Push Fit Fitting

Model O.D Tube (øD) E F øP Ød
YPZA04 4
YPZA06 6 19.8 7.5 13 3.2
YPZA08 8 23 8.8 14.4 3.2
YPZA10 10 29 11.5 18.4 4.2
YPZA12 12 30 11.5 20 4.2

All dimensions in mm unless shown otherwise.

WARNING

These products are intended for use in industrial applications only. Do not use these products where pressures and temperatures can exceed those listed under ‘Technical Data’ and in our individual ‘Series’ data sheets. Before using these products with fluids other than these specified, for non-industrial applications, life-support systems, or other applications not within published specifications, consult PCIPro Through misuse, age, or malfunction, components used in industrial valve applications can fail in various modes. The system designer is warned to consider the failure modes of all component parts used in industrial valve applications and to provide adequate safeguards to prevent personal injury or damage to equipment in the event of such failure. System designers must provide a warning to the user in the system instructional manual if protection against a failure mode cannot be adequately provided. System designers and end users are cautioned to review specific warnings or specifications found in instruction sheets or labels packed or attached and shipped with the products. Our policy is one of continuous research and development. We therefore reserve the right to amend without notice the specifications given in this document or our individual ‘Series’ data sheets.

WARRANTY INFORMATION

All valve series and other products manufactured or distributed by PCIPro are warranted by PCIPro to be free of defects in material and workmanship for a period of 1 year from the date of purchase or as the manufacturer warrants. PCIPro obligation under this warranty is limited to repair or replacement of the defec1ive product or refund of the purchase price paid solely at the discretion of PCIPro and provided such defective product is returned to PCIPro freight prepaid and upon examination by PCIPro such product is found defective. This warranty shall be void in the event that the product has been subject to misuse, misapplication, improper maintenance, modification or tampering. This warranty is expressed in lieu of all other warranties, expressed or implied from PCIPro representatives or employees. PCIPro reserves the right to change Valve and Brochure specifications without notice.

.
