SKU: CUSGAS

Cushion Gasket for Reflex & Transparent Gauge Glass

From $11.00

Inc GST
In Stock
Make an Enquiry

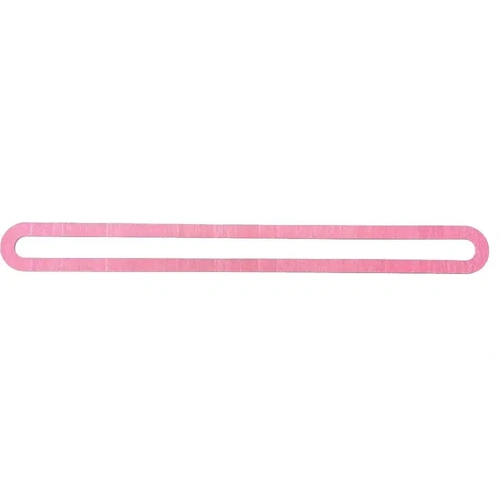

These cushion gaskets are used as the front seal between the gauge glass and the gauge retainer (case of the reflex or transparent gauge). The same gasket fits both reflex and transparent gauge glass.



Size Number Length Width Type A Width Type B Thickness
0 95mm 30mm 34mm 1.5mm
1 115mm 30mm 34mm 1.5mm
2 140mm 30mm 34mm 1.5mm
3 165mm 30mm 34mm 1.5mm
4 190mm 30mm 34mm 1.5mm
5 220mm 30mm 34mm 1.5mm
6 250mm 30mm 34mm 1.5mm
7 280mm 30mm 34mm 1.5mm
8 320mm 30mm 34mm 1.5mm
9 340mm 30mm 34mm 1.5mm

Sizes 0 to 9
Suits Reflex & Transaprent Gauge Glass
Types A & B

.
