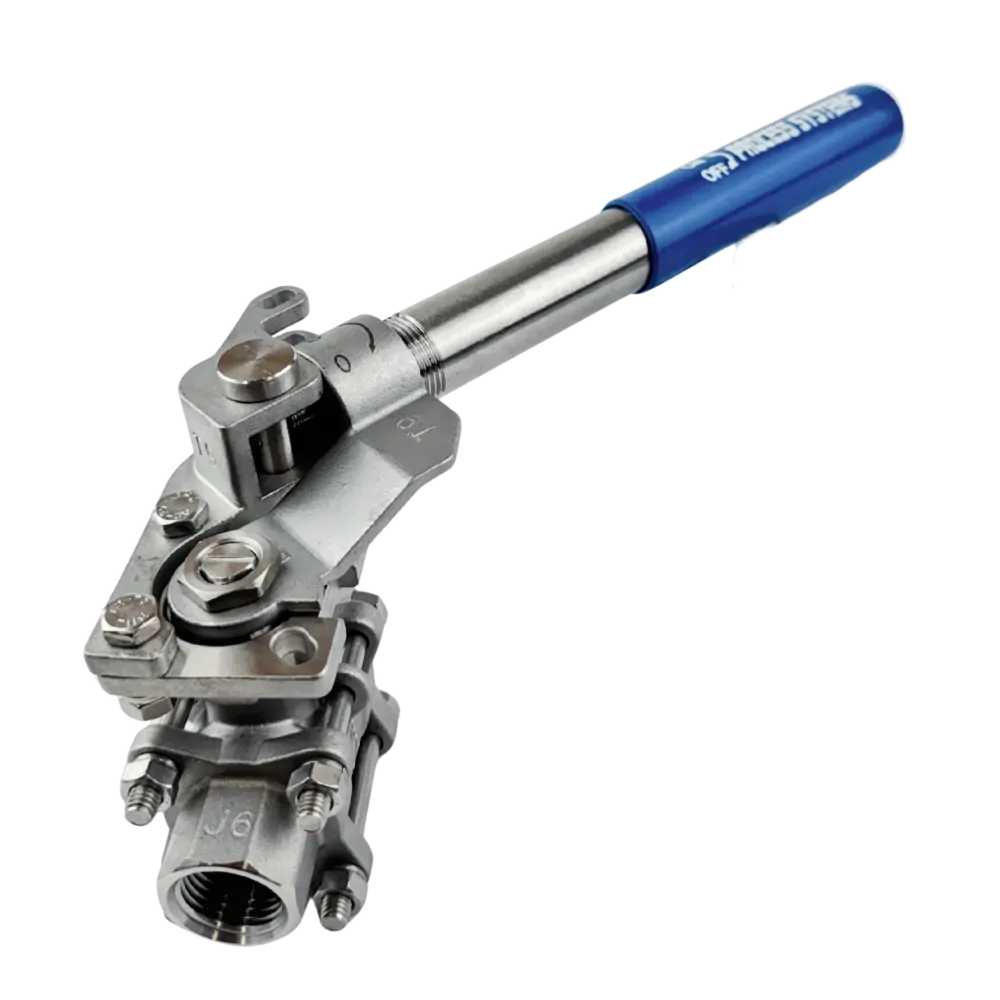

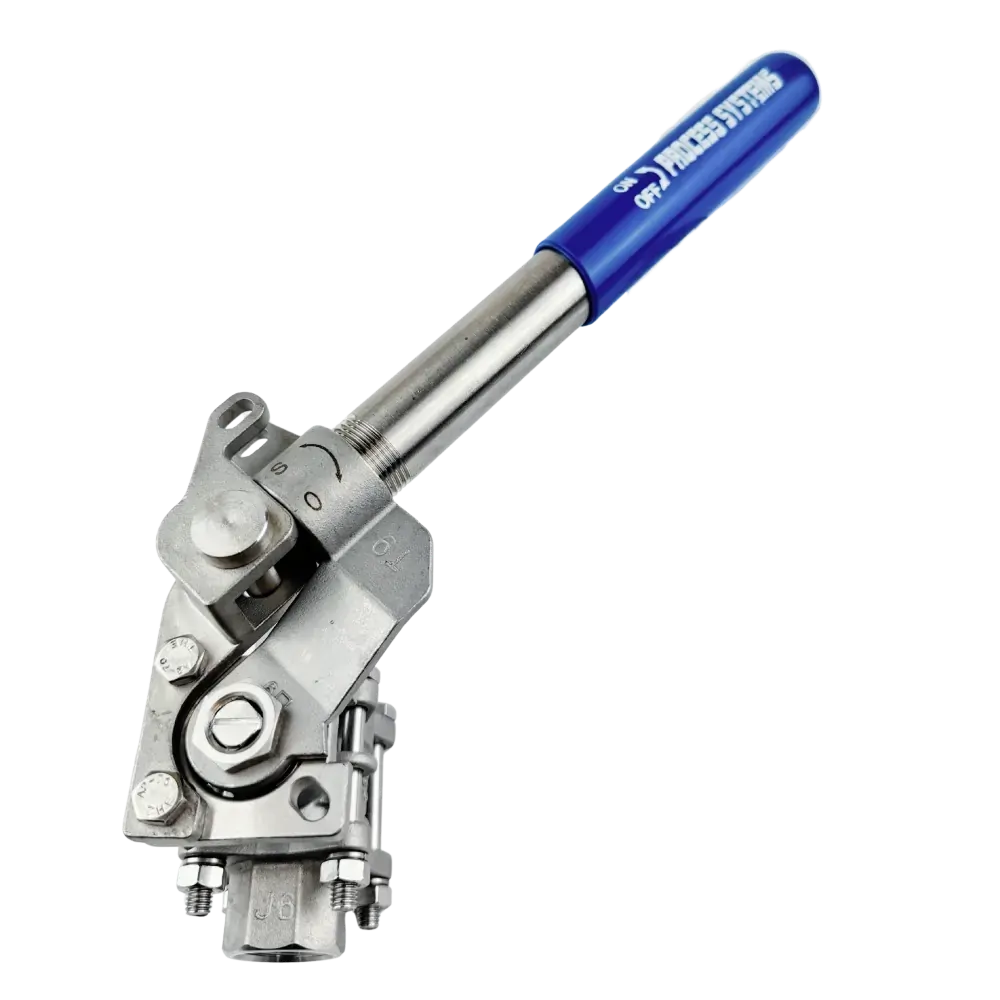

Dead Man Handle for Ball Valves

From $77.00

Inc GST
In Stock
Make an Enquiry
  • Dead Man Handle
  • Will spring back to its starting position once released
  • Will give fail safe function (either closed or open depending upon set up)
  • Used on quarter turn valves (mainly ball or butterfly valves)
  • Uses a tensioned spring to return



Dead Man Handle Dimensions

Model A L W Drive (square) ISO5211 PCD Bolt Hole Size
DMH-04 29 45 154 9 F04 42 6.5
DMH-06 31 56 192 11 F05 50 7.5
DMH-08 37 75 241 14 F07 70 9

All dimensions in mm unless shown otherwise.

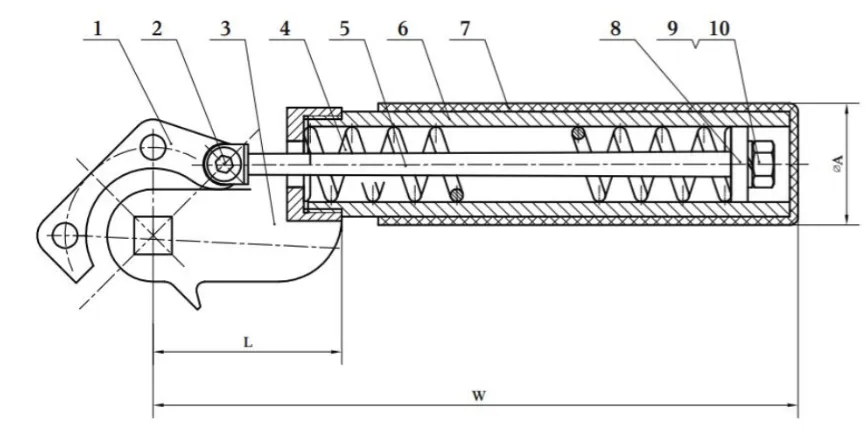

Dead Man Handle Construction

Number Part Material
1 Set Piece CF8
2 Inner Hex Screw SS304
3 Rocker Arm CR8
4 Spring Carbon Steel
5 Pull Rod SS304
6 Tubes SS304
7 Pad SS304
8 Packing Graphite
9 Spring Washer SS304
10 Nut SS304

Size 1/2" to 2" BSP
Body 316 Stainless Steel
Actuation Spring Return Handle

.
.
