Features:
Size 17mm to 36mm
Body Cast Steel
Function Star drive to Double 'D'
Factory Accredited CE, ISO 9001, TUV

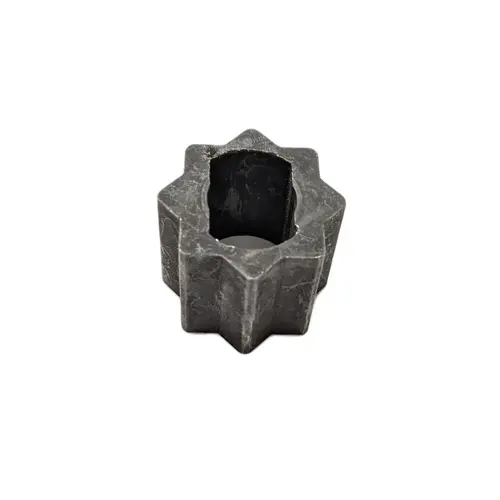

These "double D" to star drive adaptors are very usefule when adapting older style valves that have a "double d" drive to more modern actuators. Double D used to be a popular standard amoungst valve manufacturers but is rarely used now. There are still a lot of valves in circulation that do however utilise this drive style. These adaptors let you overcome this.

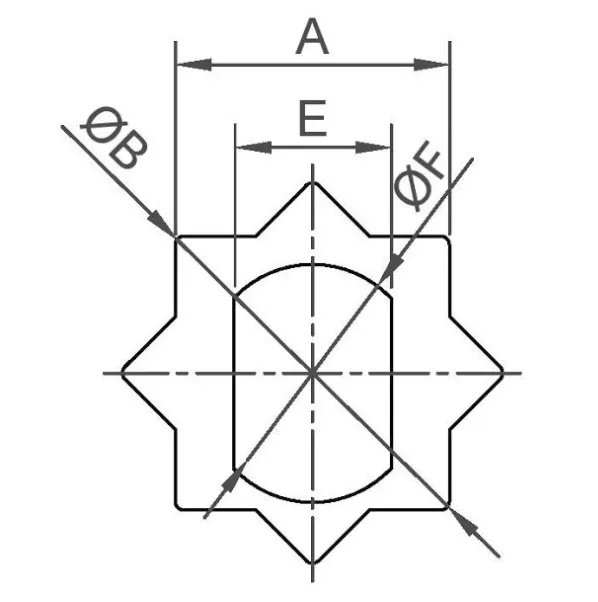

Model | A | E | F | B | Length |
---|---|---|---|---|---|
DT17-10 | 17 | 10 | 14.1 | 22.2 | 19 |
DT17-11 | 17 | 11 | 16.1 | 22.2 | 19 |
DT19-11 | 19 | 11 | 16.1 | 25.2 | 21 |
DT22-11 | 22 | 11 | 16.1 | 28.2 | 24 |
DT22-13 | 22 | 13 | 19.1 | 28.2 | 24 |
DT27-13 | 27 | 13 | 19.1 | 36.2 | 29 |
DT27-16 | 27 | 16 | 22.1 | 36.2 | 29 |
DT36-16 | 36 | 16 | 22.1 | 48.2 | 38 |
DT36-22 | 36 | 22 | 30.1 | 48.2 | 38 |
All dimensions are in mm unless shown otherwise.
