SKU: BFDSR

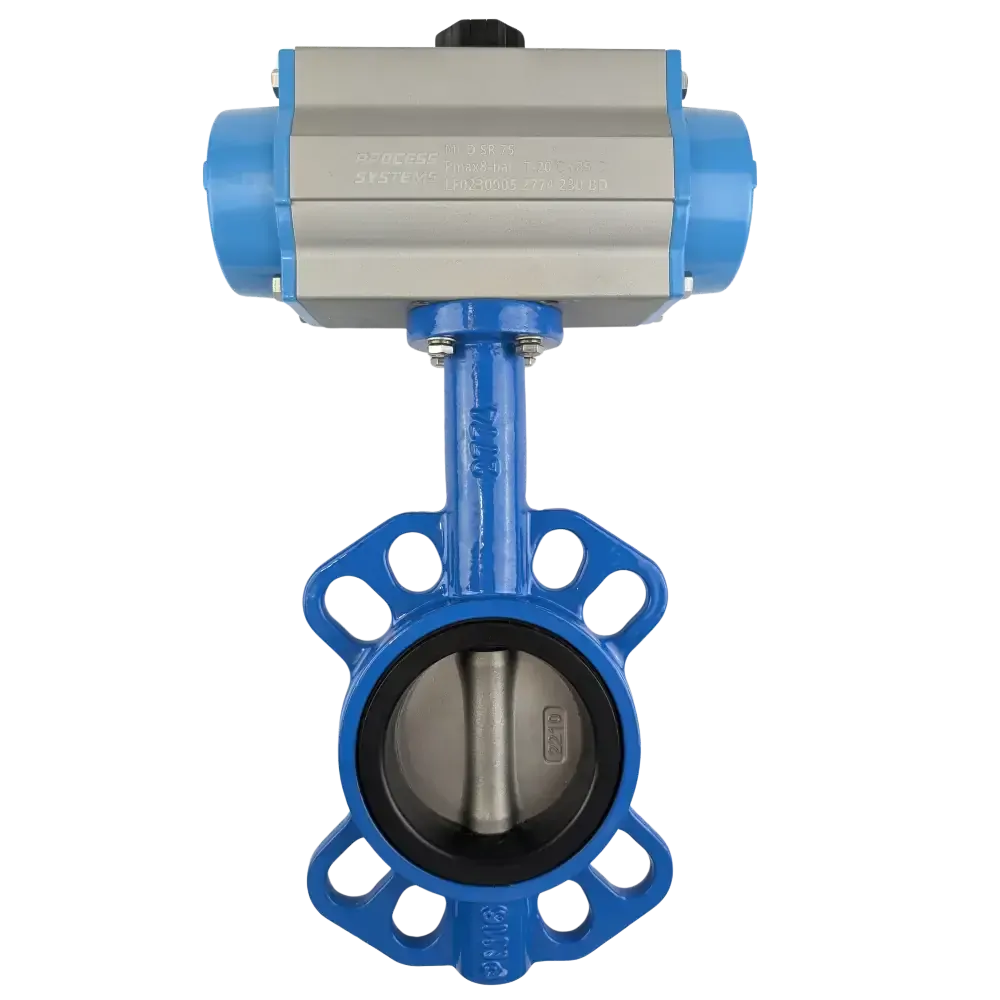

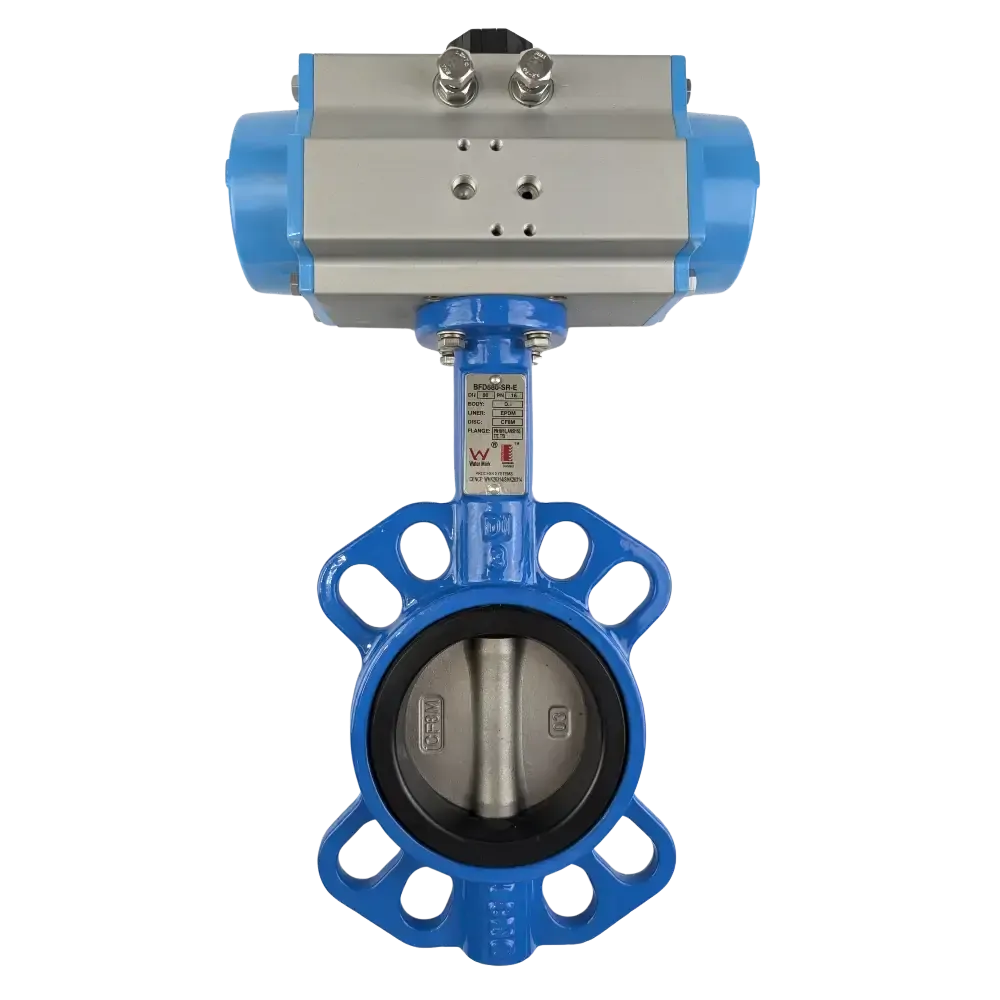

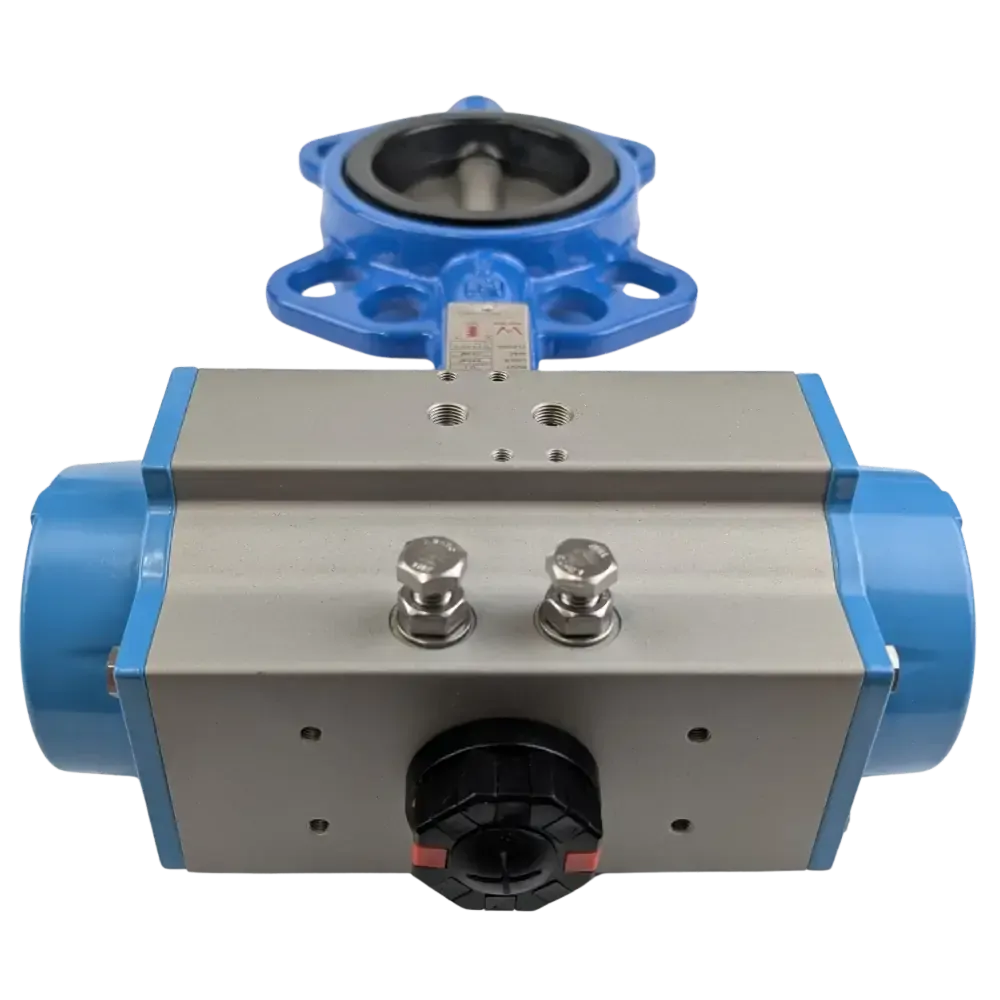

Ductile Iron Spring Return Butterfly Valve with 316 Stainless Steel Disc

From $231.00

Inc GST
In Stock
Make an Enquiry
  • Wafer Ductile Iron Spring Return Pneumatic Butterfly Valve
  • EPDM seat, 316 SS disc, splined shaft
  • Anodised Aluminium Pneumatic Actuator
  • Adjustable Stops, Namur Interface & Visual Indicator
  • Watermark & Standards Mark approved
Model Size (mm) Actuator Media Pressure Media Temperature Actuator Pressure Actuator Port Size
BFD550-SR-E 50 SR63 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/8"
BFD565-SR-E 65 SR63 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/8"
BFD580-SR-E 80 SR75 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/8"
BFD5100-SR-E 100 SR88 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/8"
BFD5125-SR-E 125 SR100 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/4"
BFD5150-SR-E 150 SR115 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/4"
BFD5200-SR-E 200 SR125 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/4"
BFD5250-SR-E 250 SR145 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/4"
BFD5300-SR-E 300 SR180 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/4"
BFD5350-SR-E 350 SR200 Vacuum to 10 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/4"
BFD5400-SR-E 400 SR240 Vacuum to 10 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/4"
BFD5450-SR-E 450 SR270 Vacuum to 10 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/4"
BFD5500-SR-E 500 SR270 Vacuum to 10 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/4"

For Sprung Open the ‘5’ in the product code changes to a ‘6’.

For sizes over 600mm or different seat material please contact us.

Model DN Actuator C C1 H1 H2 J K L M AS2129 Table D AS2129 Table E ANSI150
ØD1 n-Ød1 ØD1 n-Ød1 ØD1 n-Ød1
BFD550-SR-E 50 SR63 42 46.1 225 70 162 80.5 80 20 114 4-18 114 4-18 120.5 4-19
BFD565-SR-E 65 SR63 44.7 49.1 245 77 162 80.5 80 20 127 4-18 127 4-18 139.5 4-19
BFD580-SR-E 80 SR75 45.2 48.4 261 87 208 94.5 97 20 146 4-18 146 4-18 152.5 4-19
BFD5100-SR-E 100 SR88 52.1 55.3 305 112 245 109 116 20 178 4-18 178 4(8)-18 190.5 4(8)-19
BFD5125-SR-E 125 SR100 54.4 58.8 332 128 266 123 122 20 210 4(8)-18 210 4(8)-18 216 4(8)-22
BFD5150-SR-E 150 SR115 55.8 59.1 361 143 310 137 142 30 235 4(8)-18 235 4(8)-22 241.5 4(8)-22
BFD5200-SR-E 200 SR125 60.6 64.1 423 173 340 148 154 30 292 4(8)-18 292 4(8)-22 298.5 4(8)-22
BFD5250-SR-E 250 SR145 65.6 71.8 499 210 401 168.5 179 30 356 4(8)-22 356 4(12)-22 362 4(12)-25
BFD5300-SR-E 300 SR180 76.9 81 578 244 532 224 244 30 406 4(12)-22 406 4(12)-26 432 4(12)-25
BFD5350-SR-E 350 SR200 76.5 79.5 635 267 532 224 244 30 470 4(12)-26 470 4(12)-26 476 4(12)-29
BFD5400-SR-E 400 SR240 86.5 90 697 297 662 266 288 30 521 4(12)-26 521 4(12)-26 539.5 4(16)-29
BFD5450-SR-E 450 SR270 105.6 109 737 315 730 306 323 30 584 4(12)-26 584 4(12)-26 578 4(16)-32
BFD5500-SR-E 500 SR270 131.8 135 840 360 730 306 323 30 641 4(16)-26 641 4(16)-26 635 4(20)-32
BFD5600-SR-E 600 SR380 152 156 1006 444 774 335 352 30 756 4(16)-30 756 4(16)-33 749.5 4(20)-35

All dimensions in mm unless specified otherwise

Item Description Material
1 Body Ductile Iron (Fusion Bonded Epoxy Coated)
2 Seat EPDM
3 Shaft SS431
4 Disc CF8M
5 Bushing PTFE
6 O Ring NBR
  Pneumatic Actuator Anodized Aluminium

Size 50mm to 600mm
Body FBE Coated Ductile Iron
Seat EPDM or FKM
Disc 316 Stainless Steel
Pressure Up to 16 BAR (depending upon size)
Actuation Spring Return Pneumatic

BFDSR

Ductile Iron Spring Return Butterfly Valve with 316 Stainless Steel Disc

Features:

Size 50mm to 600mm
Body FBE Coated Ductile Iron
Seat EPDM or FKM
Disc 316 Stainless Steel
Pressure Up to 16 BAR (depending upon size)
Actuation Spring Return Pneumatic

Description:

  • Wafer Ductile Iron Spring Return Pneumatic Butterfly Valve
  • EPDM seat, 316 SS disc, splined shaft
  • Anodised Aluminium Pneumatic Actuator
  • Adjustable Stops, Namur Interface & Visual Indicator
  • Watermark & Standards Mark approved
Model Size (mm) Actuator Media Pressure Media Temperature Actuator Pressure Actuator Port Size
BFD550-SR-E 50 SR63 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/8"
BFD565-SR-E 65 SR63 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/8"
BFD580-SR-E 80 SR75 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/8"
BFD5100-SR-E 100 SR88 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/8"
BFD5125-SR-E 125 SR100 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/4"
BFD5150-SR-E 150 SR115 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/4"
BFD5200-SR-E 200 SR125 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/4"
BFD5250-SR-E 250 SR145 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/4"
BFD5300-SR-E 300 SR180 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/4"
BFD5350-SR-E 350 SR200 Vacuum to 10 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/4"
BFD5400-SR-E 400 SR240 Vacuum to 10 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/4"
BFD5450-SR-E 450 SR270 Vacuum to 10 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/4"
BFD5500-SR-E 500 SR270 Vacuum to 10 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/4"

For Sprung Open the ‘5’ in the product code changes to a ‘6’.

For sizes over 600mm or different seat material please contact us.

.

Ductile Iron Spring Return Butterfly Valve with 316 Stainless Steel Disc

BFDSR

Dimensions:

Model DN Actuator C C1 H1 H2 J K L M AS2129 Table D AS2129 Table E ANSI150
ØD1 n-Ød1 ØD1 n-Ød1 ØD1 n-Ød1
BFD550-SR-E 50 SR63 42 46.1 225 70 162 80.5 80 20 114 4-18 114 4-18 120.5 4-19
BFD565-SR-E 65 SR63 44.7 49.1 245 77 162 80.5 80 20 127 4-18 127 4-18 139.5 4-19
BFD580-SR-E 80 SR75 45.2 48.4 261 87 208 94.5 97 20 146 4-18 146 4-18 152.5 4-19
BFD5100-SR-E 100 SR88 52.1 55.3 305 112 245 109 116 20 178 4-18 178 4(8)-18 190.5 4(8)-19
BFD5125-SR-E 125 SR100 54.4 58.8 332 128 266 123 122 20 210 4(8)-18 210 4(8)-18 216 4(8)-22
BFD5150-SR-E 150 SR115 55.8 59.1 361 143 310 137 142 30 235 4(8)-18 235 4(8)-22 241.5 4(8)-22
BFD5200-SR-E 200 SR125 60.6 64.1 423 173 340 148 154 30 292 4(8)-18 292 4(8)-22 298.5 4(8)-22
BFD5250-SR-E 250 SR145 65.6 71.8 499 210 401 168.5 179 30 356 4(8)-22 356 4(12)-22 362 4(12)-25
BFD5300-SR-E 300 SR180 76.9 81 578 244 532 224 244 30 406 4(12)-22 406 4(12)-26 432 4(12)-25
BFD5350-SR-E 350 SR200 76.5 79.5 635 267 532 224 244 30 470 4(12)-26 470 4(12)-26 476 4(12)-29
BFD5400-SR-E 400 SR240 86.5 90 697 297 662 266 288 30 521 4(12)-26 521 4(12)-26 539.5 4(16)-29
BFD5450-SR-E 450 SR270 105.6 109 737 315 730 306 323 30 584 4(12)-26 584 4(12)-26 578 4(16)-32
BFD5500-SR-E 500 SR270 131.8 135 840 360 730 306 323 30 641 4(16)-26 641 4(16)-26 635 4(20)-32
BFD5600-SR-E 600 SR380 152 156 1006 444 774 335 352 30 756 4(16)-30 756 4(16)-33 749.5 4(20)-35

All dimensions in mm unless specified otherwise

.

Ductile Iron Spring Return Butterfly Valve with 316 Stainless Steel Disc

BFDSR

Construction:

Item Description Material
1 Body Ductile Iron (Fusion Bonded Epoxy Coated)
2 Seat EPDM
3 Shaft SS431
4 Disc CF8M
5 Bushing PTFE
6 O Ring NBR
  Pneumatic Actuator Anodized Aluminium

WARNING

These products are intended for use in industrial applications only. Do not use these products where pressures and temperatures can exceed those listed under ‘Technical Data’ and in our individual ‘Series’ data sheets. Before using these products with fluids other than these specified, for non-industrial applications, life-support systems, or other applications not within published specifications, consult PCIPro Through misuse, age, or malfunction, components used in industrial valve applications can fail in various modes. The system designer is warned to consider the failure modes of all component parts used in industrial valve applications and to provide adequate safeguards to prevent personal injury or damage to equipment in the event of such failure. System designers must provide a warning to the user in the system instructional manual if protection against a failure mode cannot be adequately provided. System designers and end users are cautioned to review specific warnings or specifications found in instruction sheets or labels packed or attached and shipped with the products. Our policy is one of continuous research and development. We therefore reserve the right to amend without notice the specifications given in this document or our individual ‘Series’ data sheets.
