Features:
Mounting Interface F05 to F16
Drive Size 7mm to 46mm
Body 2205 Duplex Stainless Steel
Function Valve Lockout

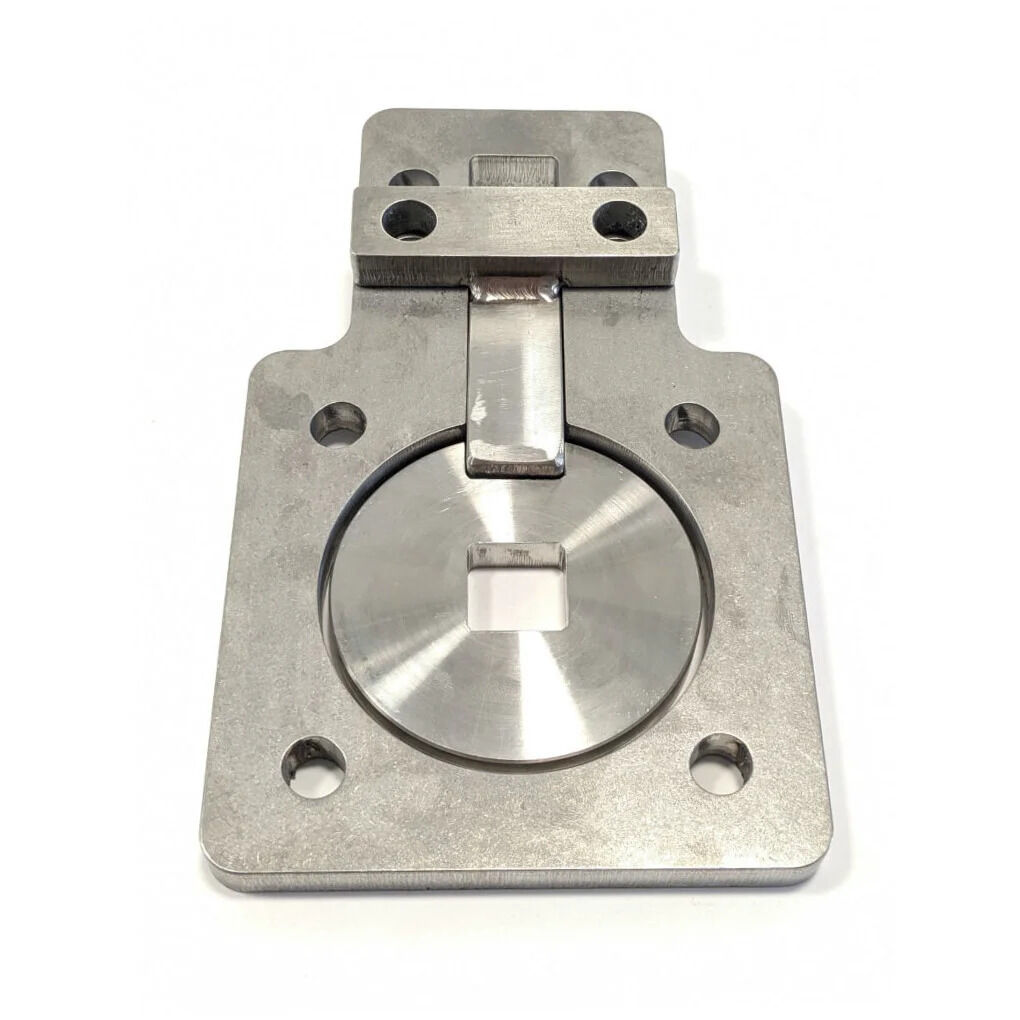

These Valve Safety Lockouts are made of pressure die cast 2205 Duplex Stainless Steel for maximum strength and corrosion resistance. They directly engage to the valve shaft when in a lock out position meaning that even if the valve is actuated it will not turn. This gives the highest level of safety to the user. They fit between the valve and actuator with a low profile so can be easily installed on a new actuated valve or retrofitted to an existing set up.
Model | W | W1 | L | L1 | B | E | F |
---|---|---|---|---|---|---|---|
VSLF05-07 | 7 | F05 | |||||
VSLF07-11 | 80 | 65 | 80 | 65 | 15 | 11 | F07 |
VSLF07-14 | 80 | 65 | 80 | 65 | 15 | 14 | F07 |
VSLF10-19 | 110 | 70 | 110 | 70 | 20 | 19 | F10 |
VSLF10-22 | 110 | 70 | 110 | 70 | 20 | 22 | F10 |
VSLF12-22 | 140 | 90 | 140 | 90 | 25 | 22 | F12 |
VSLF12-27 | 140 | 90 | 140 | 90 | 25 | 27 | F12 |
VSLF14-36 | 160 | 100 | 160 | 100 | 30 | 36 | F14 |
VSLF16-46 | 200 | 110 | 200 | 110 | 30 | 46 | F16 |
All dimensions in mm unless shown otherwise.
