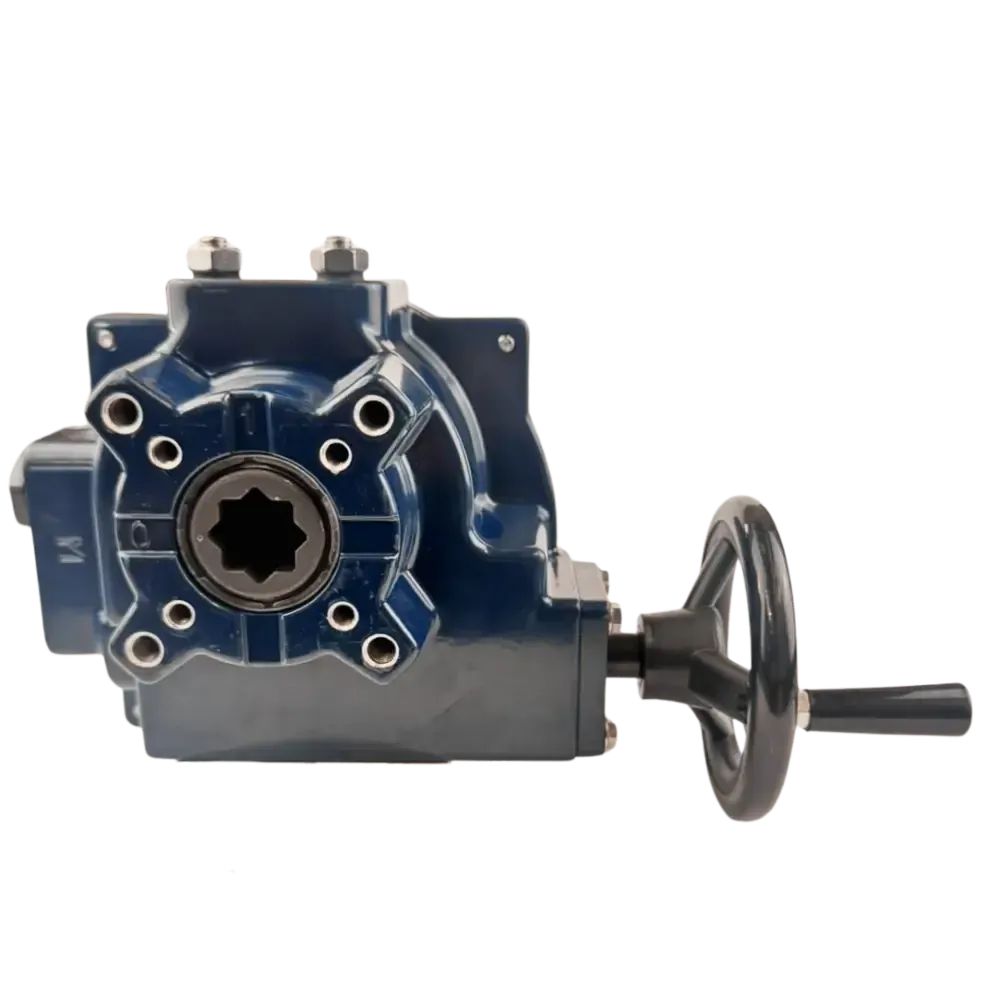

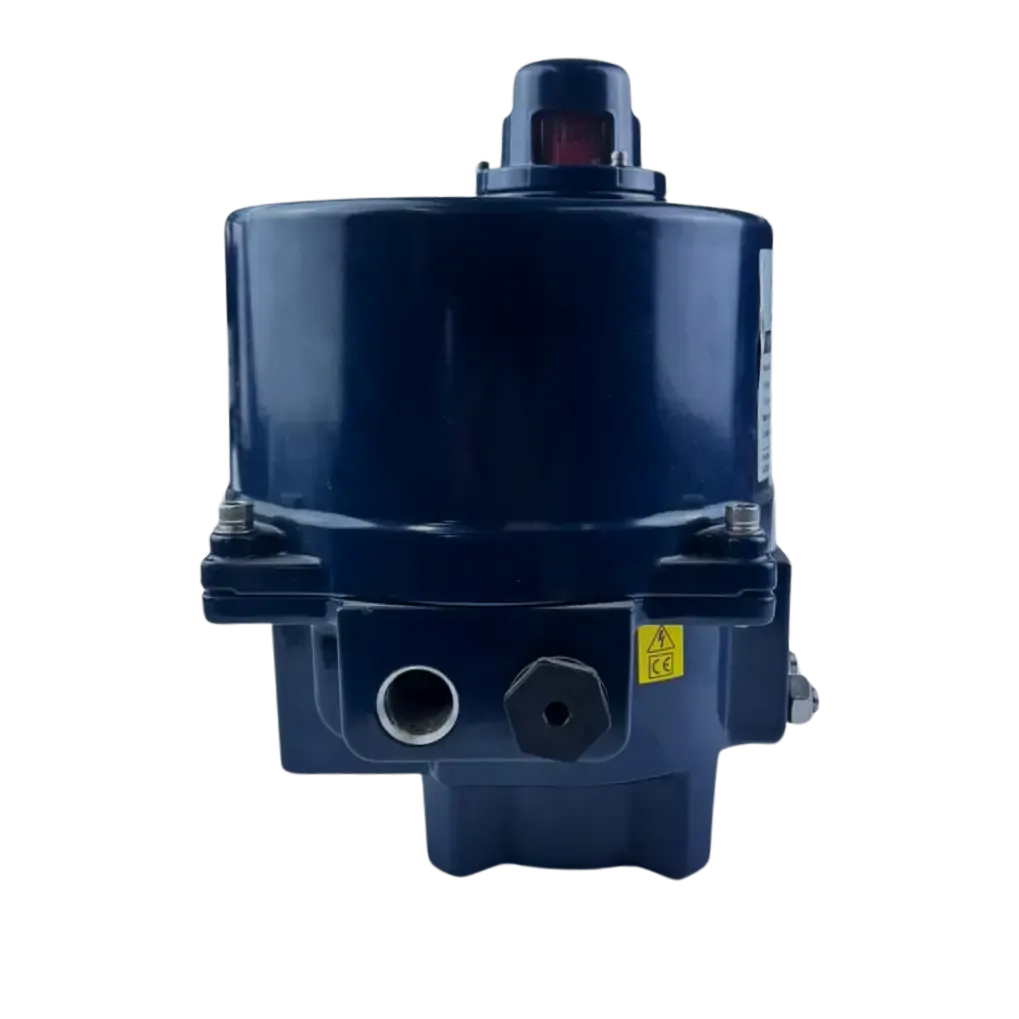

Electric Actuator

From $181.50

Inc GST
In Stock
Make an Enquiry

These electric actuators are quarter turn (90 degree turn) and designed predominateley for the use on ball or butterfly valves (or any quarter turn valve). They are IP67 rated, have a visual indicator, all standard with a manual override and come with an extra set of voltage free limit switches (will allow you end of stroke feedback). The cable connection is made through two M20x1.5 connections.

Model Torque (Nm) Time (seconds) (AMP) 12v DC (AMP) 24v AC/DC (AMP) 110v AC (AMP) 240v AC (AMP) 415v AC
AC DC Run Start Duty Run Start Duty Run Start Duty Run Start Duty Run Start Duty
OM-1 35 13 15 1.9 2 75% 1.1 1.1 75% 0.6 0.6 30%* 0.3 0.4 30%* - - -
OM-A 50 24 20 1.3 1.5 75% 0.8 0.9 75% 0.6 0.6 30%* 0.3 0.4 30%* - - -
OM-2 90 17 15 3.4 5.2 75% 2.2 4.5 75% 1 1.8 30%* 0.5 0.8 30%* 0.4 0.9 30%
OM-3 150 26 22 4.4 4.9 75% 2.4 5 75% 1.2 1.8 30%* 1 1.2 30%* 0.4 0.9 30%
OM-4 400 18 16 16.1 16.1 75% 8.5 9.2 75% 1.9 3.8 30%* 1.1 2 30%* 0.6 1.4 30%
OM-5 500 25 22 14.1 13.5 75% 7.5 9 75% 2 3.8 30%* 1.1 2 30%* 0.6 1.4 30%
OM-6 650 31 28 12.3 12.5 75% 7 8.5 75% 2.1 3.8 30%* 1.1 2 30%* 0.6 1.4 30%
OM-7 1000 55 46 - - 75% 6.8 7.8 75% 3.1 8.5 30%* 1.4 4.1 30%* 0.5 1.3 30%
OM-8 1500 55 46 25 26 75% 8.1 8 75% 3.3 9 30%* 1.6 4.4 30%* 0.6 1.2 30%
OM-9 2000 70 58 - - 50% 8.8 11 50% 3.3 5.8 30%* 2.1 3.8 30%* 0.7 2 30%
OM-10 2500 70 58 28 60 50% 11.8 11 50% 4 6.5 30%* 2.3 4 30%* 0.7 2 30%
OM-11 3000 70 58 - - 50% 15.1 11 50% 4.5 6.5 30%* 2.5 4.2 30%* 0.7 2 30%
OM-12 3500 70 58 - - 50% 17.8 12 50% 4 8 30%* 2.4 4.4 30%* 0.8 2.6 30%
OM-13 4500         50%     50% 4.2 8 30%* 2.4 4.8 30%* 0.8 2.6 30%



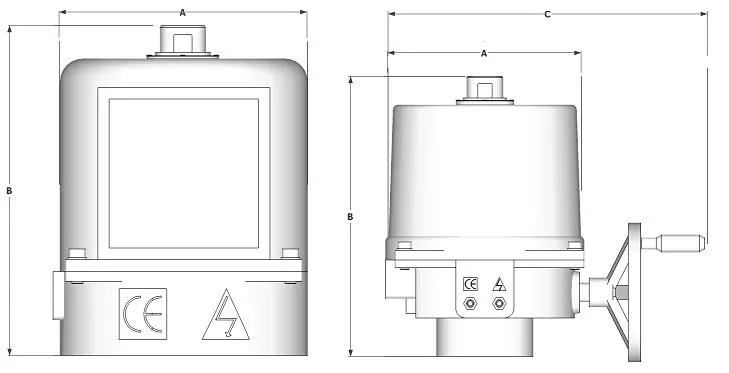

90 degree turn electric actuator

                                              0M-A & 0M-1                                                          0M-2 & Above


Model A (mm) B (mm) C (mm) ISO 5211 Mounting Female Drive End Stops Manual Override
OM-1 108 155 - FO3 / FO5 14mm Star NO Spanner Drive
OM-A 130 200 - F05/FO7 17mm Star NO Allen Key Drive
OM-2 200 290 330 FO7/F10 22mm Star Yes Hand wheel
OM-3 200 290 330 FO7/F10 22mm Star Yes Hand wheel
OM-4 234 315 380 F10/F12 36mm Star Yes Hand wheel
OM-5 234 315 380 F10/F12 36mm Star Yes Hand wheel
OM-6 234 315 380 F10/F12 36mm Star Yes Hand wheel
OM-7 234 420 520 F14 36mm Star Yes Hand wheel
OM-8 234 420 520 F14 36mm Star Yes Hand wheel
OM-9 260 590 540 F16 O 75mm Keyway Yes Hand wheel
OM-10 260 590 540 F16 O 75mm Keyway Yes Hand wheel
OM-11 260 590 540 F16 O 75mm Keyway Yes Hand wheel
OM-12 260 590 540 F16 O 75mm Keyway Yes Hand wheel
OM-13       F16/F25 O 75mm Keyway Yes Hand wheel

Torque 35 to 3500 NM
Function Drive Open/Drive Close, 90 degree turn
Body Powder Coated Die Cast Aluminium
Voltage 12vDC, 24vDC, 24v AC, 110vAC, 240vAC
Rating IP67

Others Also Bought

0M

Electric Actuator

Features:

Torque 35 to 3500 NM
Function Drive Open/Drive Close, 90 degree turn
Body Powder Coated Die Cast Aluminium
Voltage 12vDC, 24vDC, 24v AC, 110vAC, 240vAC
Rating IP67

Description:

These electric actuators are quarter turn (90 degree turn) and designed predominateley for the use on ball or butterfly valves (or any quarter turn valve). They are IP67 rated, have a visual indicator, all standard with a manual override and come with an extra set of voltage free limit switches (will allow you end of stroke feedback). The cable connection is made through two M20x1.5 connections.

Model Torque (Nm) Time (seconds) (AMP) 12v DC (AMP) 24v AC/DC (AMP) 110v AC (AMP) 240v AC (AMP) 415v AC
AC DC Run Start Duty Run Start Duty Run Start Duty Run Start Duty Run Start Duty
OM-1 35 13 15 1.9 2 75% 1.1 1.1 75% 0.6 0.6 30%* 0.3 0.4 30%* - - -
OM-A 50 24 20 1.3 1.5 75% 0.8 0.9 75% 0.6 0.6 30%* 0.3 0.4 30%* - - -
OM-2 90 17 15 3.4 5.2 75% 2.2 4.5 75% 1 1.8 30%* 0.5 0.8 30%* 0.4 0.9 30%
OM-3 150 26 22 4.4 4.9 75% 2.4 5 75% 1.2 1.8 30%* 1 1.2 30%* 0.4 0.9 30%
OM-4 400 18 16 16.1 16.1 75% 8.5 9.2 75% 1.9 3.8 30%* 1.1 2 30%* 0.6 1.4 30%
OM-5 500 25 22 14.1 13.5 75% 7.5 9 75% 2 3.8 30%* 1.1 2 30%* 0.6 1.4 30%
OM-6 650 31 28 12.3 12.5 75% 7 8.5 75% 2.1 3.8 30%* 1.1 2 30%* 0.6 1.4 30%
OM-7 1000 55 46 - - 75% 6.8 7.8 75% 3.1 8.5 30%* 1.4 4.1 30%* 0.5 1.3 30%
OM-8 1500 55 46 25 26 75% 8.1 8 75% 3.3 9 30%* 1.6 4.4 30%* 0.6 1.2 30%
OM-9 2000 70 58 - - 50% 8.8 11 50% 3.3 5.8 30%* 2.1 3.8 30%* 0.7 2 30%
OM-10 2500 70 58 28 60 50% 11.8 11 50% 4 6.5 30%* 2.3 4 30%* 0.7 2 30%
OM-11 3000 70 58 - - 50% 15.1 11 50% 4.5 6.5 30%* 2.5 4.2 30%* 0.7 2 30%
OM-12 3500 70 58 - - 50% 17.8 12 50% 4 8 30%* 2.4 4.4 30%* 0.8 2.6 30%
OM-13 4500         50%     50% 4.2 8 30%* 2.4 4.8 30%* 0.8 2.6 30%
.

Electric Actuator

0M

Dimensions:



90 degree turn electric actuator

                                              0M-A & 0M-1                                                          0M-2 & Above


Model A (mm) B (mm) C (mm) ISO 5211 Mounting Female Drive End Stops Manual Override
OM-1 108 155 - FO3 / FO5 14mm Star NO Spanner Drive
OM-A 130 200 - F05/FO7 17mm Star NO Allen Key Drive
OM-2 200 290 330 FO7/F10 22mm Star Yes Hand wheel
OM-3 200 290 330 FO7/F10 22mm Star Yes Hand wheel
OM-4 234 315 380 F10/F12 36mm Star Yes Hand wheel
OM-5 234 315 380 F10/F12 36mm Star Yes Hand wheel
OM-6 234 315 380 F10/F12 36mm Star Yes Hand wheel
OM-7 234 420 520 F14 36mm Star Yes Hand wheel
OM-8 234 420 520 F14 36mm Star Yes Hand wheel
OM-9 260 590 540 F16 O 75mm Keyway Yes Hand wheel
OM-10 260 590 540 F16 O 75mm Keyway Yes Hand wheel
OM-11 260 590 540 F16 O 75mm Keyway Yes Hand wheel
OM-12 260 590 540 F16 O 75mm Keyway Yes Hand wheel
OM-13       F16/F25 O 75mm Keyway Yes Hand wheel
